Faxitron CT Specimen Radiography System User Guide
Chapter 3: Components, Controls, and Indicators
5081-9544 Revision 004 Page 25
3: Components, Controls, and Indicators
3.1 System Components

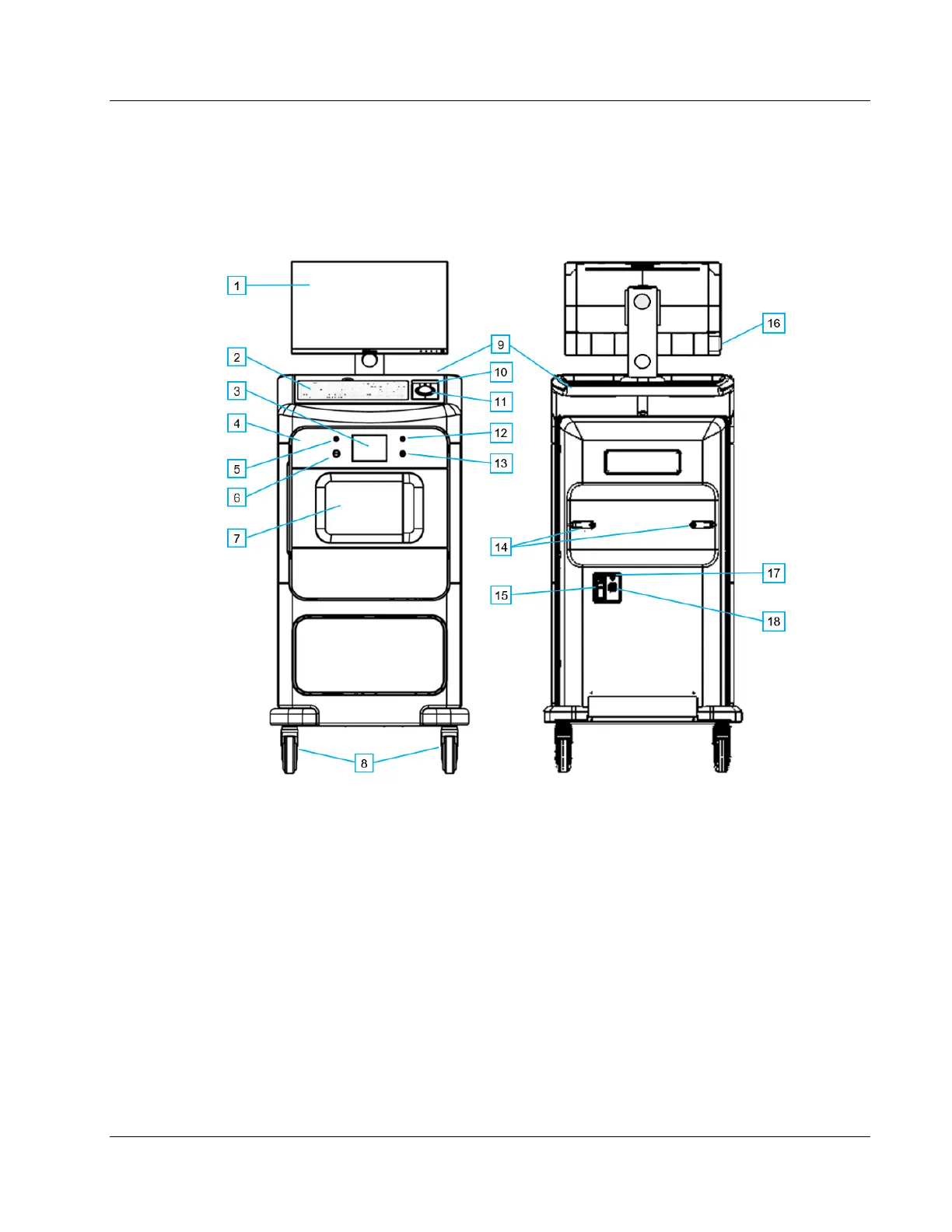

Figure 9: System Components
Figure Legend
1. Image Display Monitor
2. Keyboard
3. Touch Screen
4. Control Panel
5. X-Ray ON Light
6. Stop Button
7. X-Ray/Imaging Chamber
8. Caster
9. Console Handle
10. USB Port
11. Trackball
12. Power ON Light
13. Power On/Off Button
14. Cord Management Hooks
15. System Power Switch and Power Cord
Connection
16. 2X USB Ports
17. Computer Reset Button
18. Ethernet Port
