6.5.1 Image Screen - 2D Mode
After an image is acquired in 2D mode two orthogonal images will appear on the screen
as shown below.
Orthogonal images are two images taken at right angle to each other. For example, if the
sample is placed correctly the left image will be Latero-Medial (LM) for the left breast
and Medio-Lateral (ML) for the right breast. The right image will be Caudal Cranial (CC).

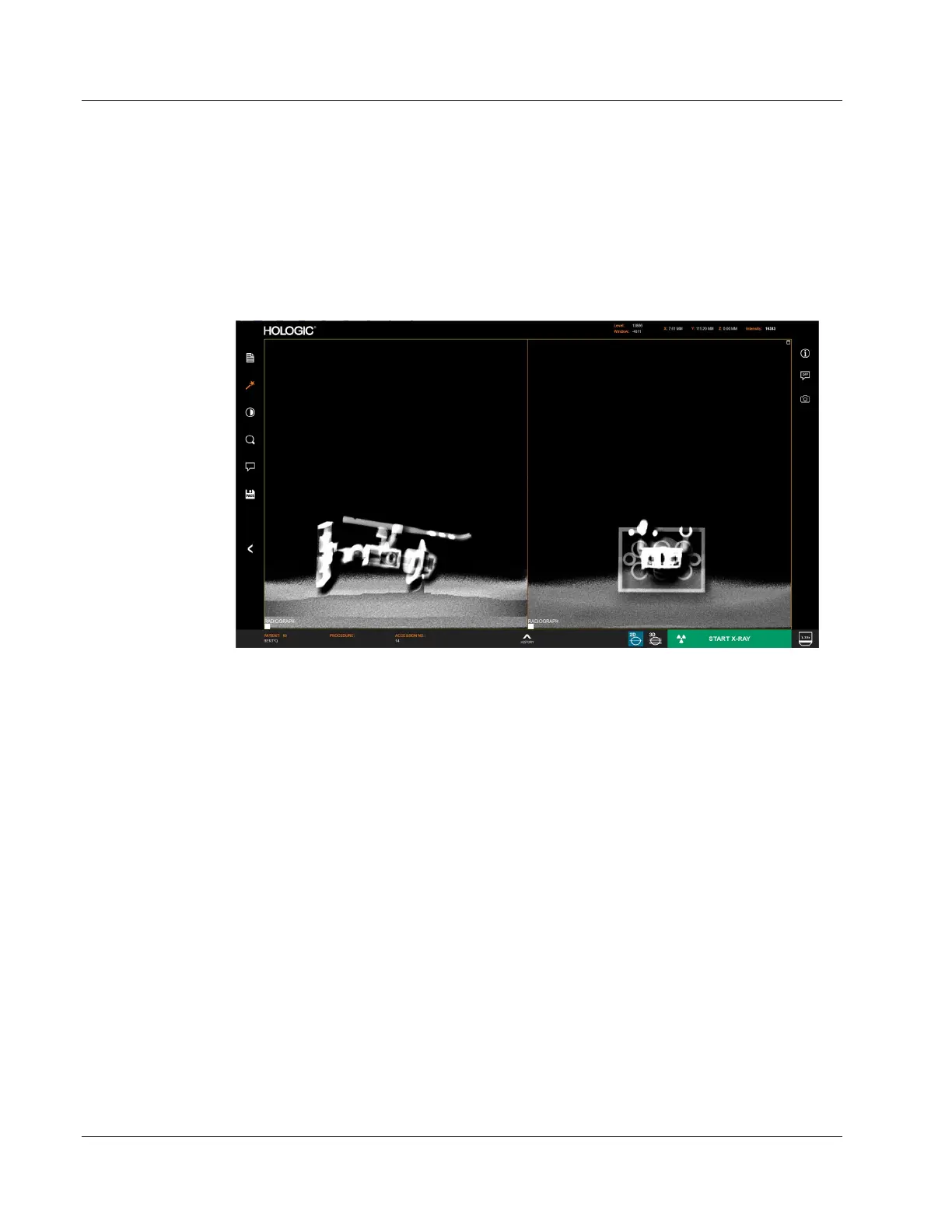

Figure 47: 2D Image Screen
