Honeywell C300 User Manual

7. C300 Controller Operation
7.13. C300 operating behaviors
200
Series 8 C300 Controller User's Guide
Honeywell
R500
April 2017
A number of tabs on the configuration forms include parameters to indicate status and

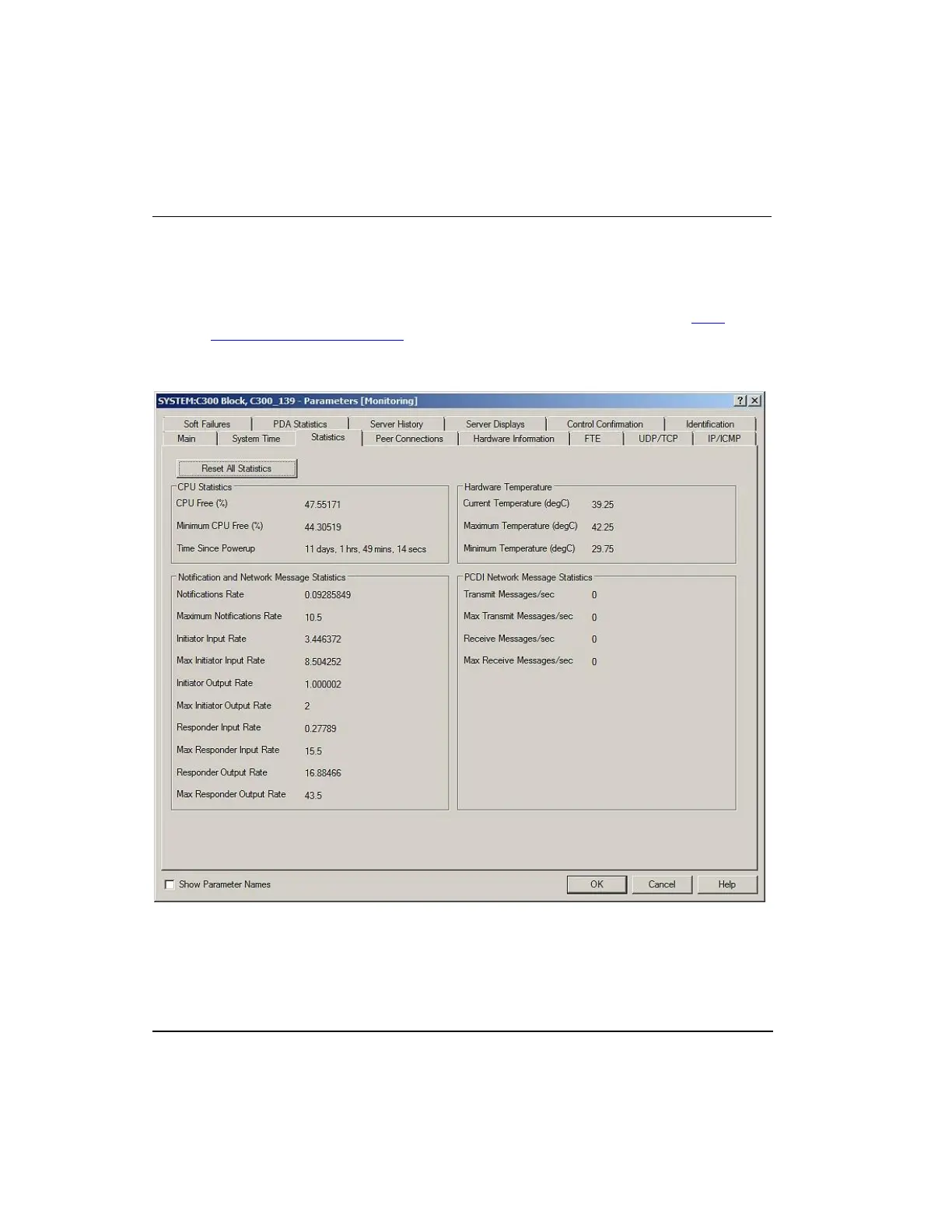

numerous operating statistics. For example, the figure below shows the Statistics tab for a
C300 Controller which includes CPU utilization and network messaging. Other tabs
include statistics on FTE communications and Peer connections. Refer to the C300
Configuration Form Reference for more details on the parameters available on the
configuration form tabs.
Figure 8 C300 Controller configuration form

Honeywell C300 Specifications

General

Memory	512 MB RAM, 512 MB Flash
Type	Process Controller
Communication Ports	Ethernet, Serial
Power Supply	24V DC
Inputs	Analog and Digital
Outputs	Analog and Digital
Communication	Ethernet, Serial, HART
Redundancy	Supported (Hot Standby)
