Parts List

12/00 UDC2300 Controller Product Manual 115

11 Parts List

11.1 Exploded View

Introduction

Figure 11-1 is an exploded view of the UDC2300 Controller. Each part is labeled with a

key number. The part numbers are listed by key number in Table 11-1.

Parts not shown are listed in Table 11-2.

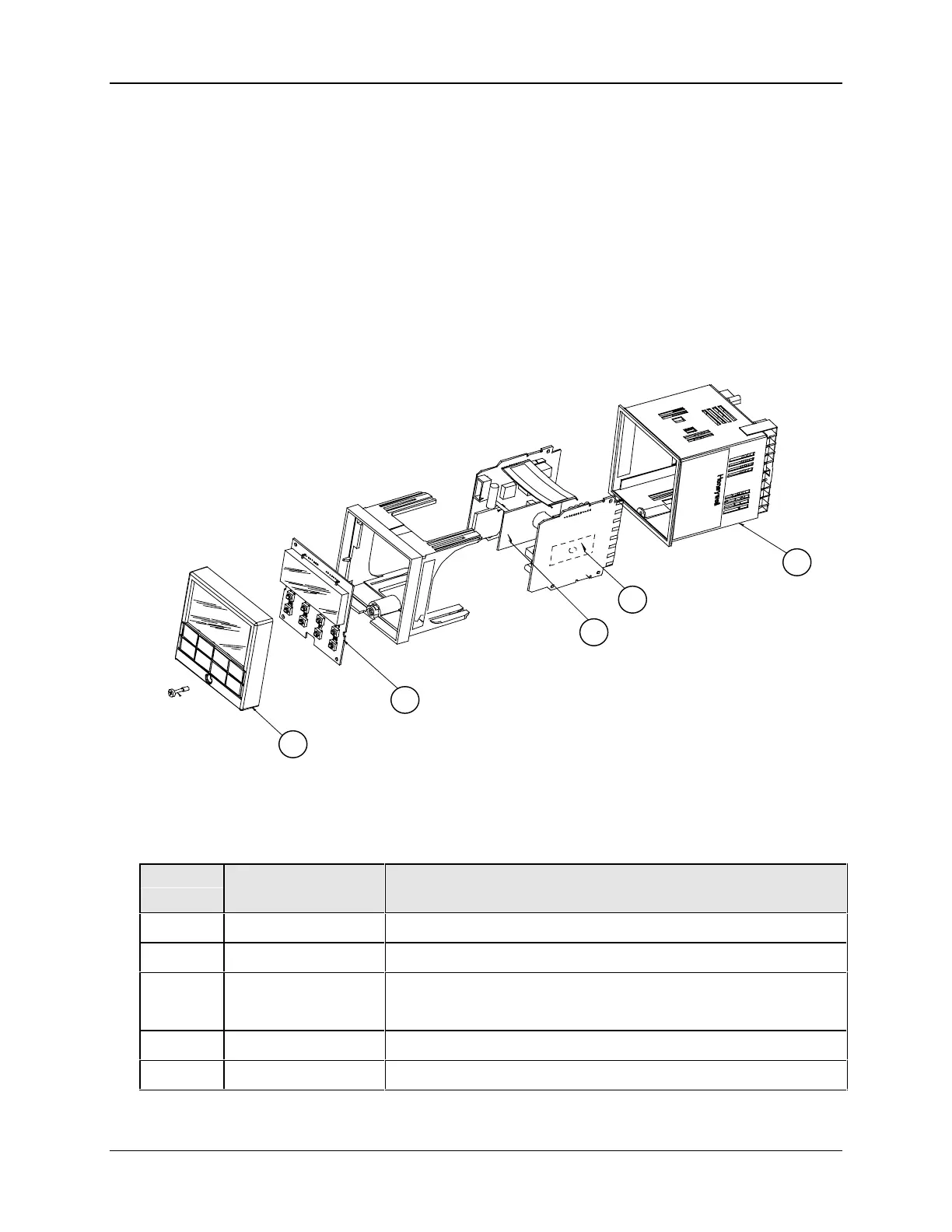

Figure 11-1 UDC2300 Exploded View

Table 11-1 Parts Identification

Key

Number

Part Number Description

1 30756667-503 Bezel Assembly (Gray)

2 51309766-501 Display/Keyboard

3 51309782-501

51309831-501

Auxiliary Output/Digital Input PWA

RS-422/485 Communications PWA

4 51309796-501 Current Output PWA

5 51404896-501 Case Assembly (includes 30755050-001 Mounting Kit)
