Honeywell UDC2300 User Manual

Installation
12/00 UDC2300 Controller Product Manual 19
2 Wire Transmitter
Configure:
A2S1TYPE = NONE
A2S2TYPE = NONE
_
+
8 +
7 -
9 –
10+
INPUT 1
OUTPUT 2

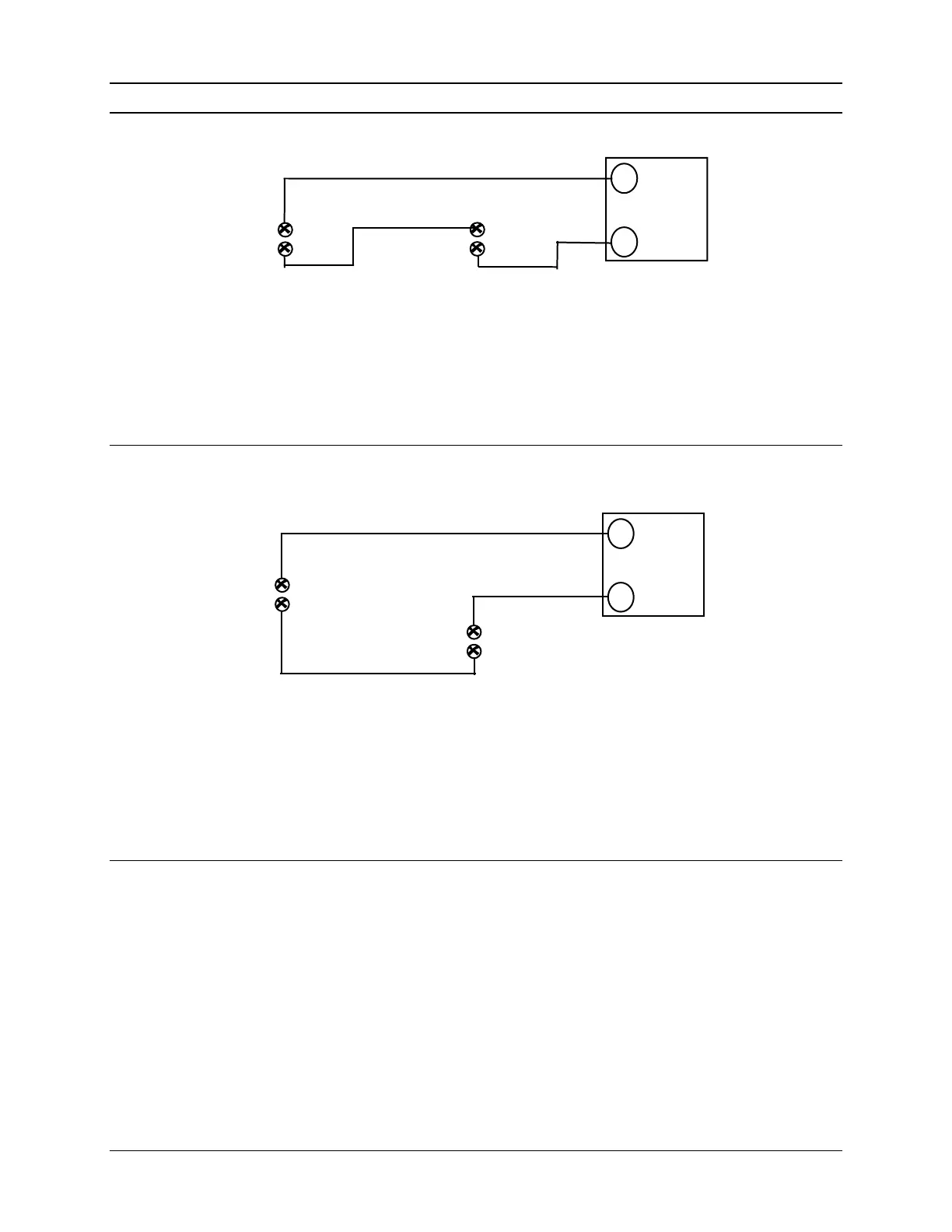

Figure 2-17 Transmitter Power for 4-20 mA — 2 wire Transmitter Using Open
Collector Alarm 2 Output
(Model DC230B-XT-XX-XX-XXXXXXX-XX-X)
2 Wire Transmitter
Configure:
AUXOUT = OUT
Auxiliary Output Calibration
ZEROVAL = 4095
SPANVAL = 4095
_
+
8 +
7 -
13 +
14 -
INPUT 1
AUXOUT
Figure 2-18 Transmitter Power for 4-20 mA — 2 Wire Transmitter
Using Auxiliary Output
(Model DC230B-XX-2X-XX-XXXXXXX-XX-X)
