Input Calibration
12/00 UDC2300 Controller Product Manual 85

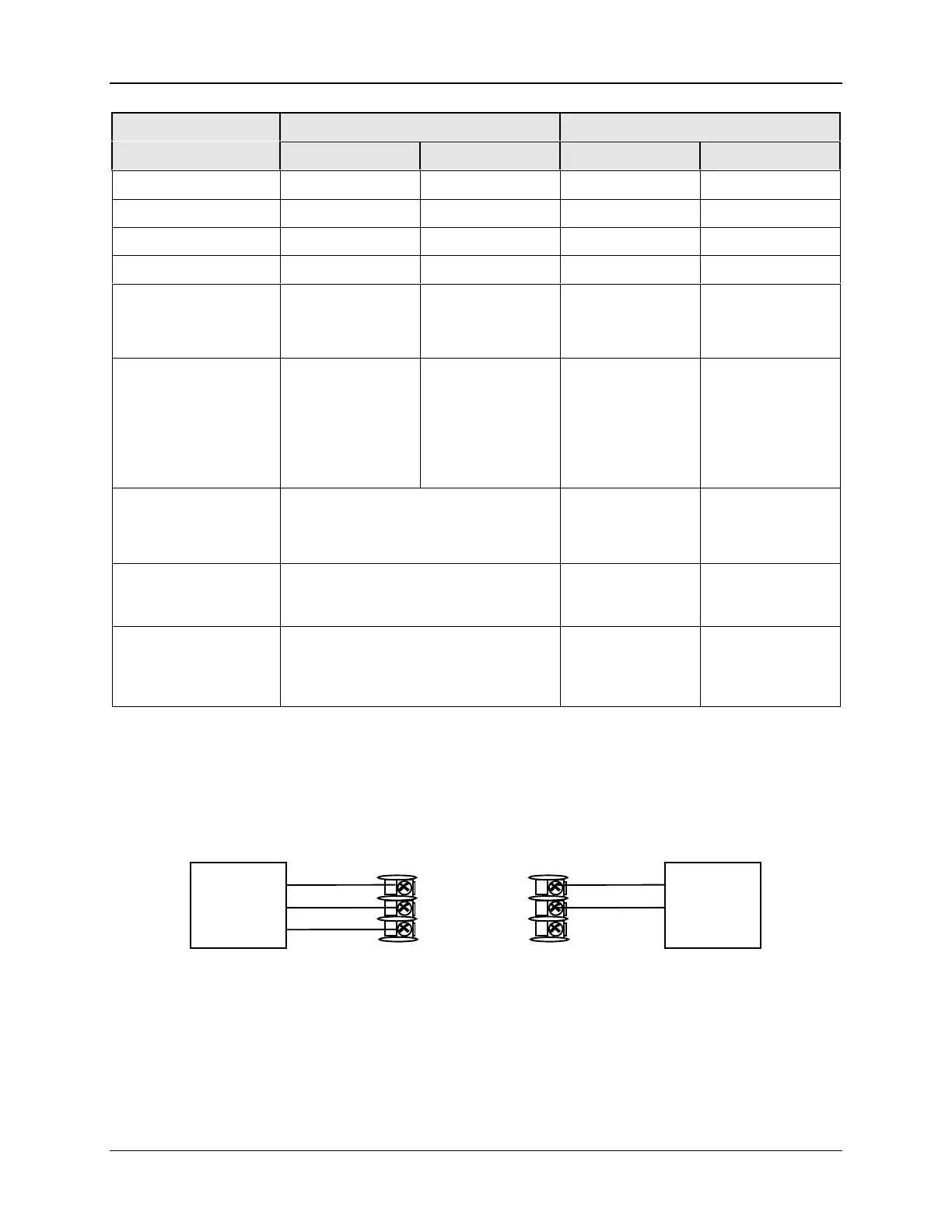

PV Input Range Range ValuesSensor Type
°F °C 0 % 100 %
T
-300 to 700 –184 to371 –5.341 mV 19.097 mV
T (low)
-200 to 500 –129 to260 –4.149 mV 12.574 mV
W5W26
0 to 4200 –18 to2315 –0.234 mV 37.075 mV
W5W26 (low)
0 to 2240 –18 to1227 –0.234 mV 22.283 mV
Radiamatic
Type RH
Type RI
0 to 3400
0 to 3200
–18 to1871
–18 to1760
0.00 mV
0.00 mV
57.12 mV
60.08 mV
RTD
(IEC Alpha=0.00385)
100 ohms
100 ohms (low)
200 ohms
500 ohms
-300 to 1200
-300 to 300
-300 to 900
-300 to 900
–184 to649
–184 to149
–184 to482
–184 to482
25.18 ohms
25.18 ohms
50.36 ohms
125.90 ohms
274.96 ohms
156.90 ohms
549.92 ohms
1374.80 ohms
Linear
Milliamps
(impedance – 249 Ω)
4 to 20 mA
0 to 20 mA
4.00 mA
0.00 mA
20.00 mA
20.00 mA
Millivolts
0 to 10 mV
0 to 50 mV
0 to 100 mV
0.00 mV
0.00 mV
0.00 mV
10.00 mV
50.00 mV
100.00 mV
Volts
1 to 5 Volts
0 to 2 Volts
0 to 5 Volts
0 to 10 Volts
1.00 Volts
0.00 Volts
0.00 Volts
0.00 Volts
5.00 Volts
2.00 Volts
5.00 Volts
10.00 Volts
8.3 Preliminary Information
Disconnect the Field Wiring
Tag and disconnect any field wiring connected to the input (#1 or #2) terminals on the
rear of the controller.
24869
+
_
R
Input 1
Connections
8
7
6
+
_
Input 2
Connections
15
16
17
Figure 8-1 Input 1 and Input 2 Wiring Terminals
