Hardware options installation 75
1.

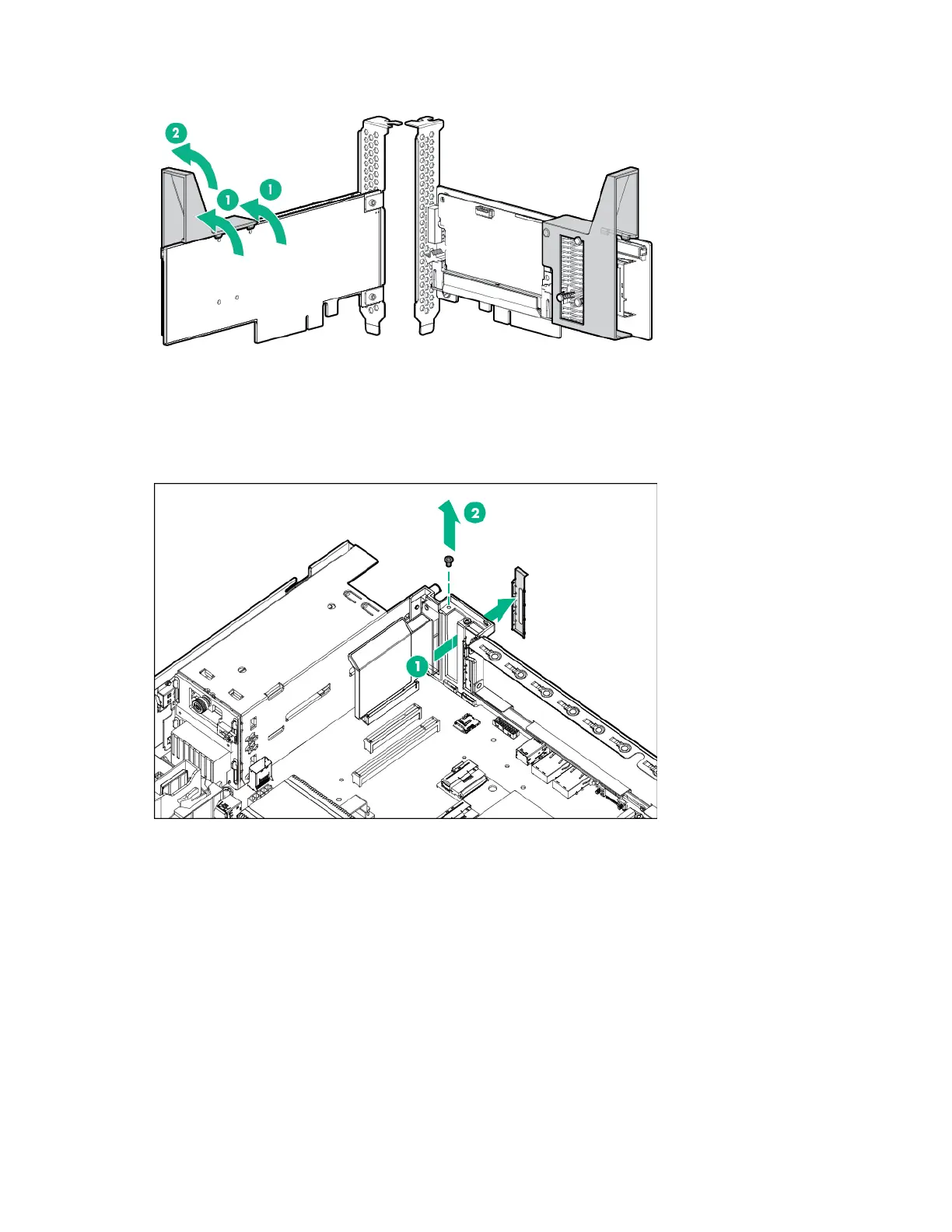

Remove the air scoop from the storage controller.
2. Remove the full-height bracket from the storage controller and attach the low-profile bracket.
For more information, see the documentation that ships with the option.
3. If you intend to use an FBWC module, install the module on the storage controller ("Installing the
storage controller and FBWC module options" on page 92).
4. Remove the onboard PCI expansion slot cover.
