Hardware options installation 76
5.

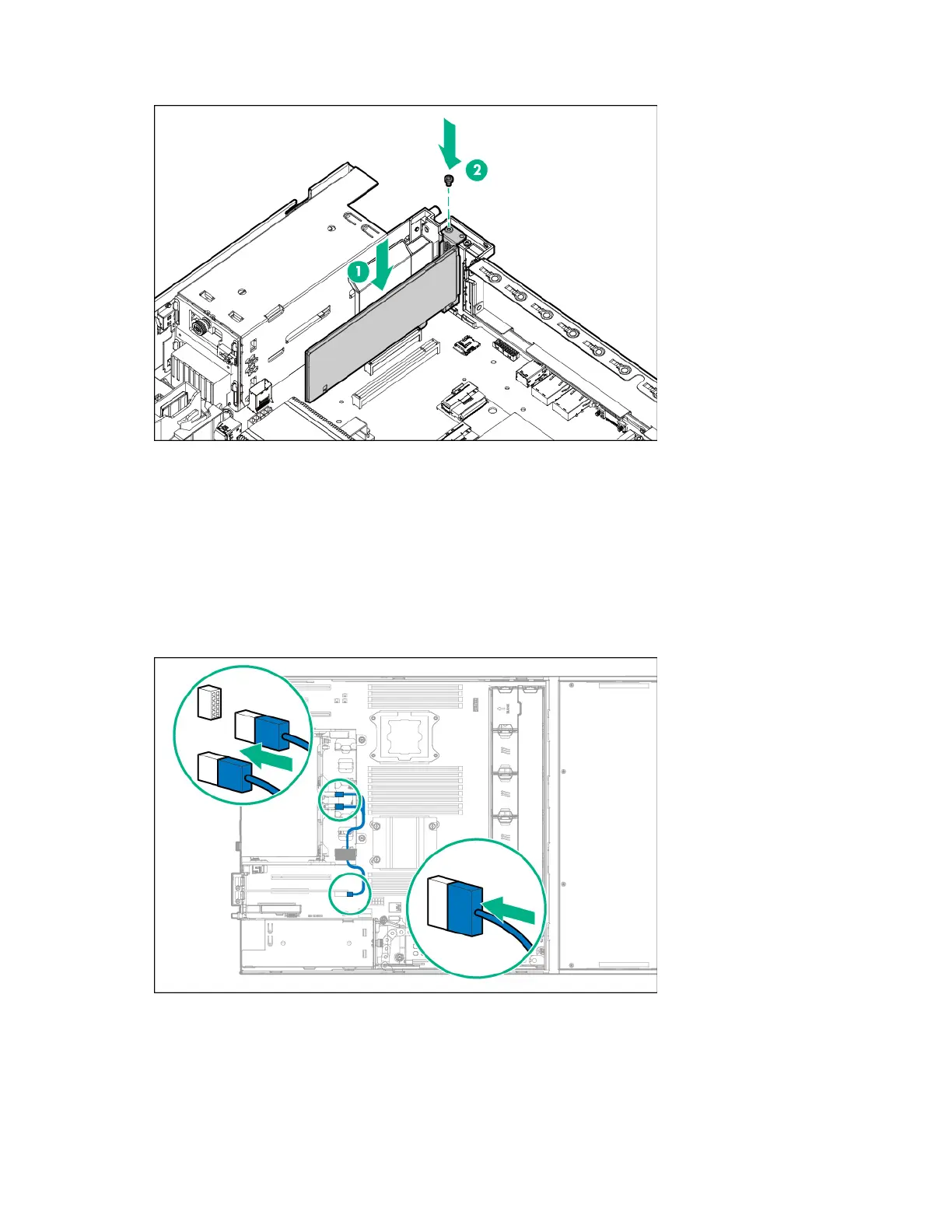

Install the storage controller.
6. Remove the plastic connector covers from the Mini-SAS Y-cable.
7. Remove the cable tie securing the split ends of the Mini-SAS Y-cable.
8. Connect the split ends of the Mini-SAS Y-cable to ports 1 and 2 of the rear drive backplane.
The connector marked as P1 must be connected to port 1 and the connector marked as P2 must be
connected to port 2.
9. Connect the common end of the Mini-SAS Y-cable to the storage controller.
10. Depending on the location of the storage controller, secure the Mini-SAS Y-cable in the rear drive
cage cable clip or position it on top of the air baffle.
o P440 controller Mini-SAS Y-cable connections from the PCIe expansion slot 1 or 2
