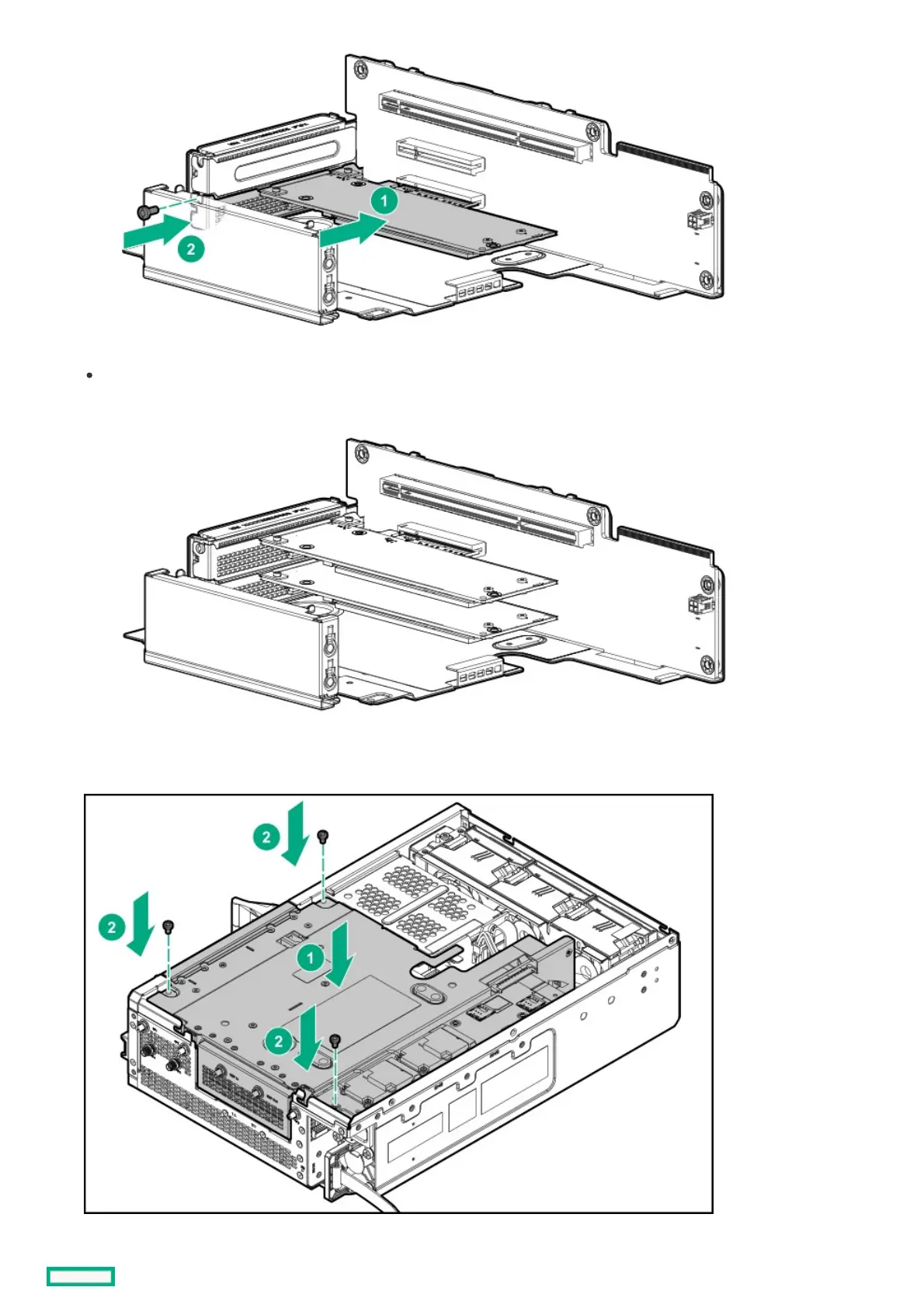

M.2 adapter installed in slot 1 and 2

9. Install the PCI cage in the server, and secure it with three T-15 screws.

10. Connect all the necessary cables.

Installing the NVMe M.2 SSD option 72
