3. Transfer the duplicate part/serial numbers label from the CPU module to the CPU's heat sink:
a. Remove the duplicate tear-away label that lists the part and serial numbers from the CPU
module.

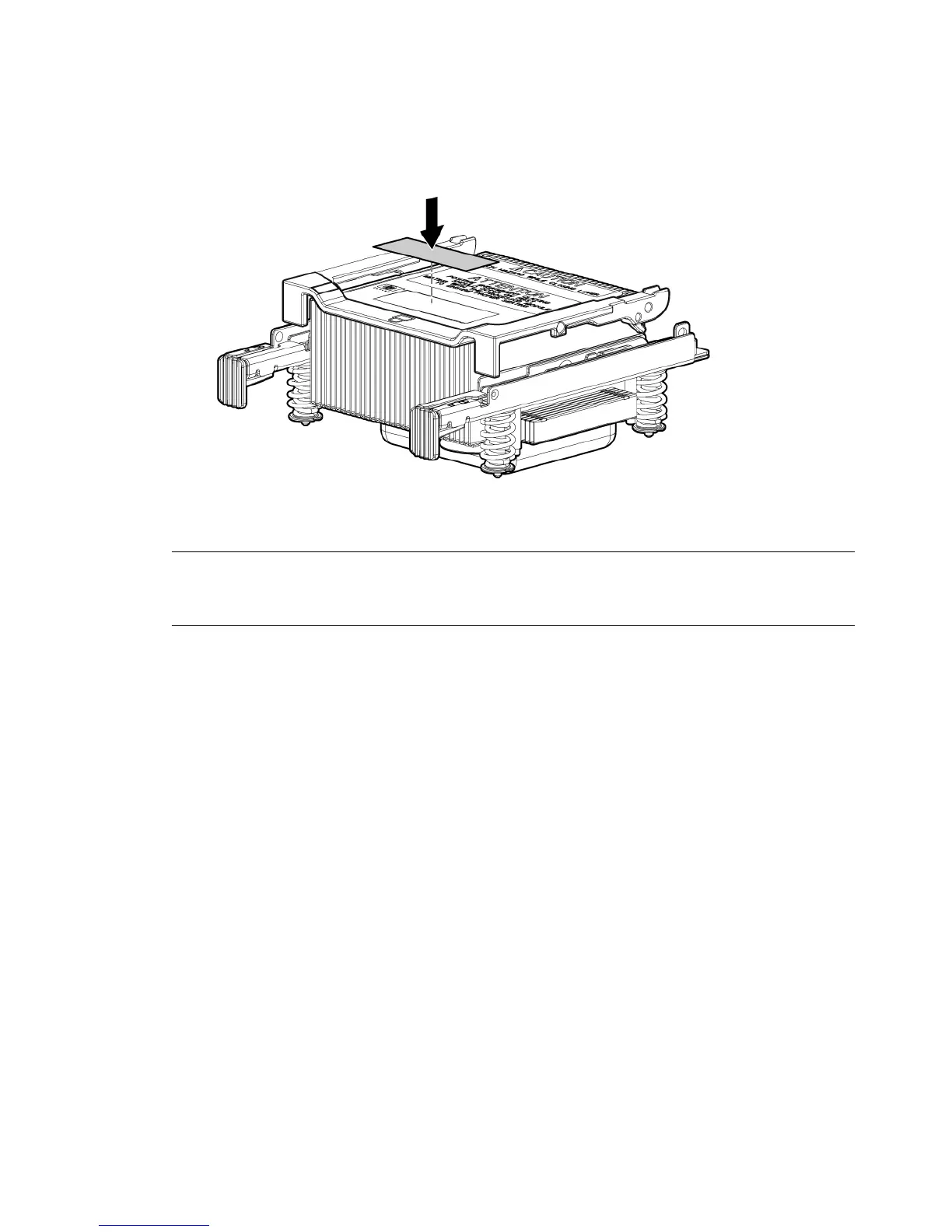

b. Place the label on the top of the heat sink.
4. Install the CPU over the load posts.
NOTE: Ensure pin 1, indicated on the empty socket with an embossed triangle, matches the
pin 1 marker on the CPU module, the chamfered corner of its attached voltage regulator heat
sink.
5. Remove the heat sink cover.
40 Installing the server
