Table 5-2 Disk Drive LED Definitions
DescriptionColorLED
Drive/Slot normal (drive present)GreenStatus LED
No power to hard disk driveOff
Drive access under hard drive control.Flashing greenActivity LED
DVD/DVD-R/DVD-RW Drive LED Indicators
The server is delivered with one DVD drive (DVD-R and DVD-RW optional). Each of these
devices has one activity LED as shown and described in Figure 5-3 and Table 5-3.

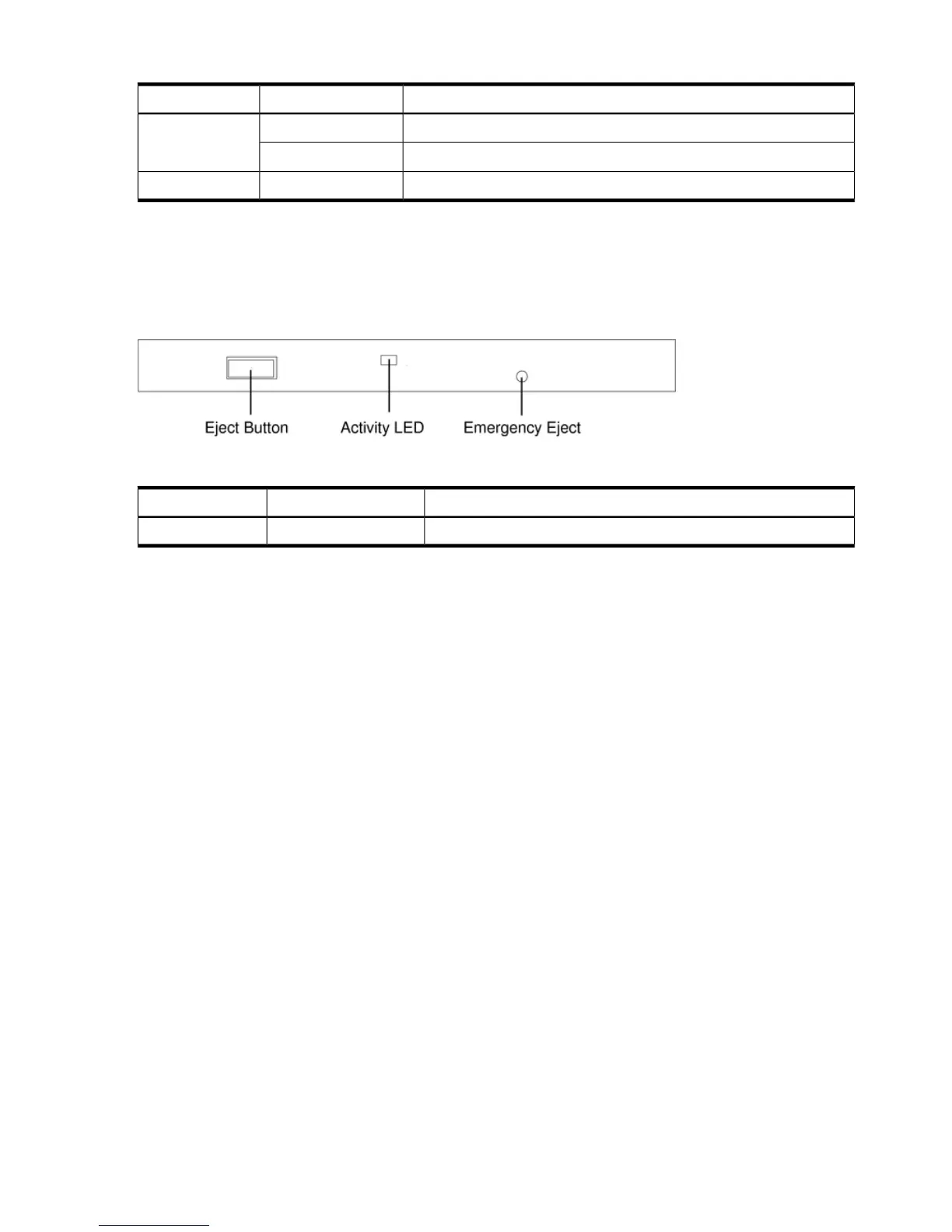

Figure 5-3 DVD Drive
Table 5-3 DVD Drive LED Definitions
DescriptionStatusLED
Drive access under hard drive controlFlashing greenActivity LED
QuickFind Diagnostic Panel LED Indicators
The QuickFind diagnostic panel is located under the top cover and is attached to the top of the
power supply cage. Figure 5-4 and Table 5-4 show and describe the status of the various LEDs
and what is wrong with the indicated component.
