6. Replace the front bezel. See “Replacing the Front Bezel” (page 34).
7. If rack mounted, slide the server into the rack until it stops. See “Inserting the Server into
the Rack” (page 32).
Removing and Replacing Core I/O Cards
The HP Integrity rx4640 server has two I/O card slots that are dedicated for core I/O cards. They
are labelled slots 1 and 2 on the I/O baseboard. Figure 4-30 shows the location of the core I/O
slots on the I/O baseboard.
PCI Slot Locations and Configurations
The following describes configuration requirements for slots 1 and 2:
• PCI slot 1 is dedicated for use by a SCSI HBA card. Slot 1 is not hot-plug capable. Additional
PCI expansion cards may not be placed in slot 1.
• PCI slot 2 is dedicated for use by a LAN card. Slot 2 is not hot-plug capable. Additional PCI
expansion cards may not be placed in slot 2.

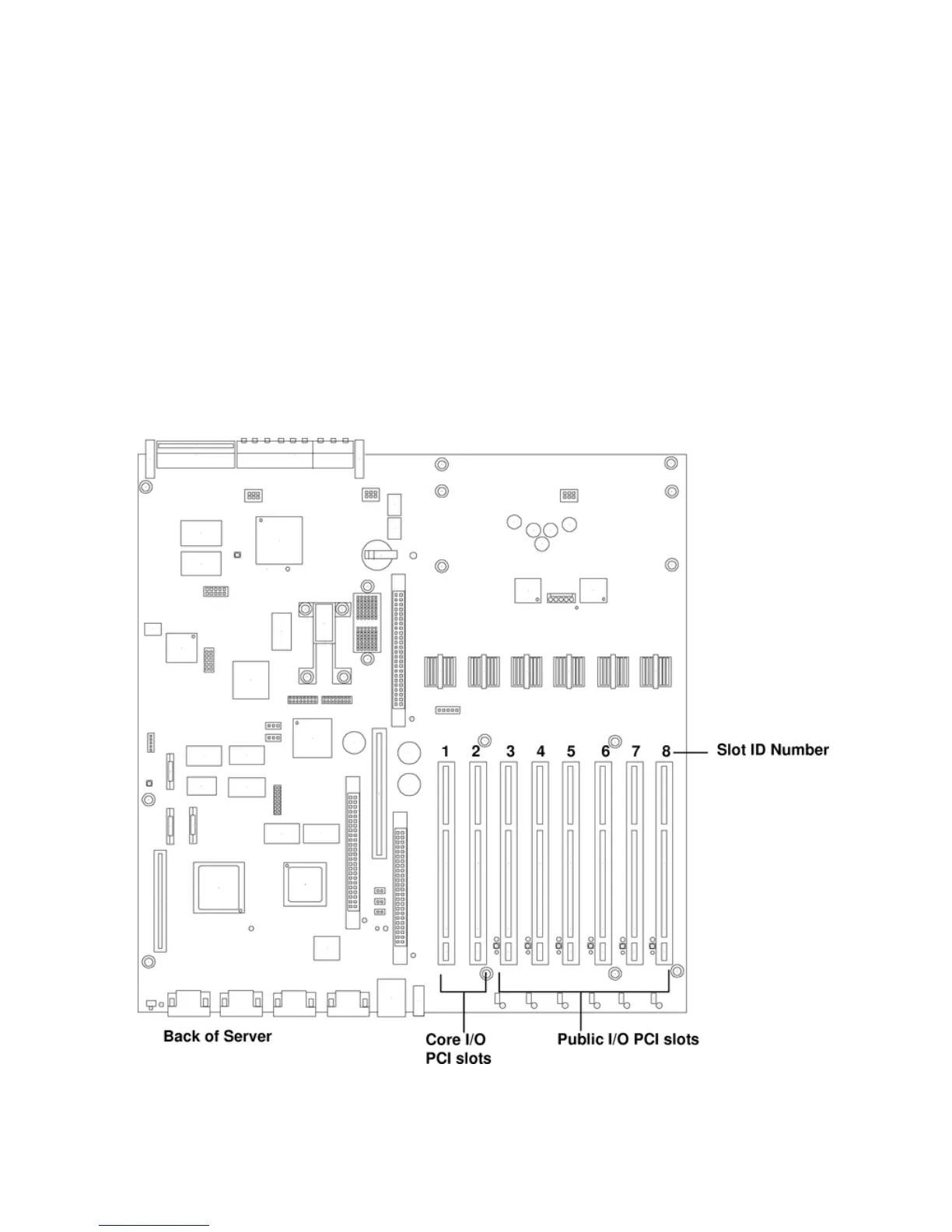

Figure 4-30 Slot ID Numbering
Removing and Replacing the SCSI Core I/O Card
The HP Integrity rx4640 server has two I/O card slots that are dedicated for core I/O cards.
72 Removing and Replacing Components
