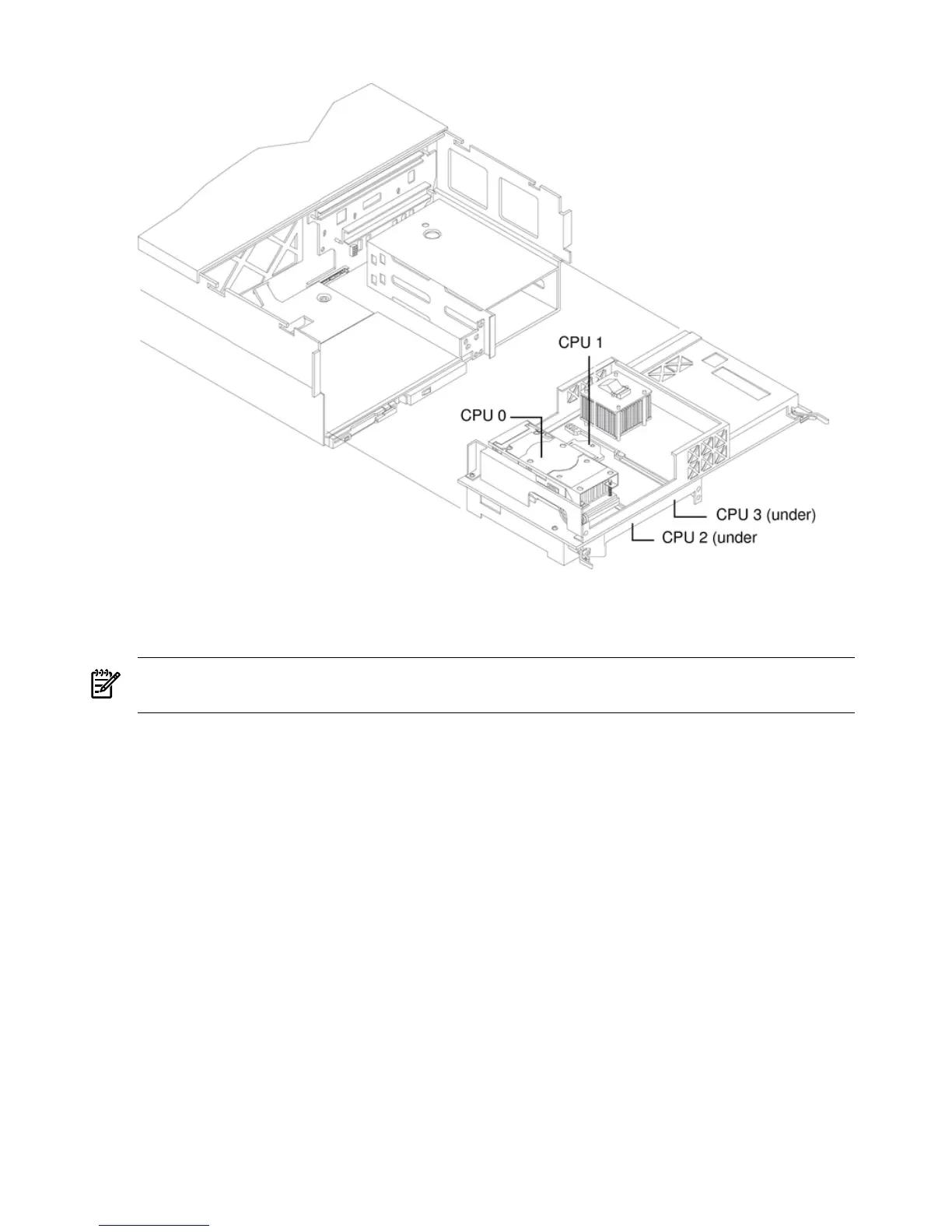

Figure 4-13 Processor Slot Locations on the Processor Extender Board
Removing a Processor
To remove a processor on the processor extender board, follow these steps:
NOTE: The processor being removed in this procedure is CPU 1. This procedure applies to all
the processors on the processor extender board.
1. If rack mounted, slide the server out from the rack until it stops. See “Extending the Server
From the Rack” (page 31).
2. Remove the front bezel. See “Removing the Front Bezel” (page 34).
3. Remove the front cover. See “Removing the Front Cover” (page 35).
4. Remove the processor extender board. See “Removing the Processor Extender Board”
(page 43).
5. Using a torx T15 driver, loosen the six captive T15 shoulder screws that attach the sequencer
frame on the heatsink in the order specified in Figure 4-14 until the sequencer frame is free.
46 Removing and Replacing Components
