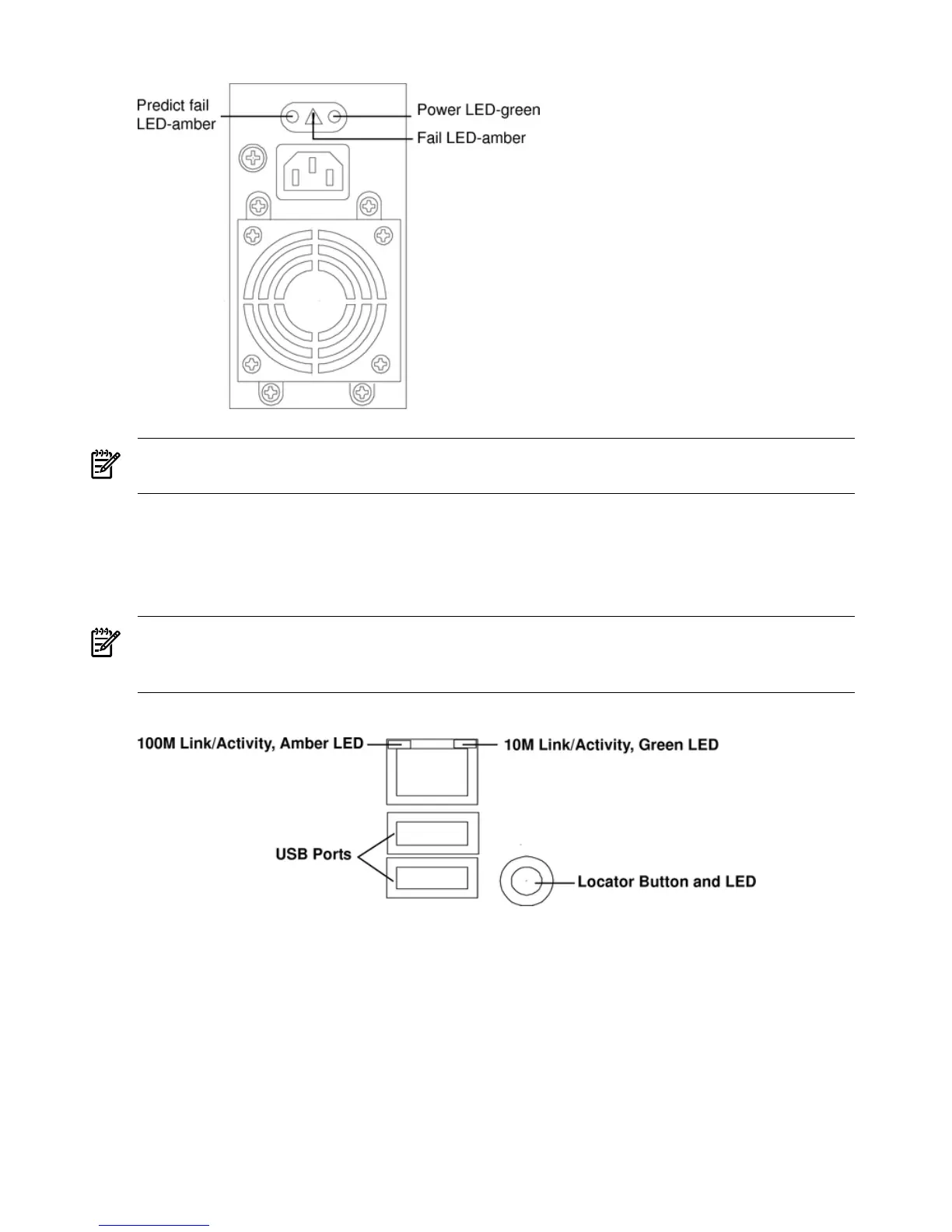

Figure 2-7 Power Supply Status LEDs
NOTE: For more information, and for troubleshooting information regarding the power supply
status LEDs, see “Power Supply Status LED Indicators” (page 104).
iLO MP LAN LEDs
The internal iLO MP LAN uses an RJ-45 type connector. This connector has two LEDs (LAN link
and LAN activity) that signal status and activity. Figure 2-8 shows the MP LAN LEDs and USB
ports on the rear panel of the server.
NOTE: Two versions of the iLO MP card exist for this server. Depending on which version of
the card is installed in the server, the iLO MP LAN port LEDs display differently. The two
different LED patterns are show in Figure 2-8 and Figure 2-9.
Figure 2-8 iLO MP LAN LEDs
Alternate iLO MP LAN LEDs
24 Controls, Ports, and LEDs
