7. Grasp the handle on the rear of the server and slide the I/O baseboard assembly all the way
to the rear until it is removed from the chassis. Figure 4-23 shows how to remove the I/O
baseboard.
NOTE: The I/O baseboard assembly is large, so be careful when lifting it out of the server.

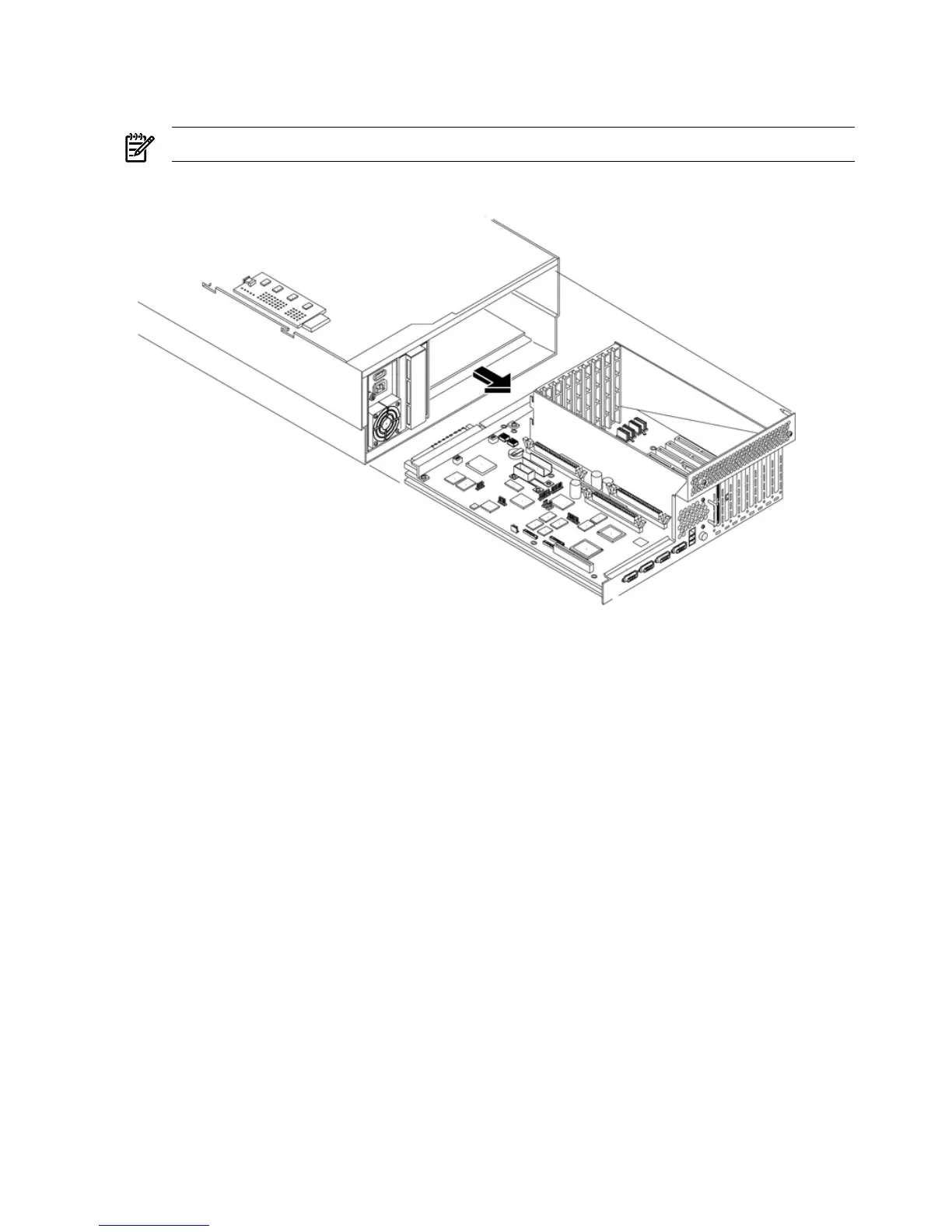

Figure 4-23 Removing the I/O Baseboard
Replacing the I/O Baseboard
To replace the I/O baseboard, follow these steps:
