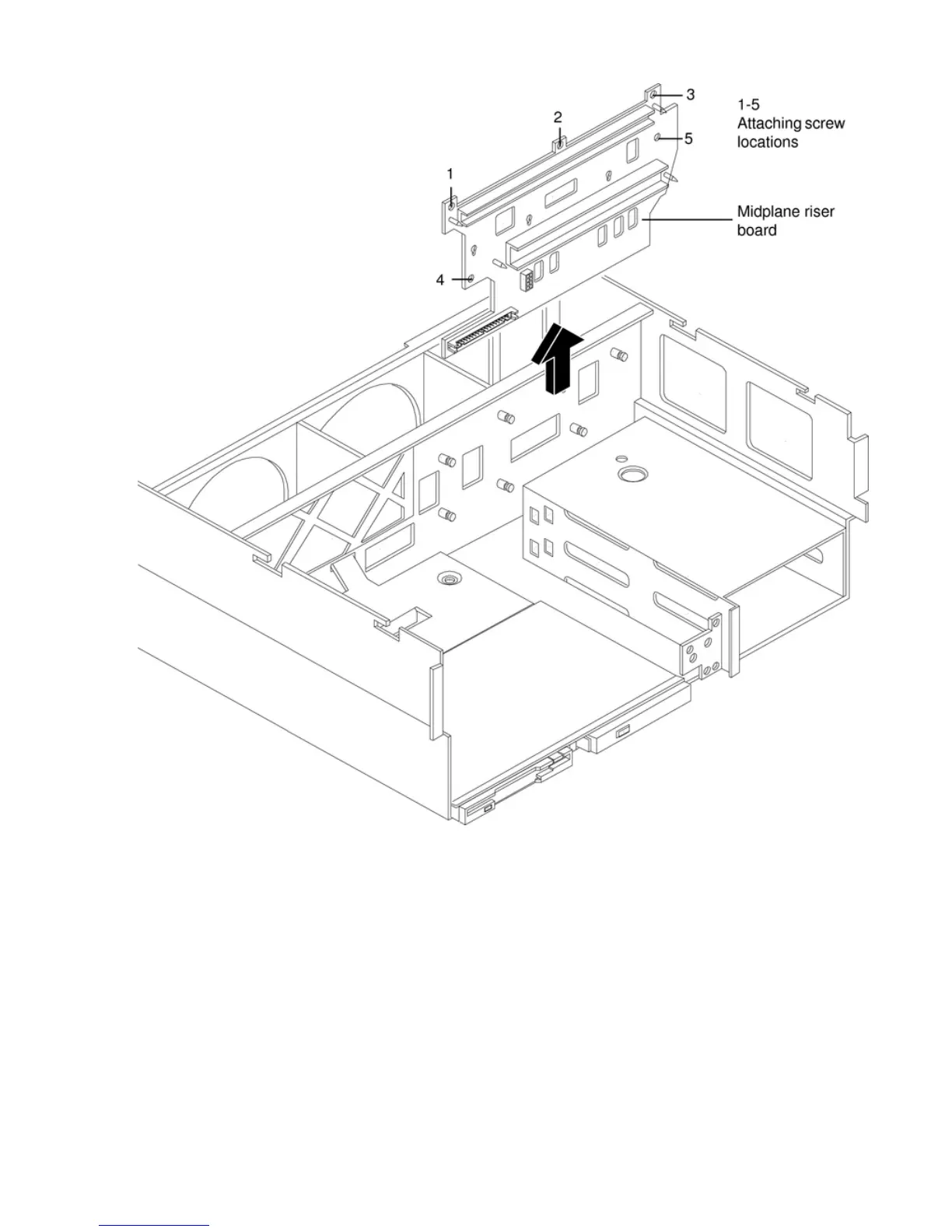

Figure 4-39 Removing and Replacing the Midplane Riser Board
Replacing the Midplane Riser Board
To replace the midplane riser board, follow these steps:
1. Insert the midplane riser board onto the keyway slots on the chassis wall.
2. Push straight down until the midplane riser board seats onto the locking studs. Figure 4-39
shows how to install the midplane riser board.
3. Using a torx #15 driver, replace and tighten the 5 torx screws attaching the midplane riser
board to the chassis.
4. Plug in the QuickFind diagnostic board cable to the midplane riser board.
5. Plug in the DVD relay board and front panel display board cable to the midplane riser board.
6. Plug in the power distribution board power cable and signal cable to the midplane riser
board.
7. Replace the SCSI backplane board. See “Replacing the SCSI Backplane Board” (page 80).
8. Replace the I/O baseboard assembly. See “Replacing the I/O Baseboard” (page 58).
82 Removing and Replacing Components
