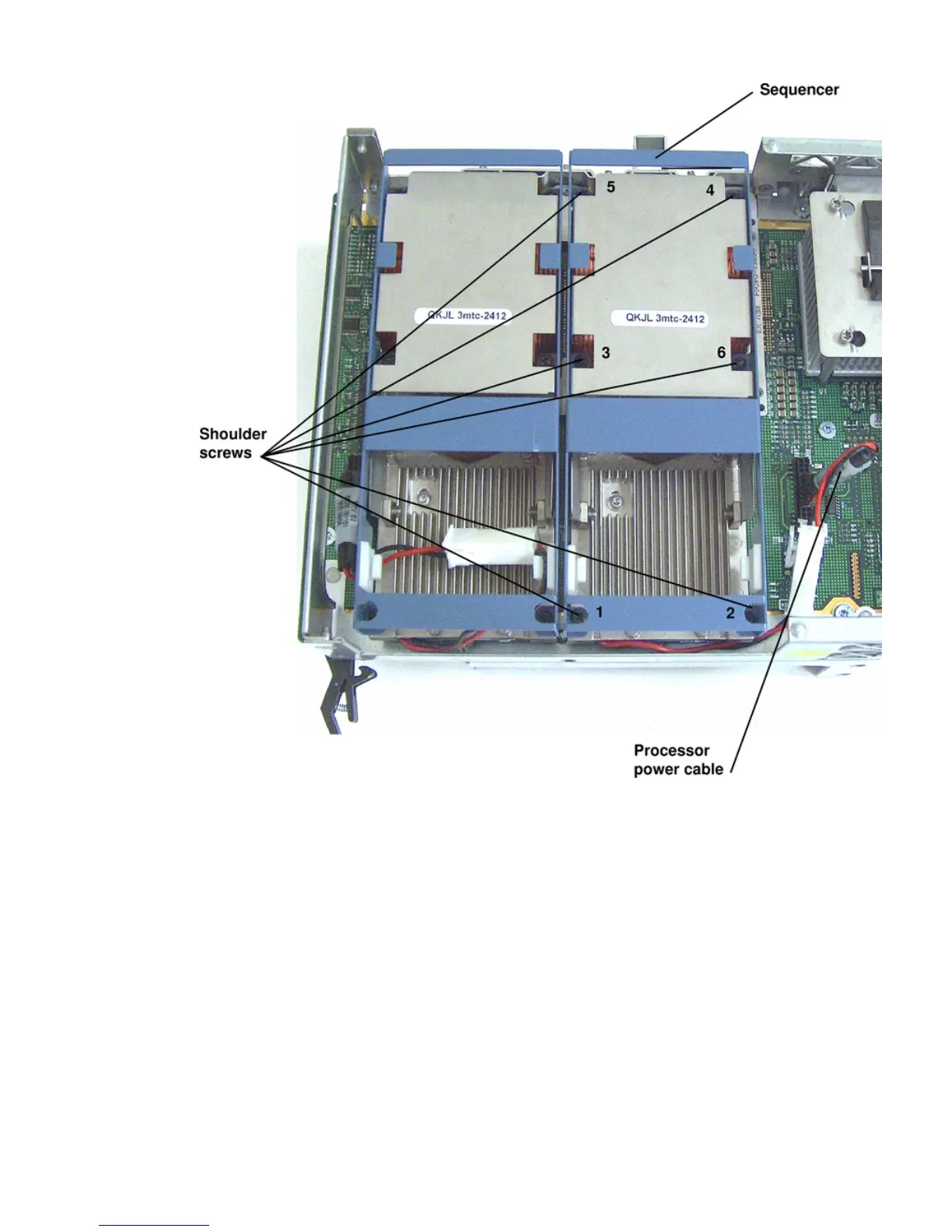

Figure 4-14 Removing the Processor Sequencer
6. Remove the sequencer frame from the heatsink.
7. Unplug the processor power cable from its socket on the extender board.
8. Unlock the processor from the processor extender board by inserting the 2 mm hex end of
the processor installation tool through the processor into the ZIF socket lock and turning it
180 degrees counterclockwise. Figure 4-15 shows the location of the ZIF socket lock.
Removing and Replacing a Processor 47
