HP Portable PLUS - Page 118

9·10 Replaceable Parts
Portable PLUS Computer

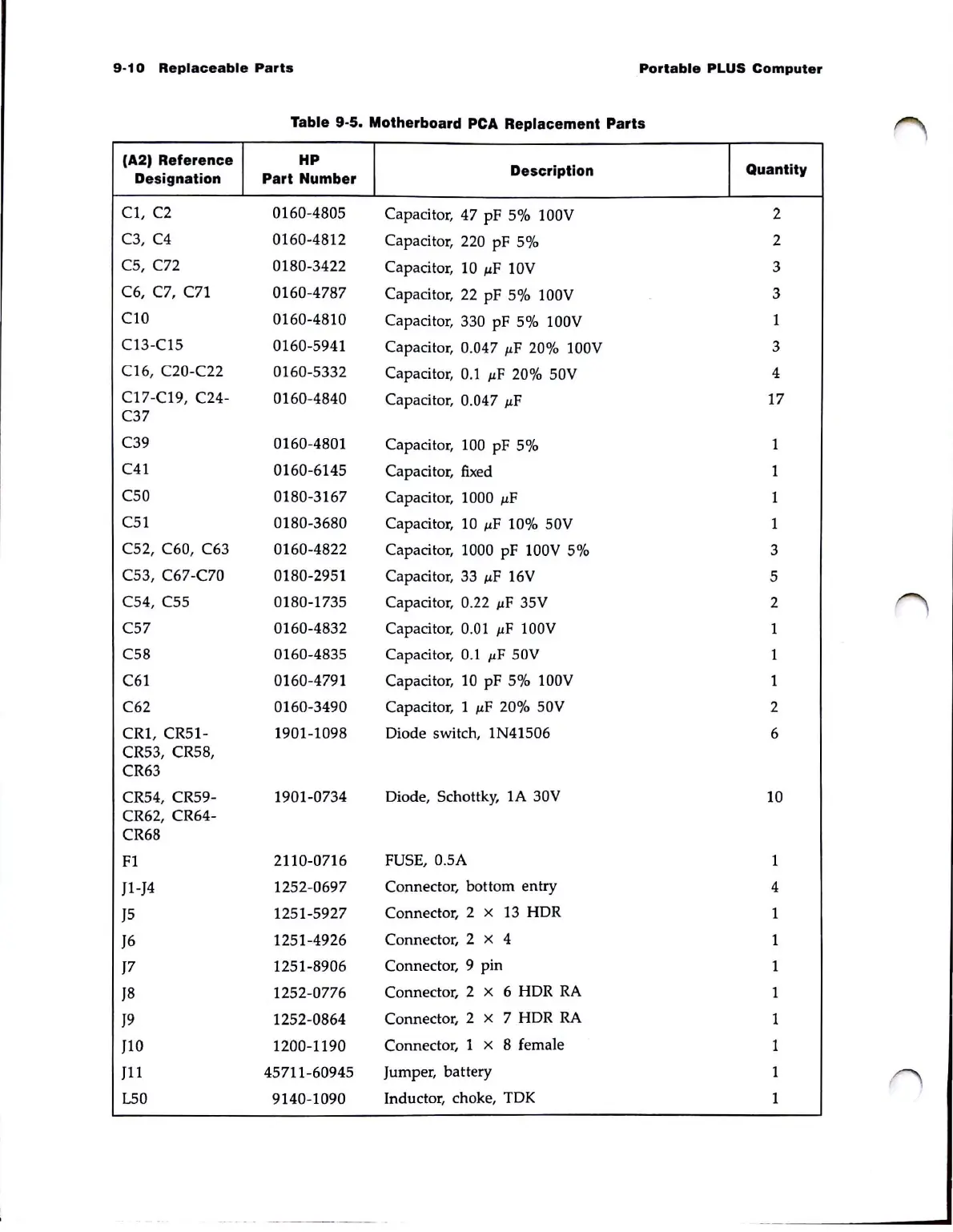

Table 9·5. Motherboard peA Replacement Parts
(A2) Reference HP
Description
Quantity
Designation
Part Number
C1, C2
0160-4805
Capacitor, 47 pF 5% 100V
2
C3, C4
0160-4812
Capacitor, 220 pF 5%
2
C5, C72
0180-3422
Capacitor, 10 J.lF lOV
3
C6, C7, C71
0160-4787
Capacitor, 22 pF 5% 100V
3
ClO
0160-4810
Capacitor, 330 pF 5% 100V
1
C13-C15
0160-5941
Cap acitor, 0.047 J.lF 20% 100V
3
C16,
C20-C22
0160-5332
Capacitor, 0.1 J.lF 20% 50V
4
C17-C19, C24-
0160-4840
Capacitor, 0.047 J.lF
17
C37
C39
0160-4801
Capacitor, 100 pF 5%
1
C41
0160-6145
Capacitor, fixed
1
C50
0180-3167
Capacitor, 1000 J.lF 1
C51
0180-3680
Capacitor, 10 J.lF 10% 50V
1
C52,
C60, C63
0160-4822
Capacitor, 1000 pF 100V 5% 3
C53,
C67-C70 0180-2951
Capacitor, 33 J.lF 16V
5
C54, C55
0180-1735
Capacitor, 0. 22 J.lF 35V 2
C57 0160-4832
Capacitor, 0. 01 J.lF 100V
1
C58
0160-4835
Capacitor, 0.1 J.lF 50V 1
C61
0160-4791 Capacitor, 10 pF 5% 100V
1
C62
0160-3490
Capacitor, 1 J.lF 20% 50V 2
CR1, CR51-
1901-1098 Diode switch, 1N41506
6
CR53, CR58,
CR63
CR54, CR59-
1901-0734
Diode, Schottky, 1A 30V
10
CR62, CR64-
CR68
F1
2110-0716
FUSE, 0.5A
1
J1-J4
1252-0697
Connector, bottom entry
4
J5
1251-5927
Connector, 2 x 13 HDR
1
J6
1251-4926
Connector, 2 x 4
1
J7
1251-8906
Connector, 9 pin
1
J8
1252-0776
Connector, 2 x
6 HDR
RA
1
J9
1252-0864
Connector, 2 x
7 HDR
RA
1
J10
1200-1190
Connector, 1
x 8 female
1
J11
45711-60945
Jumper, battery 1
L50 9140-1090
Inductor, choke, TDK
1
