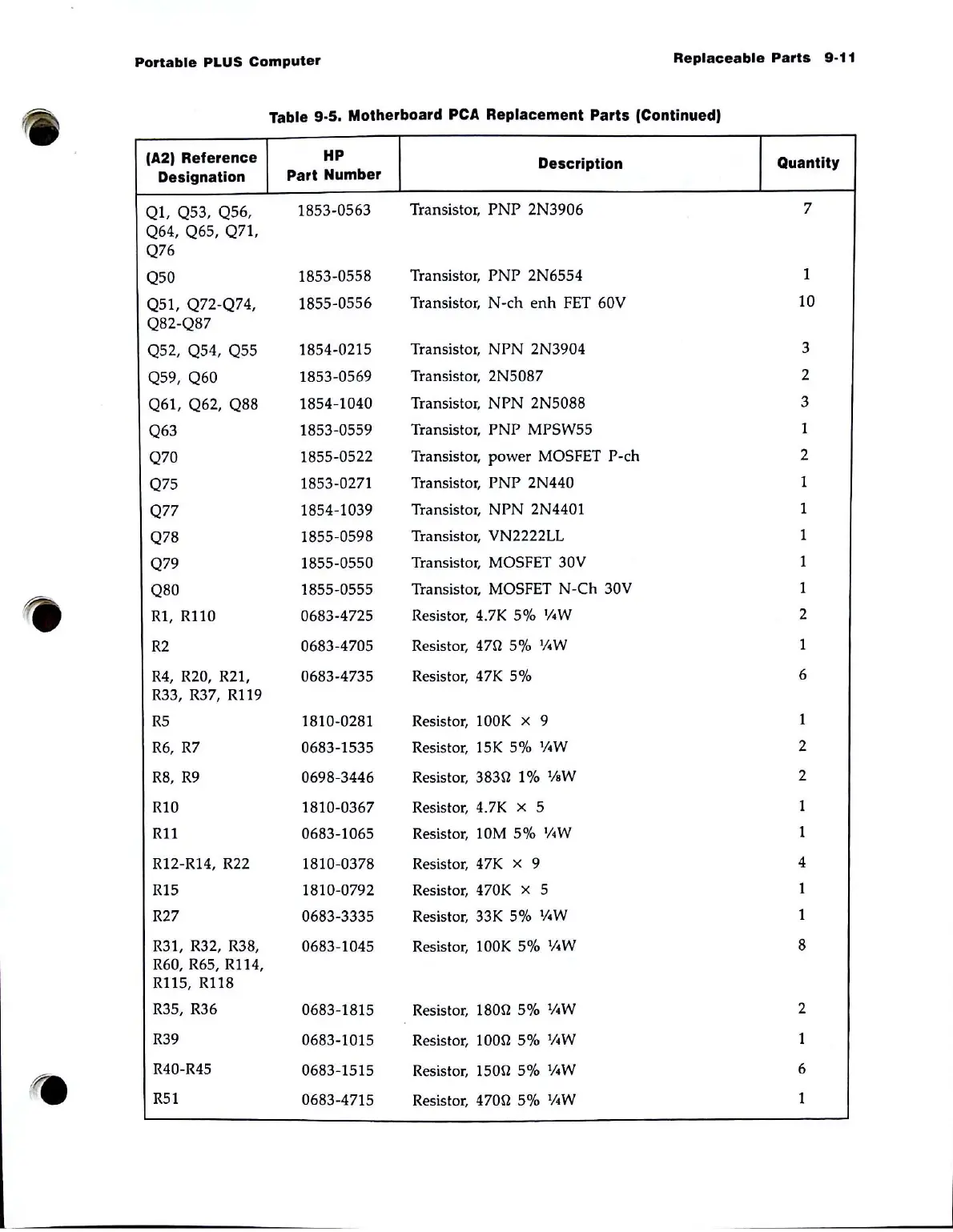

HP Portable PLUS - Page 119

Portable PLUS Computer
Replaceable Parts
9·11
Table 9·S. Motherboard PCA Replacement Parts (Continued)
(A2) Reference
HP
Description
Quantity
Designation
Part Number
Ql, Q53, Q56,
1853·0563
Transistor, PNP 2N3906
7
Q64, Q65,
Q71,
Q76
Q50
1853-0558
Transistor,
PNP 2N6554
1
Q51,
Q72-Q74,
1855-0556
Transistor, N-ch
enh FET 60V
10
Q82-Q87
Q52, Q54, Q55
1854·0215
Transistor, NPN 2N3904
3
Q59,
Q60
1853-0569
Transistor, 2N5087
2
Q61, Q62, Q88
1854-1040
Transistor,
NPN 2N5088
3
Q63
1853-0559
Transistor,
PNP MPSW55
1
Q70
1855-0522
Transistor, power
MOSFET P-ch
2
Q75
1853-0271
Transistor,
PNP 2N440
1
Q77
1854-1039
Transistor,
NPN 2N4401
1
Q78
1855-0598
Transistor, VN2222LL
1
Q79
1855-0550
Transistor, MOSFET 30V
1
Q80 1855-0555
Transistor,
MOSFET N-Ch 30V
1
R1, RI10
0683·4725
Resistor, 4.7K 5% '/.W
2
R2
0683-4705
Resistor, 47n 5% '1.W
1
R4, R20, R21, 0683-4735 Resistor, 47K 5%
6
R33, R37, R1l9
R5 1810·0281
Resistor, lOOK x 9
1
R6, R7 0683-1535 Resistor, 15K 5% '/.W
2
R8, R9
0698-3446
Resistor,
383n 1 % '/8W
2
RIO 1810-0367 Resistor, 4.7K x 5
1
Rll 0683-1065 Resistor, 10M 5% 'AW
1
R12-R14, R22
1810-0378 Resistor, 47K x 9
4
R15
1810-0792 Resistor, 470K x 5
1
R27 0683-3335 Resistor, 33K 5%
'I4W
1
R31, R32, R38,
0683-1045 Resistor,
lOOK 5% 'I.W
8
R60, R65, R1l4,
R1l5,
R1l8
R35, R36
0683-1815 Resistor,
180n 5% 'I4W
2
R39
0683·1015 Resistor, lOon 5% '/.W
1
R40-R45
0683-1515
Resistor,
150n 5% '/.W
6
R51
0683-4715
Resistor,
470n 5% 'I.W
1
