5. Disconnect the data cable from the system board as shown in the following figure.
6. If a hard disk drive is installed, disconnect its power and data cables.
7. Lift and hold the drive release latch at the green touch point
, and then slide the slot load assembly
out of the chassis
2
as shown in the following figure.
TIP: Push on the slot load assembly from the inside of the chassis.

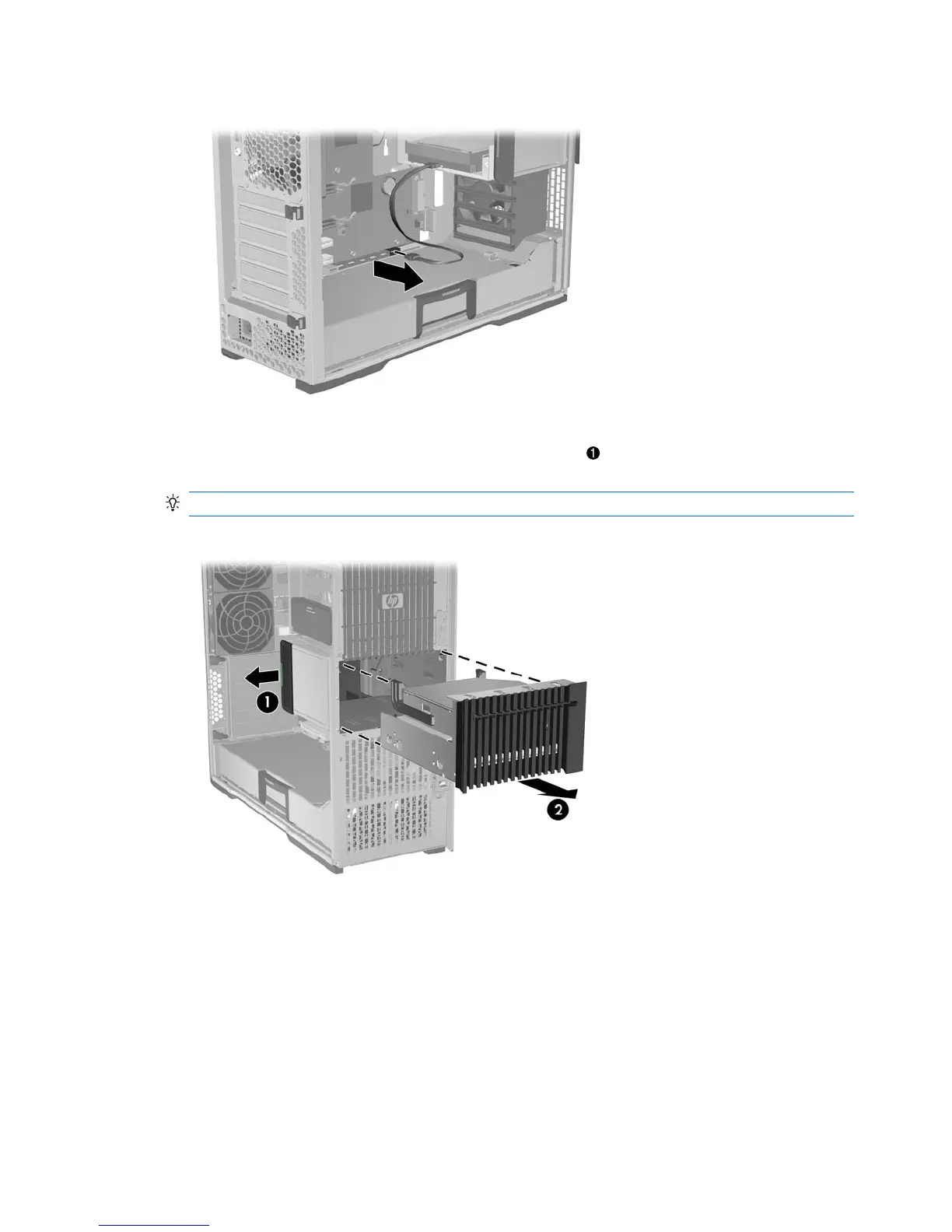

Figure 5-28 Removing the slot load assembly
98 Chapter 5 Replacing components ENWW
