8. Disconnect the power/data cable from the slot load optical drive as shown in the following figure.

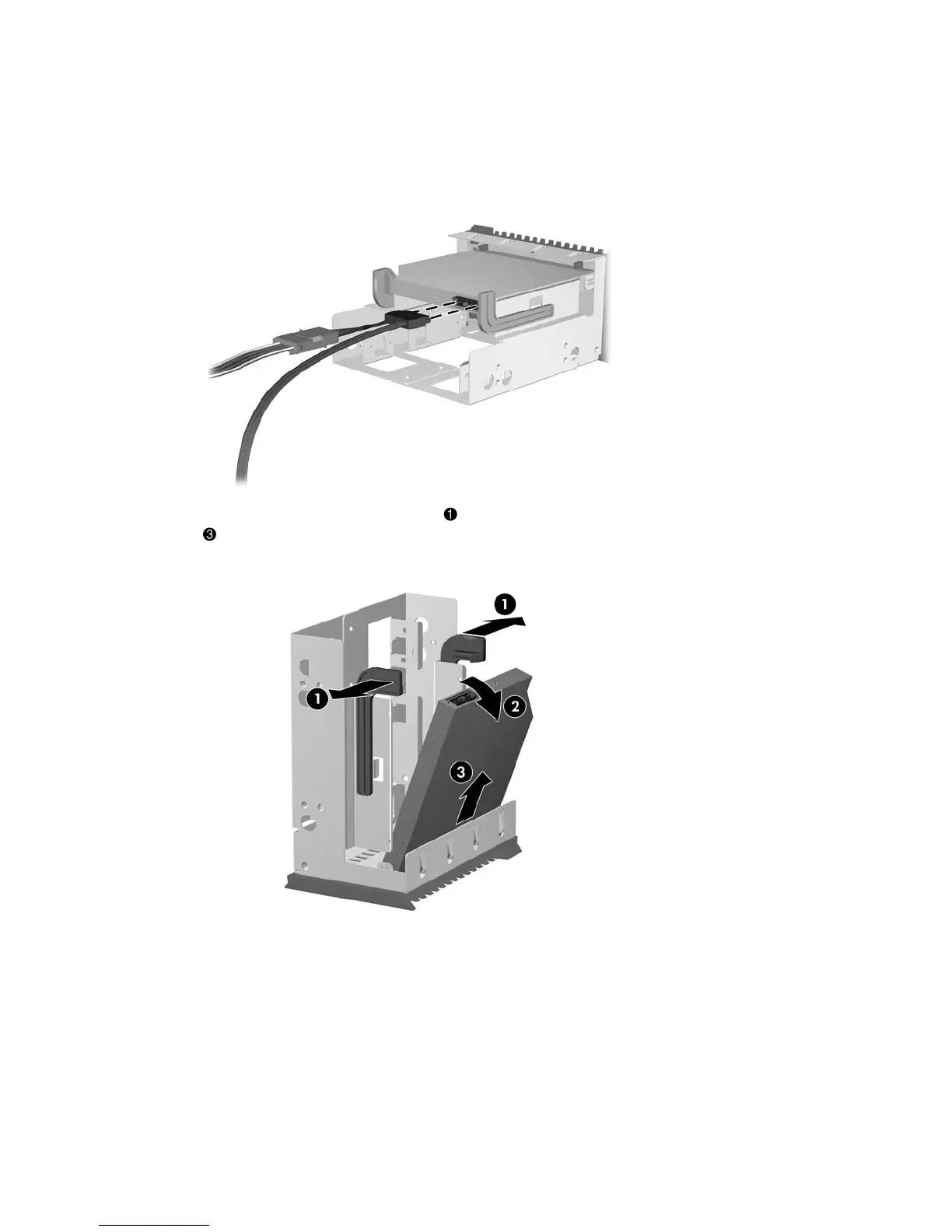

Figure 5-29 Disconnecting the power/data cable from the drive
9. Separate the slot load drive latches , tilt the slot load optical disk drive
2
, and lift it from the carrier
as shown in the following figure.
Figure 5-30 Removing the optical disk drive from the carrier
ENWW Removing and installing components 99
