HP Z600

Display port
6 ML_Lane 1(n) 16 GND
7 ML_Lane 2(p) 17 AUX CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 2(n) 19 DP_PWR Return
10 ML_Lane 3(p) 20 DP_PWR

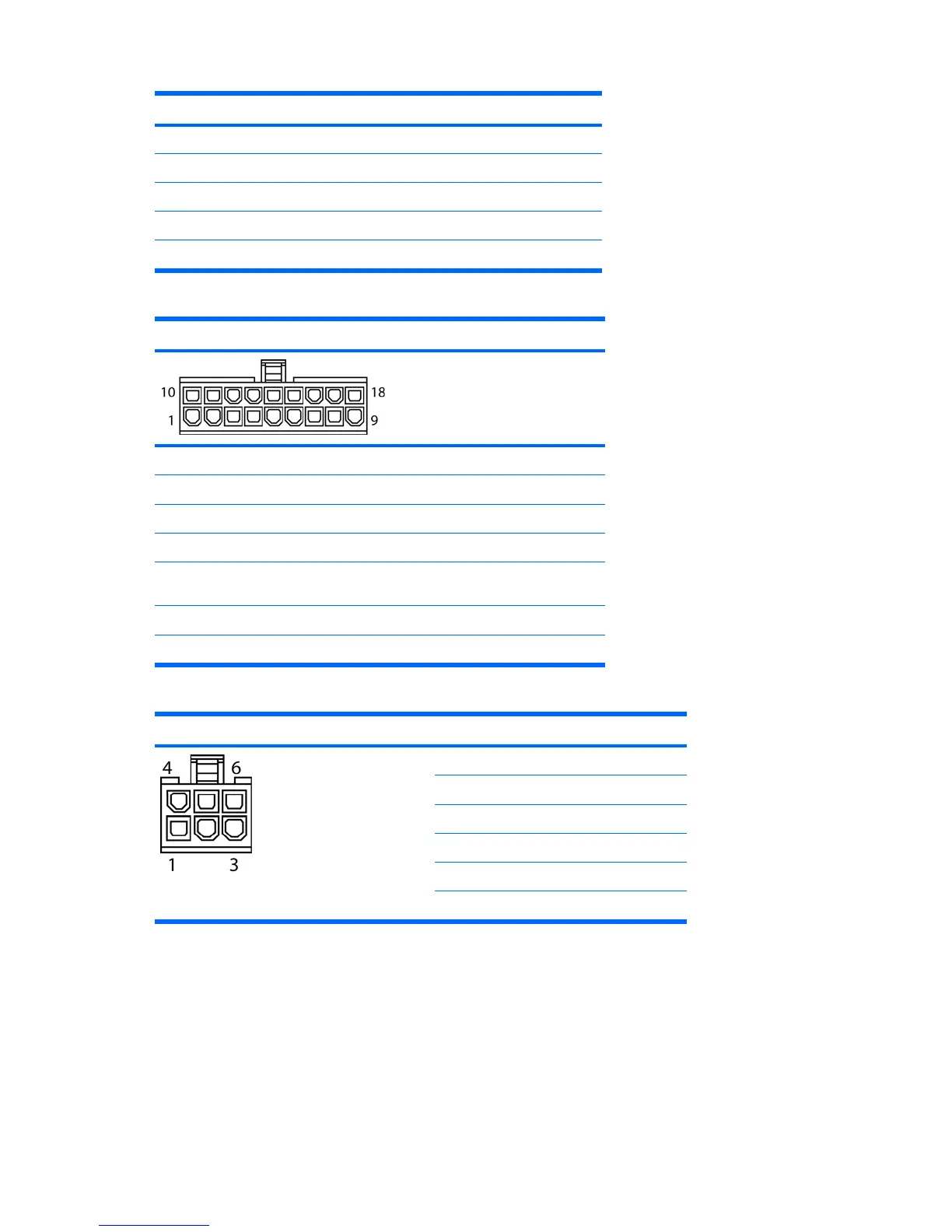

Main power cable, P1
Pin Signal Pin Signal Pin Signal
1 +5V 7 N/C 13 V12-S
2 GND 8 PSON 14 V12-B
3 GND 9 PSUID 15 V12-B
4 GND 10 +5V 16 PWR_OK
(disconnected)
5 GND 11 GND 17 5VSB
6 GND 12 V12-S 18 -12V
Memory power cable, P2 Pin Color Signal
1 BLK GND
2 WHITE +5VSB
3 BLK GND
4 GREEN V12-M
5 GREEN V12-M
6N/C OPEN
206 Appendix A Connector pins ENWW
