Rear panel LEDs

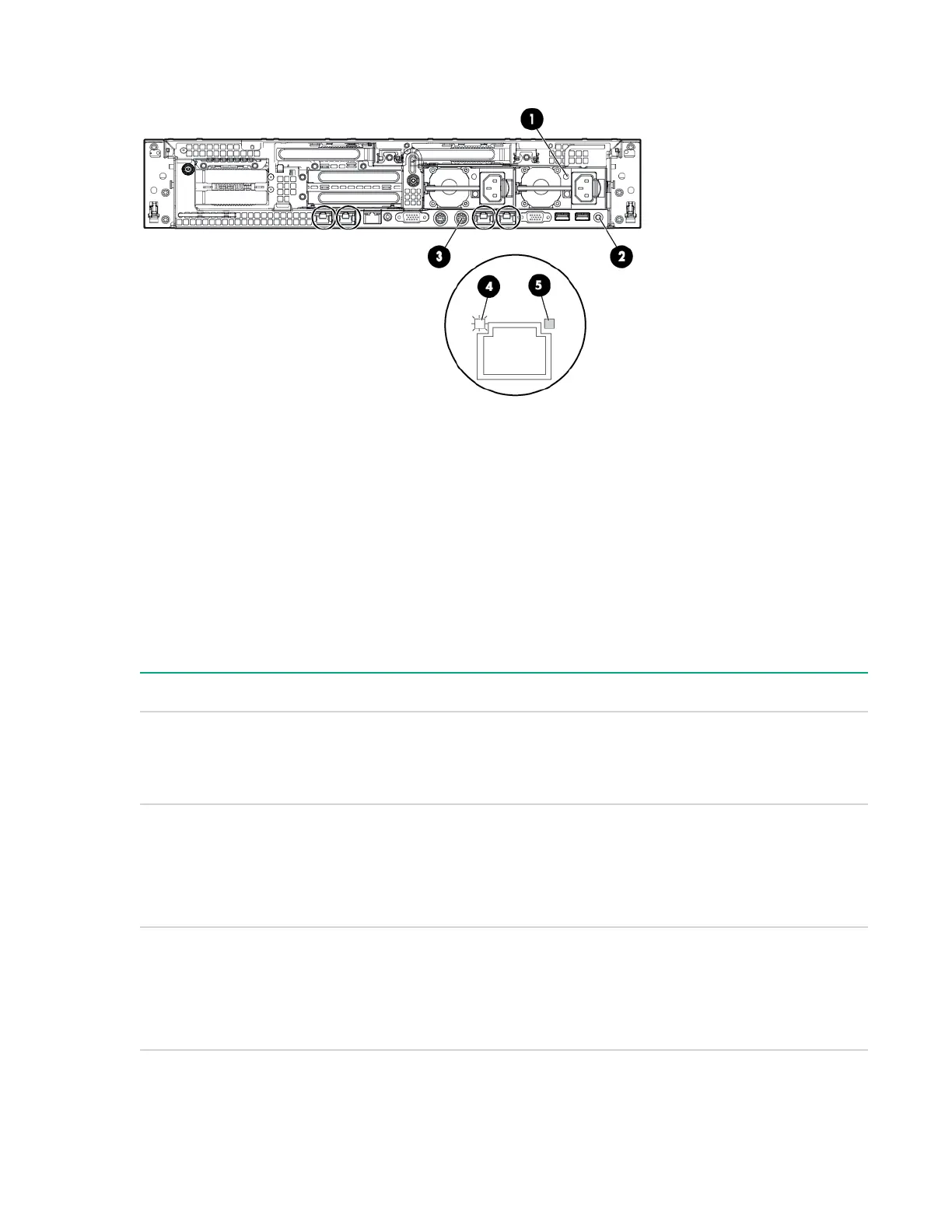

Figure 18: Rear panel LEDs and buttons
• Power supply LED
• UID LED/button
• iLO 3 physical presence pinhole button
• NIC/iLO 3 activity LED
• NIC/iLO 3 link LED
Table 24: Rear panel LEDs and buttons
Name Status
Power supply LED
• Green = Normal
• Off = System is off or power supply has failed
UID LED/button
• Blue = Identification
• Flashing blue = Remote iLO session or a firmware flash update is in progress
• Off = Off
NIC/iLO 3 activity LED
• Green = Network activity
• Flashing green = Network activity
• Off = No network activity
Table Continued
100 Rear panel LEDs
