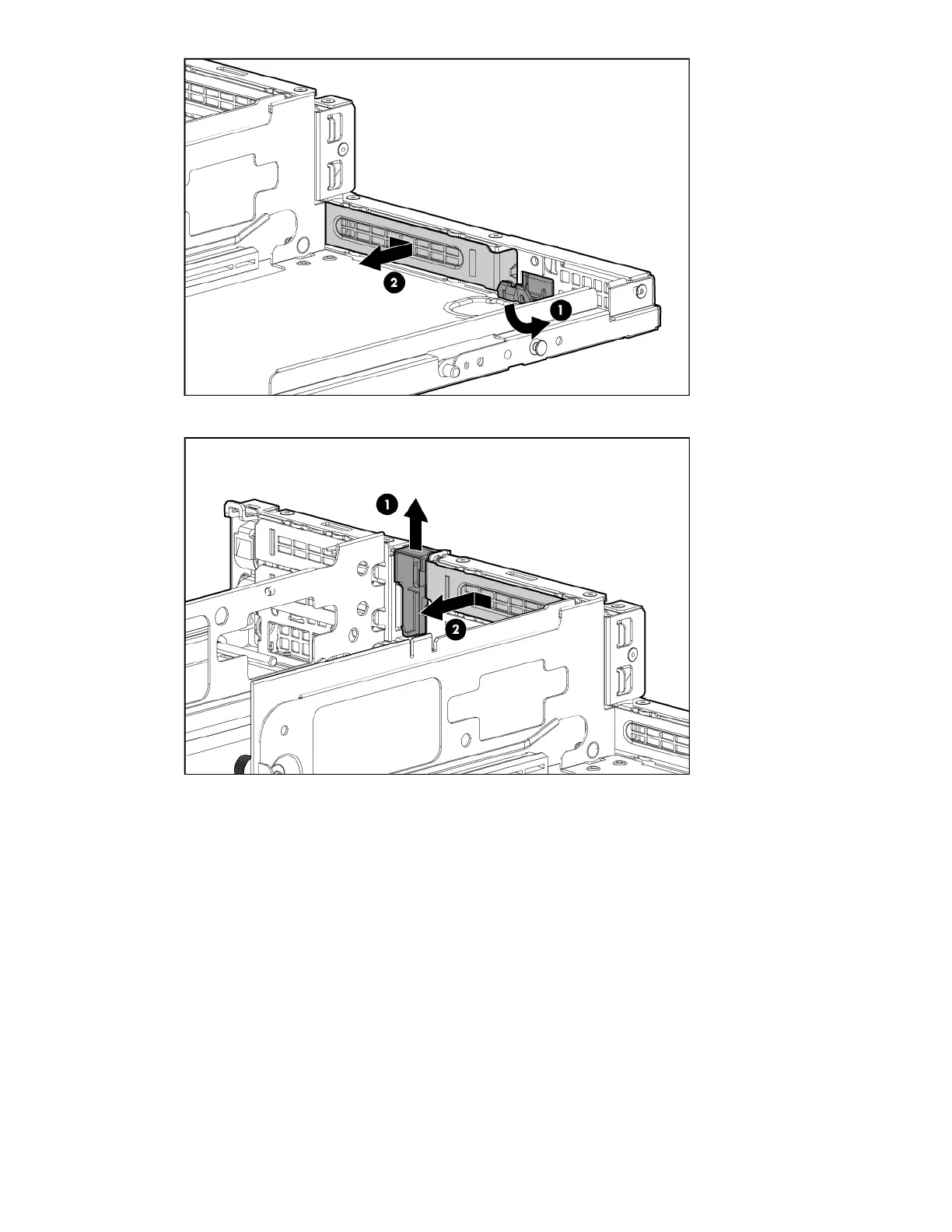

b. To remove slot covers 2 and 3, lift up and remove the latch, and then remove the cover.
c. To remove slot covers 5 and 6, push down on the latch, rotate the latch down, and then remove the
cover.
Installing expansion boards
The server supports up to two PCIe riser boards. Each PCIe riser board holds up to three PCIe cards.
The standard riser board configuration contains one riser board with one full-length, full-height PCIe x8
slot, and two half-length, full-height PCIe x4 slots. The second board contains one full-length, full-height
PCIe x8 slot, and two half-length, half-height PCIe x4 slots.
Optionally, you can purchase a riser board that contains two full-length PCIe x8 slots.
62 Installing expansion boards
