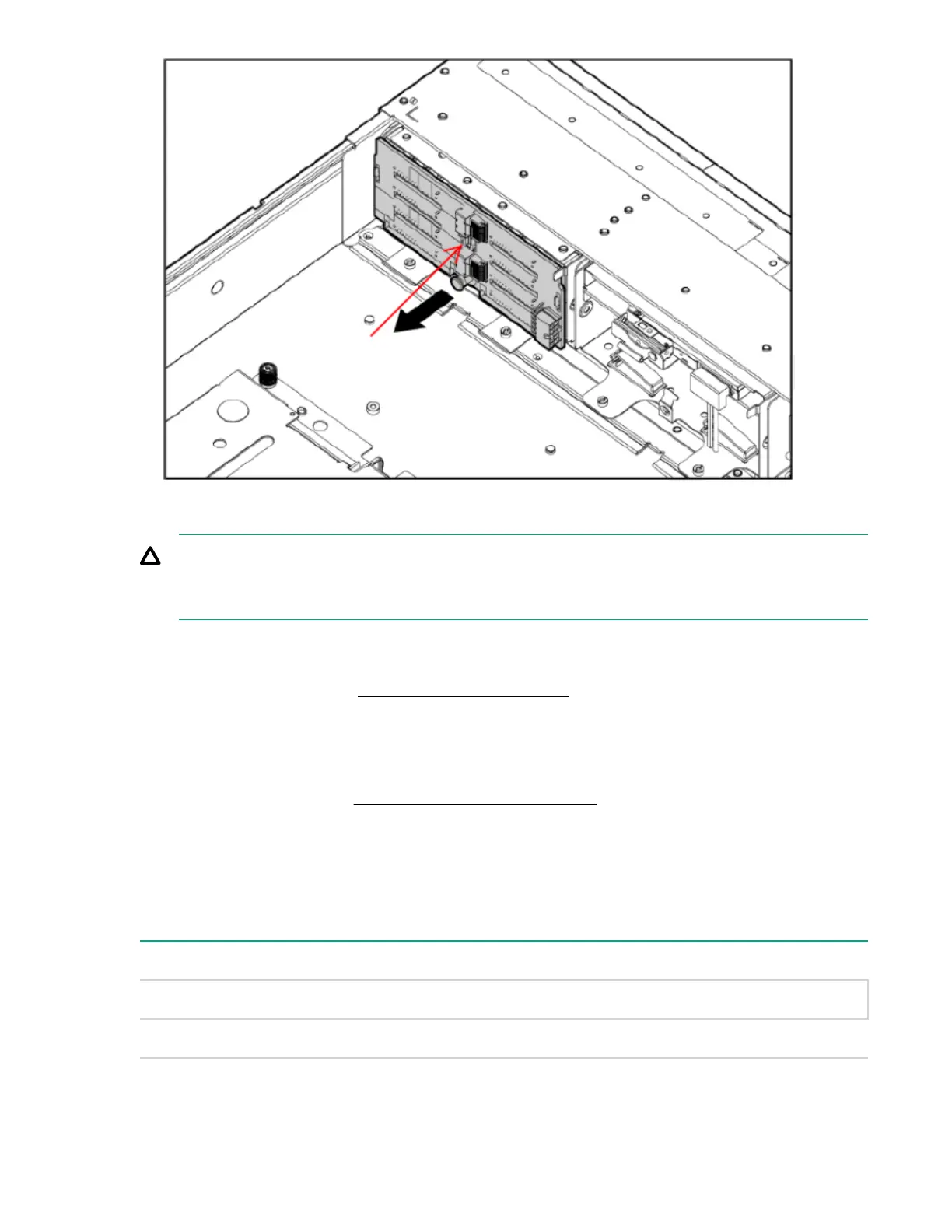

To replace the component, reverse the removal procedure.
CAUTION:
Carefully align the backplane center through-holes with the chassis mounting posts or you might
damage components on the backplane.
Removing and replacing the PCI riser cage
To remove the component, see Removing the PCI riser cage on page 60.
To replace the component, reverse the removal procedure.
Removing and replacing expansion slot covers
To remove the component see Removing expansion slot covers.
To replace the component, reverse the removal procedure.
Removing and replacing expansion boards
Table 45: PCI slot descriptions
3–slot PCIe riser 2–slot PCIe riser
Primary riser connector
1 — Full length, full height PCIe2 x16 (8, 4, 2, 1) PCIe2 x16 (8, 4, 2, 1)
Table Continued
Removing and replacing the PCI riser cage 153
