Table 20: SEL LED states
Definition Flash Rate LED Color
System is off, or system is booting firmware with no failures, since
SEL logs last examined.
LED Off
System has left the firmware boot, and an OS is booting or running
with no failures, since SEL logs last examined.
Steady Green
A fatal fault has been detected and logged. Flash 2 Hz Red
The iLO 3 MP displays the following strings in its Virtual Front Panel for the states of this LED:
Table 21: VFP health description
Off <none>
On green OS booting or running
Flashing red Fatal fault -- system crashed or cannot boot: check logs for details
Hard drive LEDs
The hard drives have two LEDs per drive. See Hot-plug SAS disk drive LEDs :
Drive status LED
The drive status LED can appear amber or blue.
• Amber indicates a warning, or failure condition.
• Blue is a locator LED that identifies a particular disk drive.
Various software utilities, such as online diagnostics or SAS disk drive configuration tools, can
activate the locator LED.
Drive activity LED
The drive activity LED is solid green during normal operation and flashes green when a drive is
accessed.

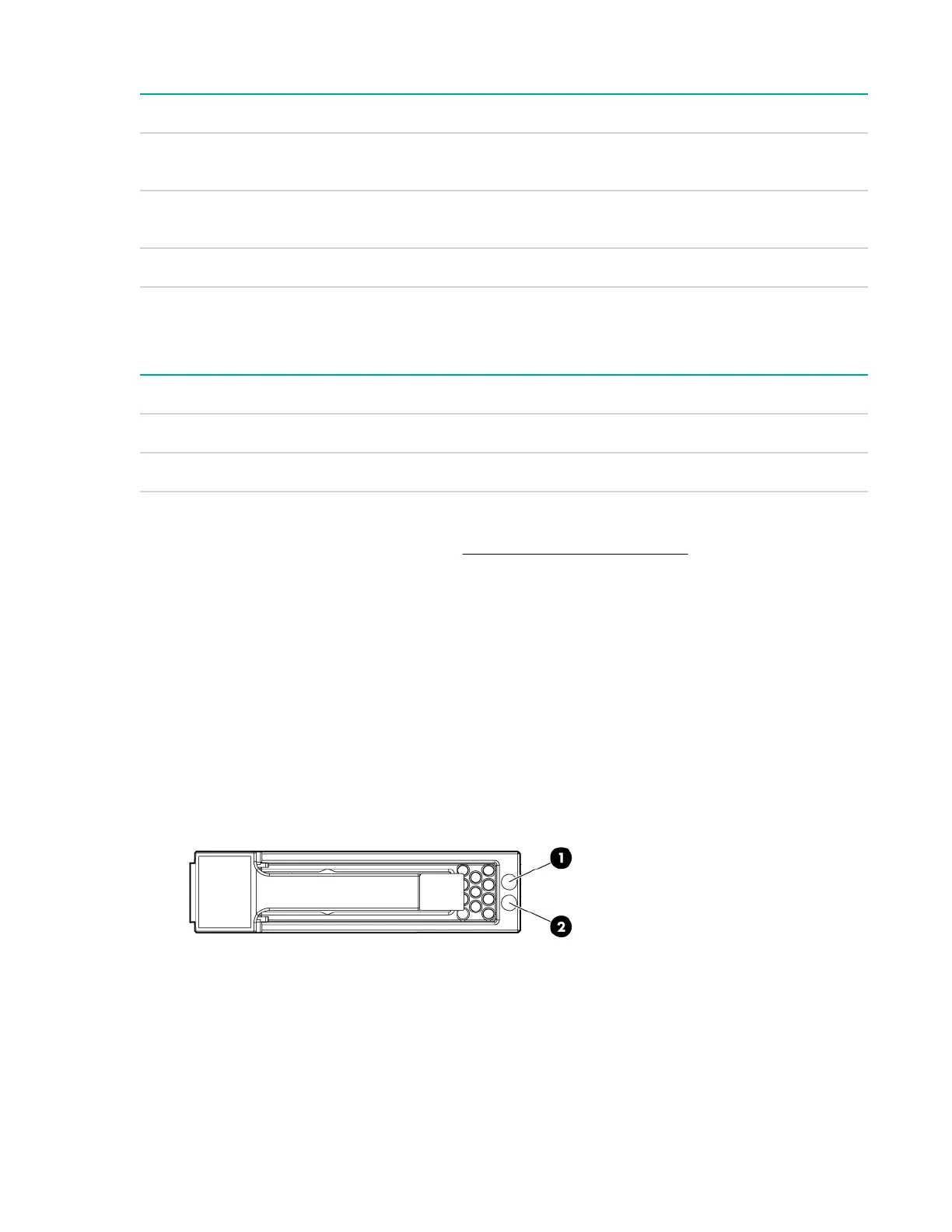

Figure 17: Hot-plug SAS disk drive LEDs
1. Drive status LED (locator LED)
2. Drive activity LED
Troubleshooting 97
