NOTE:
One of the holes in the pedestal component contains the locking mechanism. This makes the
hole appear partially blocked.
6. Hold the pedestal top piece flush against the server.
7. Slide the pedestal top piece forward until it locks into place.
8. The top and bottom pedestal kit pieces are now in place.
Attaching the bezel cover
To attach the bezel cover:
Procedure
1. Attach the bezel cover to the front of the server starting from the bottom of the pedestal kit.
2. Push the bezel cover into place against the pedestal kit top piece until the tabs on the bezel cover
snap into place.

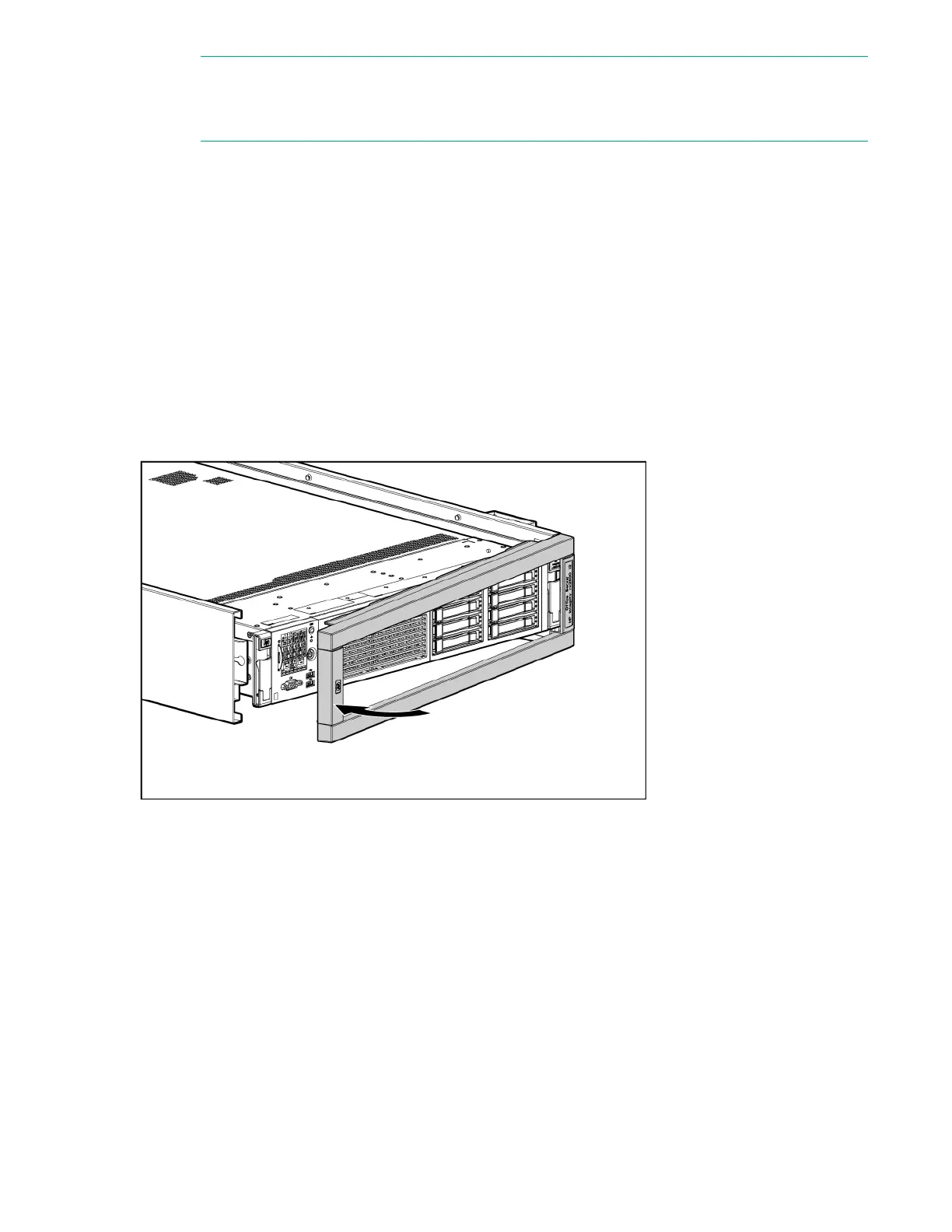

Figure 10: Attaching the bezel Cover
Attaching the pedestal kit side pieces
The pedestal kit right side piece attaches to the top of the server. The top cover of the server might have
ventilation holes in it to enable proper air flow and cooling. The right side piece of the pedestal kit also
has ventilation holes in it to enable the proper cooling and air flow. Follow these steps to attach the
pedestal kit right side piece.
30 Attaching the bezel cover
