Procedure
NOTE:
The bottom piece of the pedestal is taller than the server, so try to position the server so the right side (in the
horizontal position) of the server hangs off the edge of the work surface by a few inches to allow the bottom
piece to be attached to the server chassis. If that is not possible, then raise up the server approximately
three inches from the work surface to enable the pedestal kit bottom piece to be attached to the server right
side.
To attach the components.
1. Align the holes in the pedestal component with the posts on the server. See Figure 9.
NOTE:
One of the holes in the pedestal component contains the locking mechanism. This makes the
hole appear partially blocked.
2. Hold the pedestal component flush against the server.
3. Slide the pedestal component forward until it locks into place.

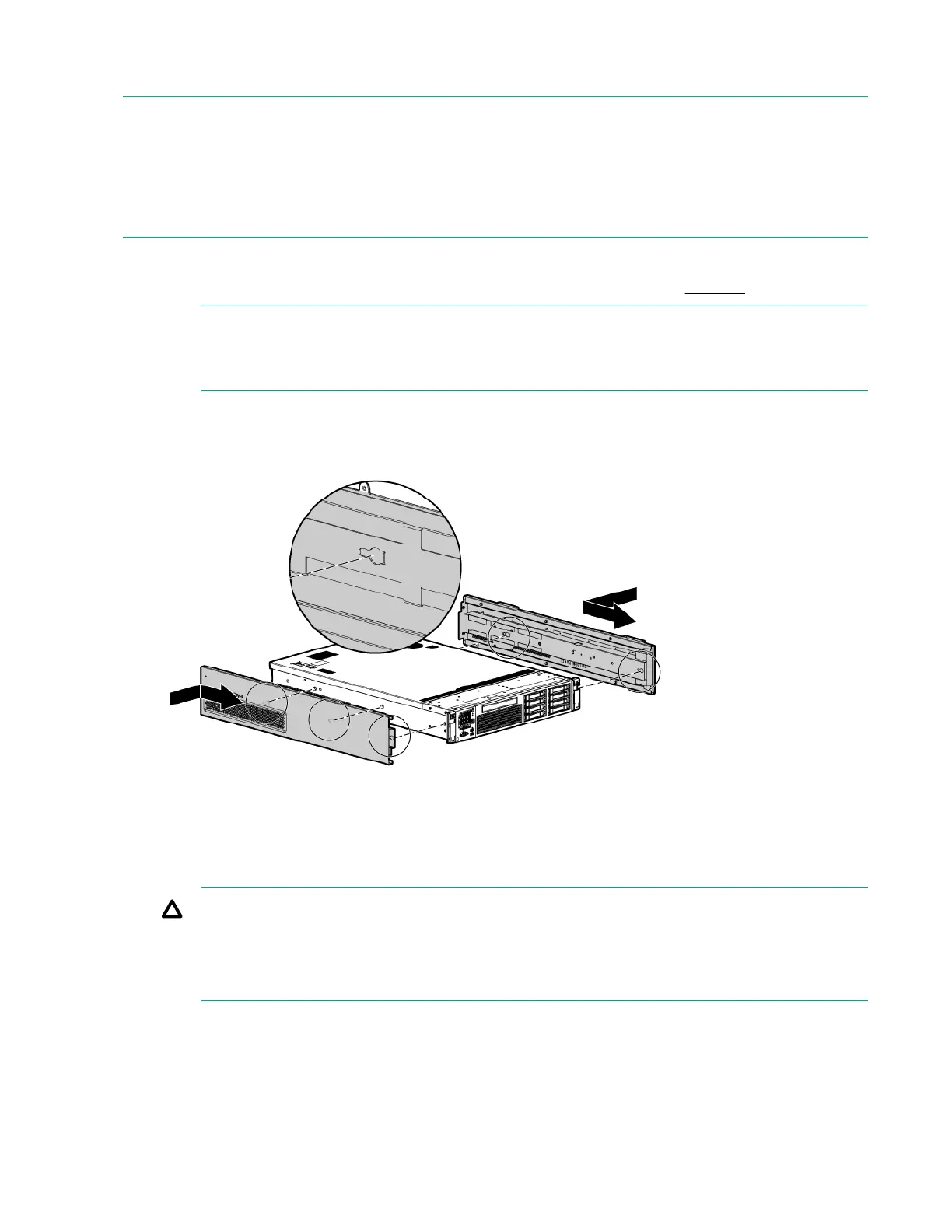

Figure 9: Installing the pedestal bottom piece
4. Stand the server up on the bottom piece of the pedestal kit that was just installed so the server is in
the vertical position.
CAUTION:
The server is heavy. Be careful when lifting it to the vertical position.
Without the feet installed, the server might tip over easily. Be careful when working near the
server to avoid tipping it over.
5. Align the holes in the pedestal top piece with the posts on the server
Installing the server 29
