Pull the pedestal kit top piece away from the server
.
f.
Repeat these steps for the bottom piece.
Access the product rear panel
Cable management arm with left-hand swing
Procedure
1.

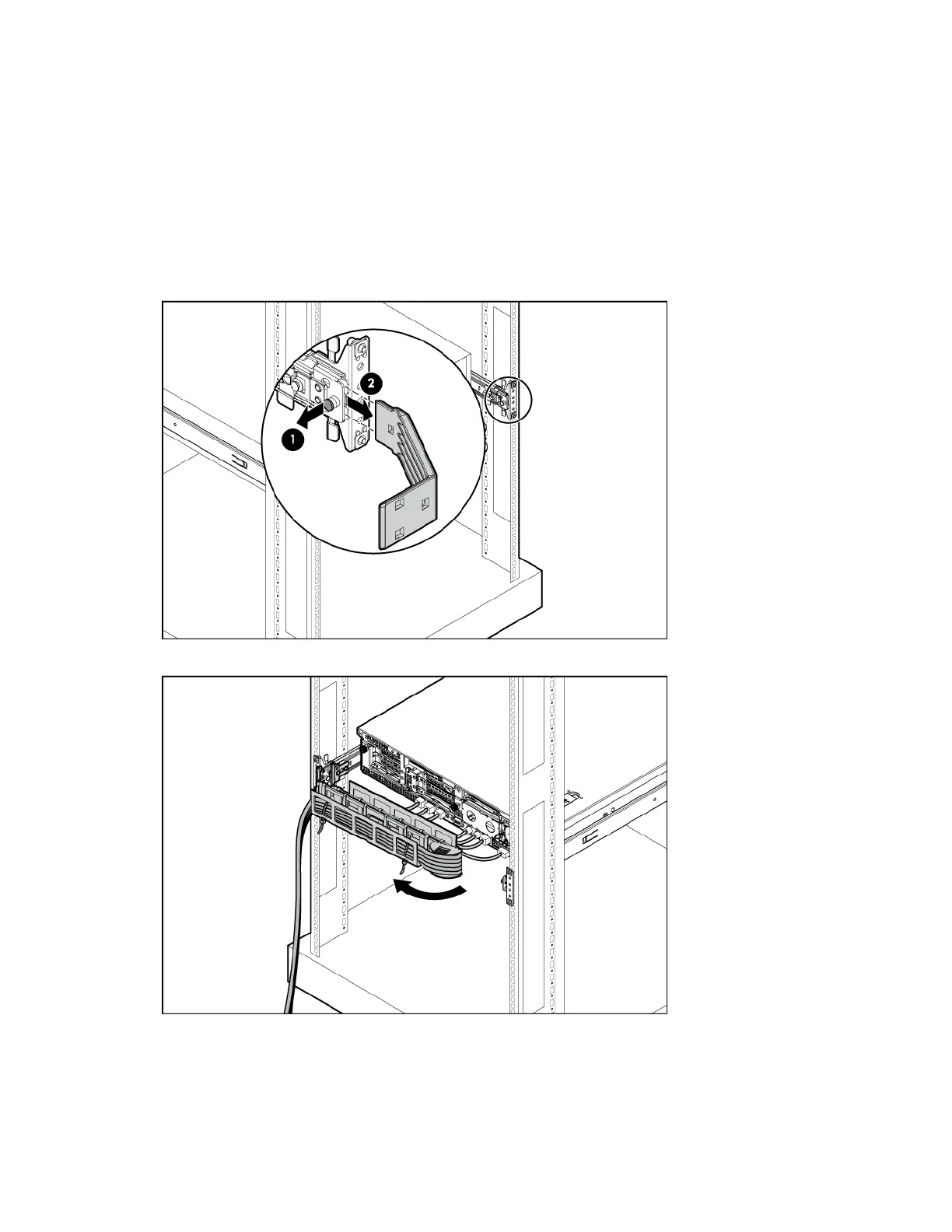

Remove the cable arm retainer
.
2.
Open the cable management arm.
Access the product rear panel
143
142
144
