Figure 27: Removing the bezel cover
4. Remove the pedestal top piece.
a. With the server still in the vertical position, look at the left side of the server (server bottom) to
locate the lock release tab.
b. Press the lock release tab on the pedestal top piece away from the chassis to unlock the pedestal
top piece from the server. See Figure 28: Removing the pedestal top piece on page 142 for the
pedestal top and bottom piece lock release locations.

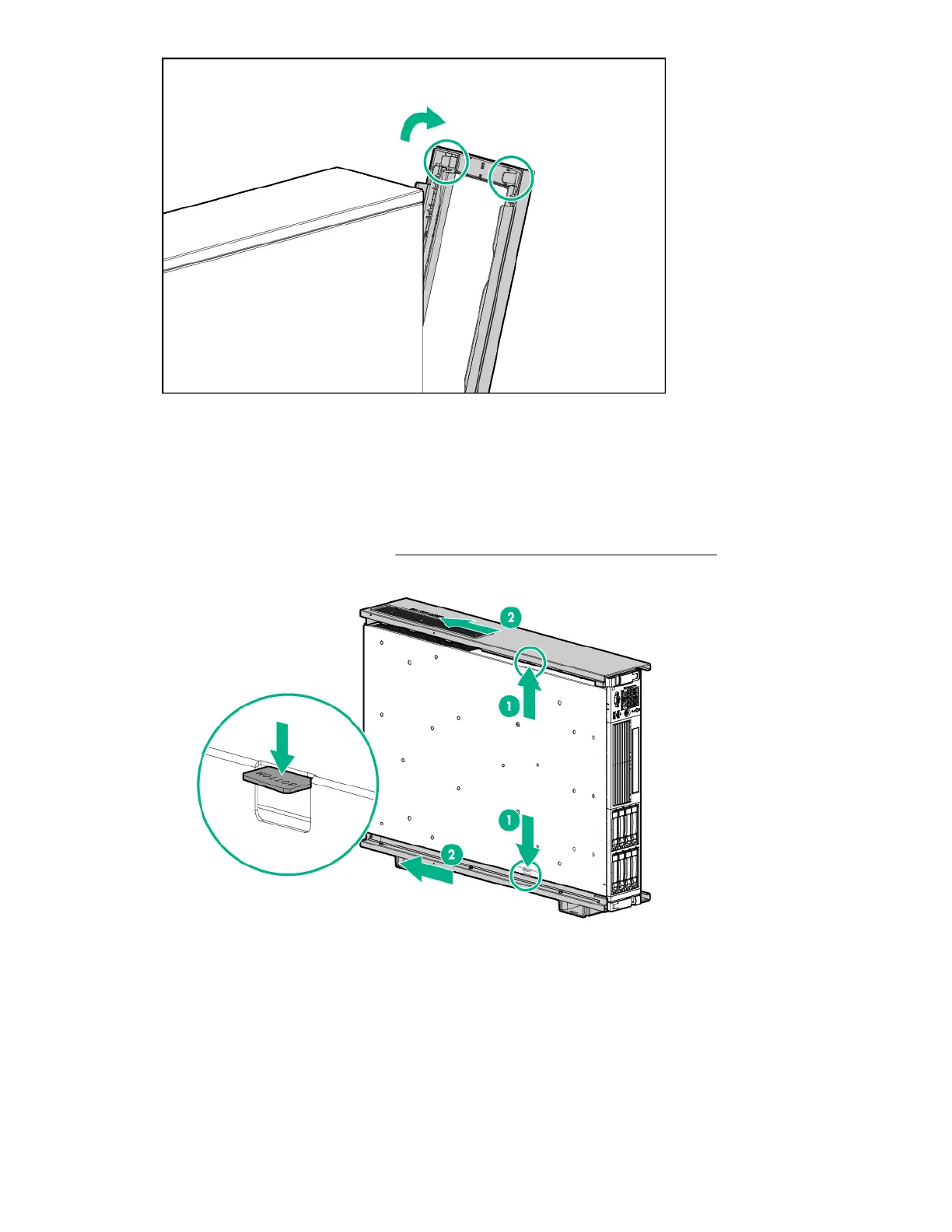

Figure 28: Removing the pedestal top piece
c. Slide the pedestal top piece toward the back of the server to release it from the server.
d. Once the pedestal component has moved about 1/4 inch, the lock releases, and you can release
the tab.
142 Removal and replacement procedures
