HPE Integrity rx2800 i2 series User Manual

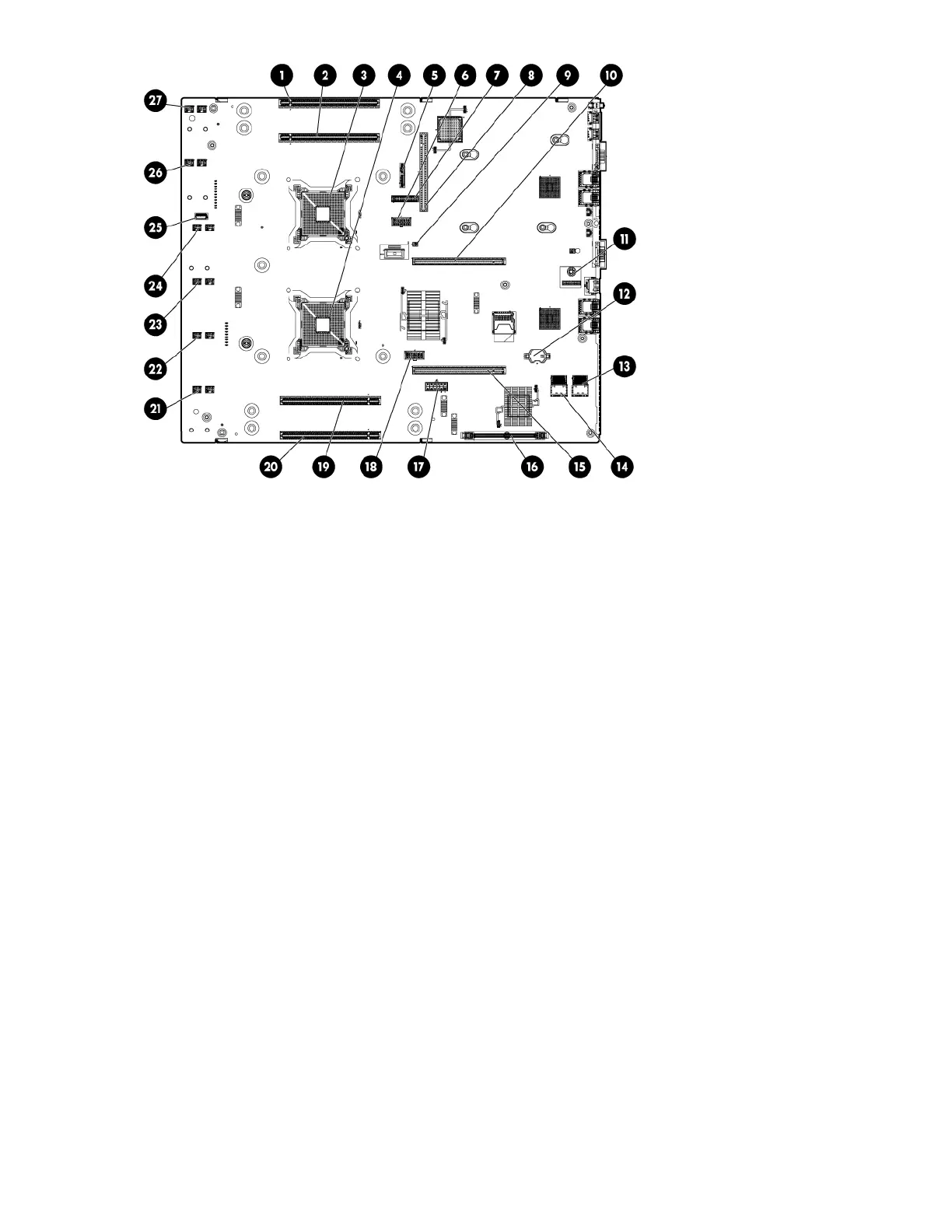

Figure 2: System board components
• Memory expansion board connector 1
• Memory expansion board connector 2
• Processor socket 0
• Processor socket 1
• SATA optical drive connector
• CPU 0 power connector
• Front I/O connector
• Power supply backplane connector
• Intrusion switch connector
• Primary riser connector
• TPM connector
• System battery
• SAS B connector
• SAS A connector
• Secondary riser connector
• SAS cache module connector
• SAS power connector
• CPU 1 power connector
• Memory expansion board connector 3
14 Overview
