CAUTION:
To prevent thermal instability and damage to the server, do not separate the processor module
from the processor heat sink after they have been coupled.
NOTE:
Positive engagement clicking must occur during engaging of the processor heat sink and
processor module onto the socket to ensure proper seating.
7. Secure the heat sink to the processor.

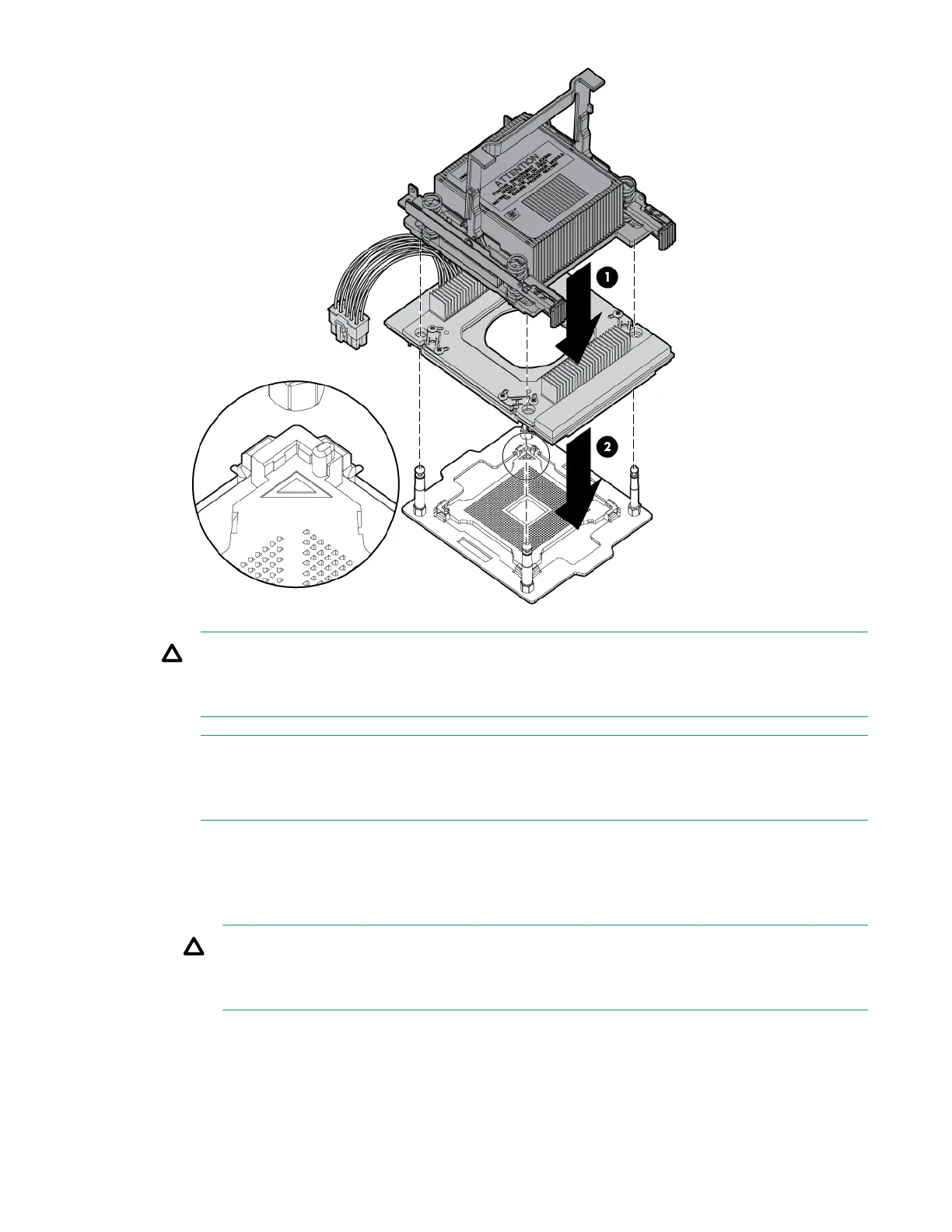

a. Slide both plastic locking tabs into place. See callout 1 in the following figure.
b. Flip the latch down. See callout 2 in the following figure.
CAUTION:
To prevent thermal instability and damage to the server, do not separate the processor
module from the processor heat sink after they have been coupled.
Optional components 73
