HPE StoreVirtual 3200

Removing the fan control card cable assembly
NOTE:
The fan control card cable assembly is between the backplane and fan module.

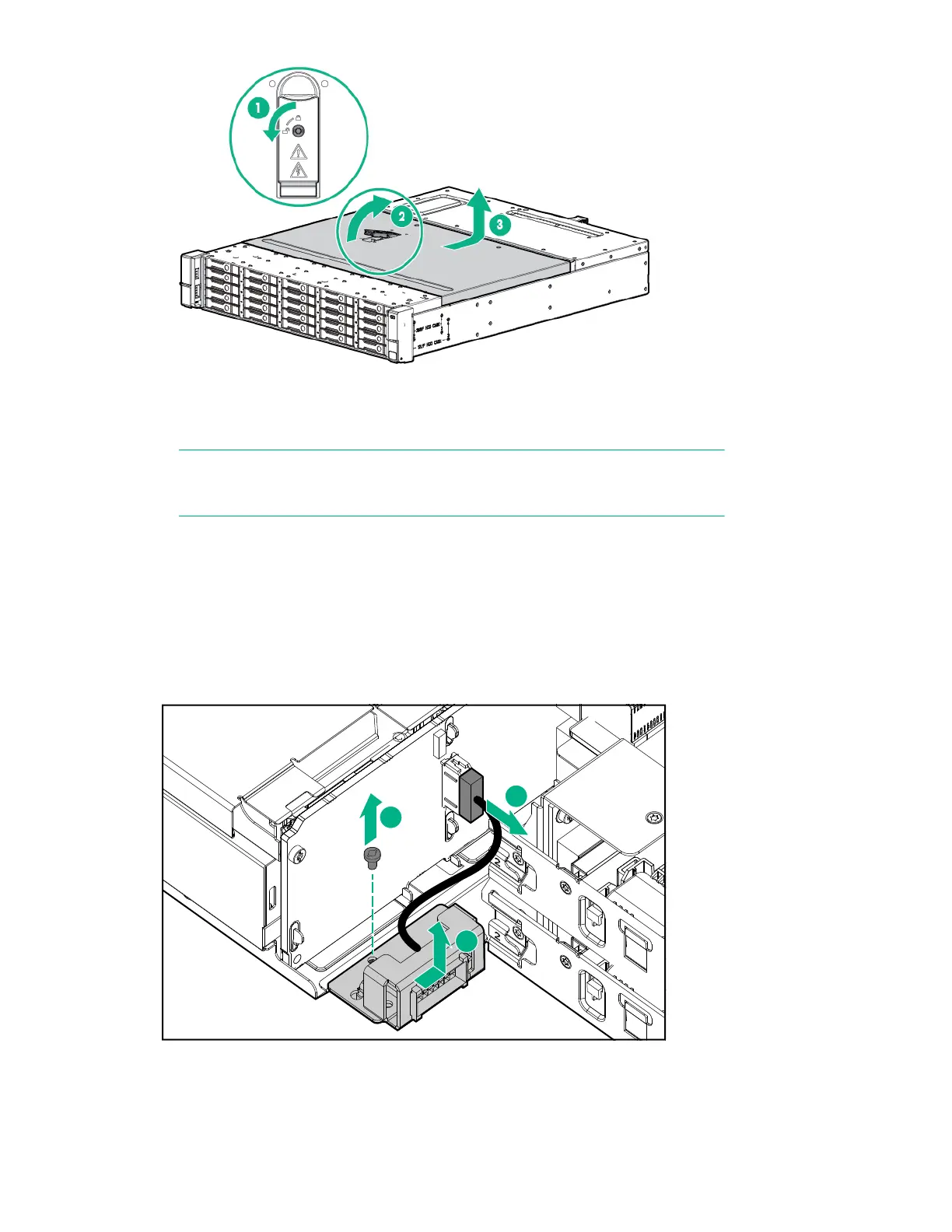

Procedure
1. Remove fan control card cable from the backplane.
2. Remove the T-15 screw.
3. Slide the fan control card bracket sideways to free it from the retaining pins and lift it out.
4.
Remove the fan cable from the bracket.
1
2
3
5. Push the connector release in.
6. Slide the connector to keyed slots and push out.
Removing the fan control card cable assembly 109
