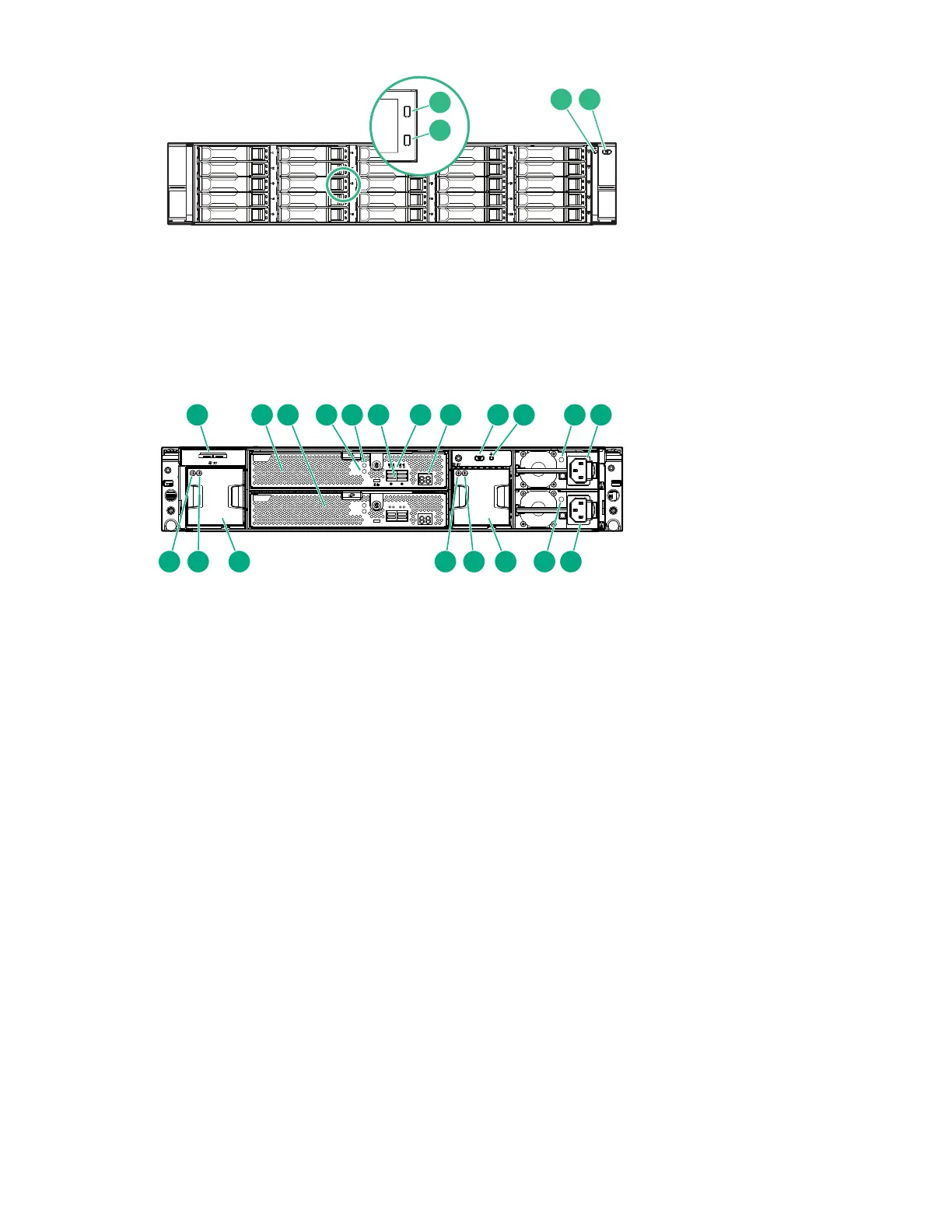

Figure 10: HPE StoreVirtual 3200 SFF front view
1. Disk drive locate UID 3. System status LED
2. Disk drive status LED 4. System locate UID/push button
16 15
1
17 1416
5432 6 7 8 9
15
10
11 13
1211
Figure 11: HPE StoreVirtual 3200 drive enclosure rear view
1. Pullout tab with serial number label 10. System status LED
2. I/O module (slot 1) 11. Power supply status LED
3. I/O module (slot 2) 12. Power supply 1
4. I/O module status LED 13. Power supply 2
5. I/O module locate UID 14. Fan Module 2
6. SAS data ports 15. Fan status LED
7. Data port status LEDs 16. Fan locate UID
8. Seven-segment display 17. Fan Module 1
9. System locate UID/push button
Locating the product serial number on the hardware
It may be necessary to provide the product serial number for support or service.
Locating the product serial number on the hardware 13
