HPE StoreVirtual 3200

1. Controller locate UID 7. Service port (Micro-B USB)
2. Controller status LED 8. Management port (MGMT)
3. Controller fault LED 9. 1 GbE ports
4. USB type A port 10. Data port status LEDs
5. 10 GbE SFP ports 11. SAS data port to optional drive enclosure
(DP-1)
6. Recovery/power button (See Recovery/power
button).
1 2 3 4 5 76 8 9 10 11

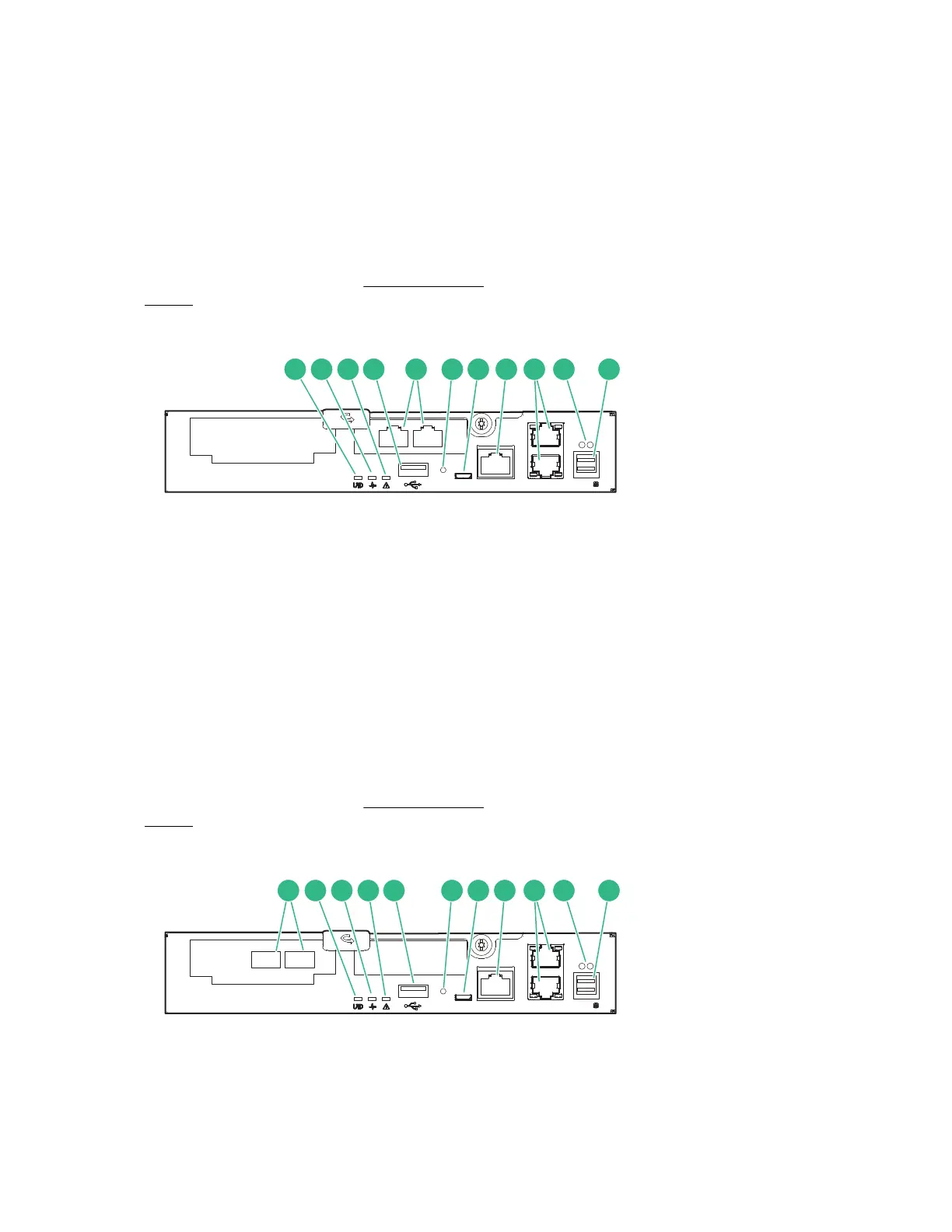

Figure 7: HPE StoreVirtual 3200 Storage 10GBase-T controller module (2 port)
1. Controller locate UID 7. Service port (Micro-B USB)
2. Controller status LED 8. Management port (MGMT)
3. Controller fault LED 9. 1 GbE ports
4. USB type A port 10. Data port status LEDs
5. 10GBase-T ports 11. SAS data port to optional drive enclosure
(DP-1)
6. Recovery/power button (See Recovery/power
button).
2 3 4 51 76 8 9 10 11
Figure 8: HPE StoreVirtual 3200 Storage 8Gb/16 Gb Fibre Channel controller module (2 port)
Product overview 11
