Connecting to one drive enclosure

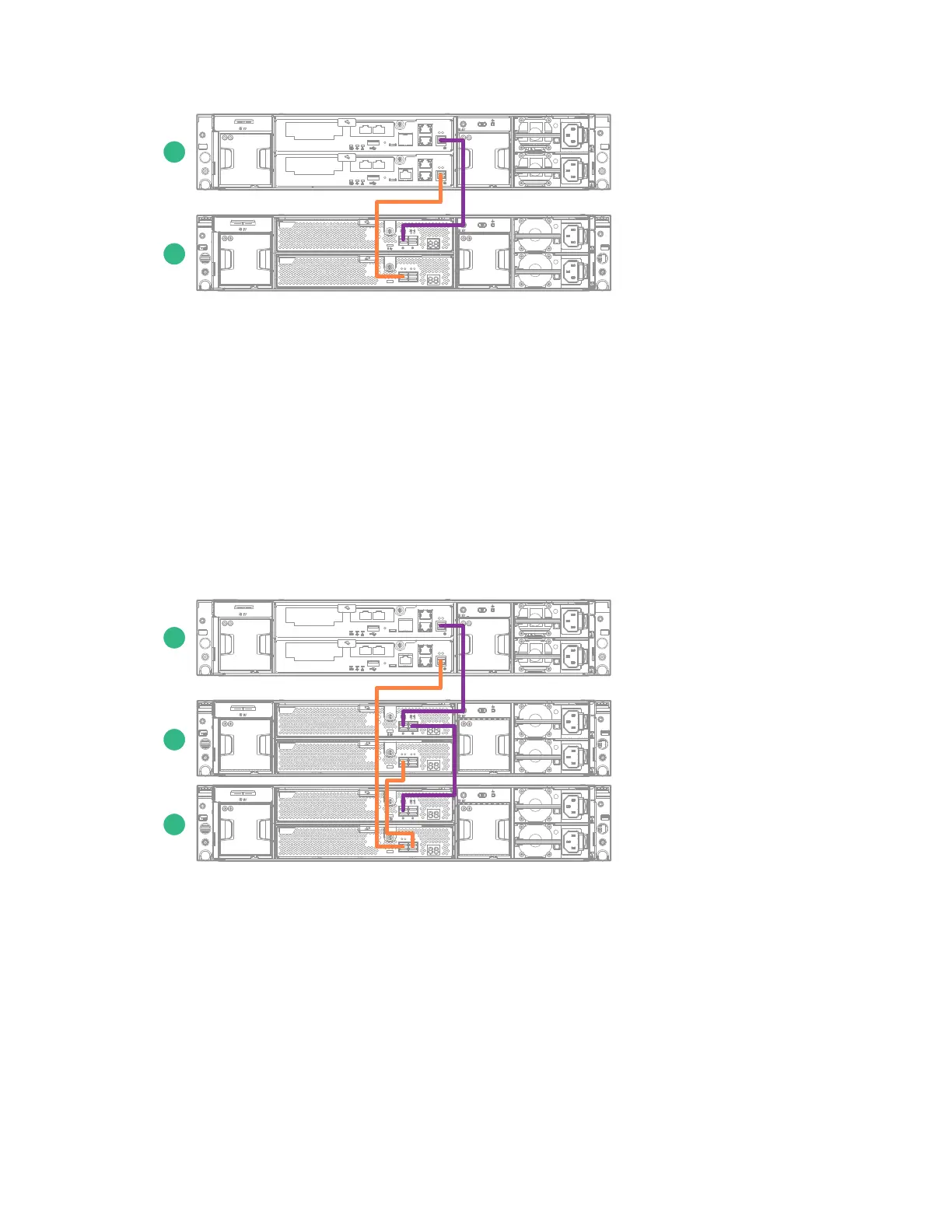

Figure 20: One drive enclosure cabling configuration
1. Array enclosure 2. Drive enclosure
1. Connect DP-1 on the storage controller in slot 1 to DP-1 on the I/O module in slot 1 of the drive
enclosure.
2. Connect DP-1 on the storage controller in slot 2 to DP-1 on the I/O module in slot 2 of the drive
enclosure.
Connecting to two drive enclosures
Figure 21: Two drive enclosure cabling configuration
1. Array enclosure 3. Drive enclosure 2
2. Drive enclosure 1
42 Connecting to one drive enclosure
