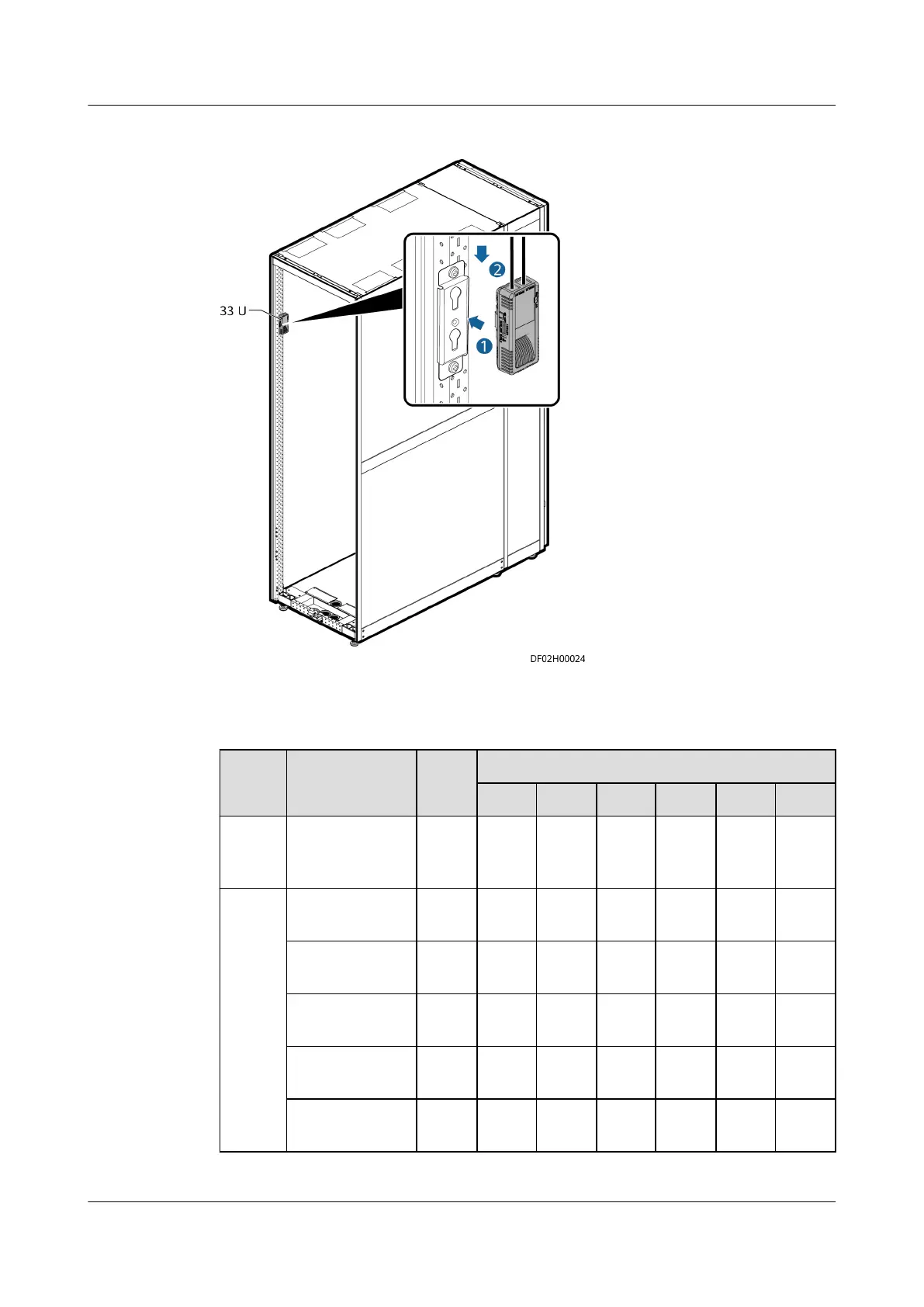

Figure 5-59 Installing a T/H sensor

Step 6 Set the DIP switches of T/H sensors.

Table 5-10 DIP switch setting on a T/H sensor

Locati

Display Name Addr

ess

DIP Switch Sequence No.

1 2 3 4 5 6

Air

return

side

Return air 2

temp/humid

1 ON OFF OFF OFF OFF OFF

Cold

aisle

Cold aisle 1

temp/humid

11 ON ON OFF ON OFF OFF

Cold aisle 2

temp/humid

12 OFF OFF ON ON OFF OFF

Cold aisle 3

temp/humid

13 ON OFF ON ON OFF OFF

Cold aisle 4

temp/humid

14 OFF ON ON ON OFF OFF

Cold aisle 5

temp/humid

15 ON ON ON ON OFF OFF

FusionModule2000 Smart Modular Data Center

Maintenance Guide (Fusion Module Actuator) 5 Parts Replacement
