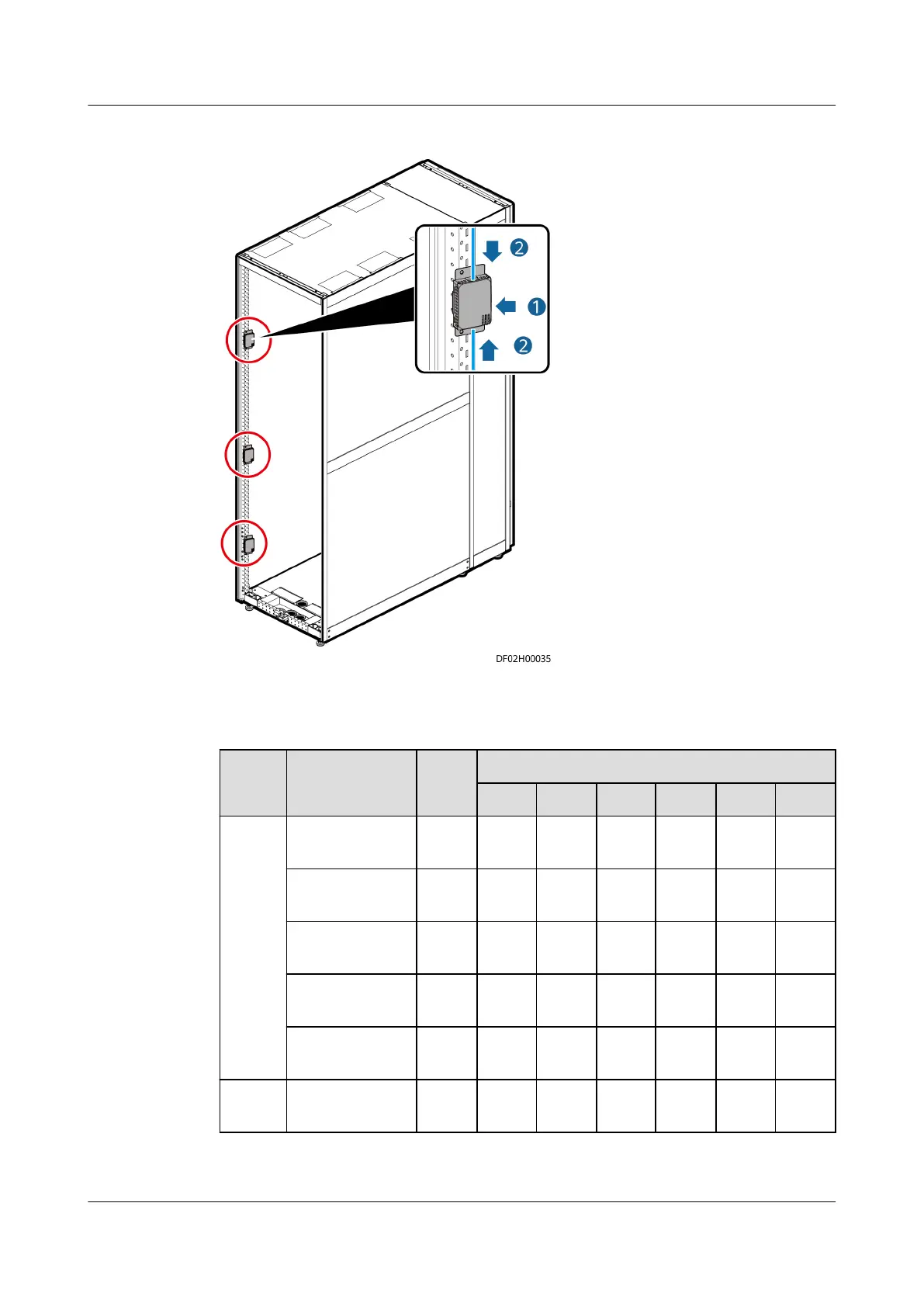

Figure 5-61 Installing a T/H sensor

Step 6 Set the DIP switch on the T/H sensor.

Table 5-11 DIP switch settings on T/H sensors

Locati

Display Name Addr

ess

DIP Switch No.

1 2 3 4 5 6

Cold

aisle

Cold aisle 1

temp/humid

11 ON ON OFF ON OFF OFF

Cold aisle 2

temp/humid

12 OFF OFF ON ON OFF OFF

Cold aisle 3

temp/humid

13 ON OFF ON ON OFF OFF

Cold aisle 4

temp/humid

14 OFF ON ON ON OFF OFF

Cold aisle 5

temp/humid

15 ON ON ON ON OFF OFF

Hot

aisle

Hot aisle 1

temp/humid

21 ON OFF ON OFF ON OFF
