hard disk tray until it is level, and fasten the black screws on the left and right
sides and the white screw on the top.

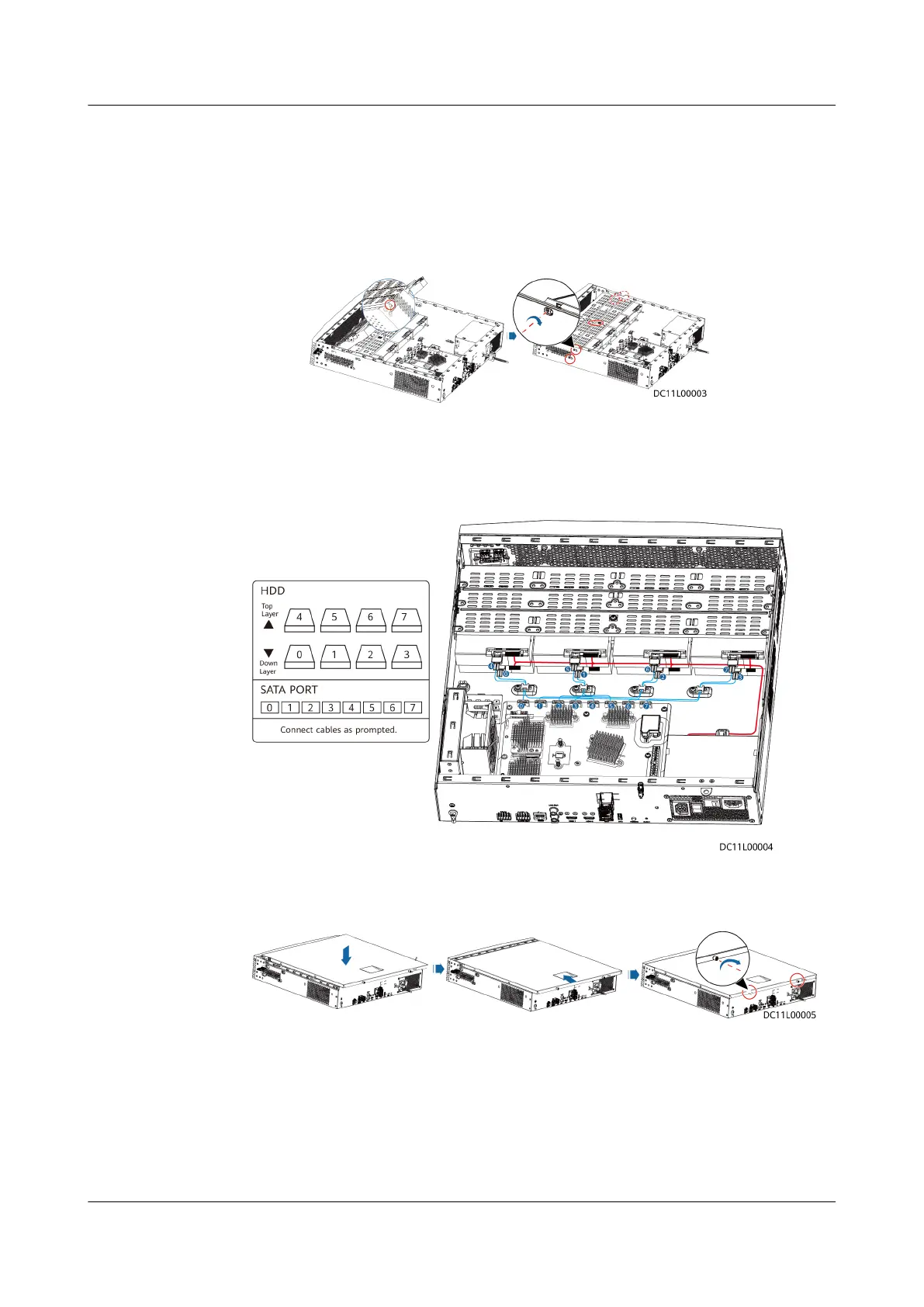

Figure 5-28 Fastening the screw on the panel and the screws on the hard disk
tray
3. Connect data and power cables to hard disks. Connect hard disk cable ports
P0–P3 to hard disks on the lower-layer hard disk tray and ports P4–P7 to hard
disks on the upper-layer.
Figure 5-29 Connecting data and power cables to hard disks
4. Close the chassis cover, and use a PH2 screwdriver to fasten the rear screws.
Figure 5-30 Closing the chassis cover
Step 4 Observe the hard disk indicator to check whether the hard disk works properly.
----End
Follow-up Procedure
If the hard disk works abnormally, contact Huawei technical support.
