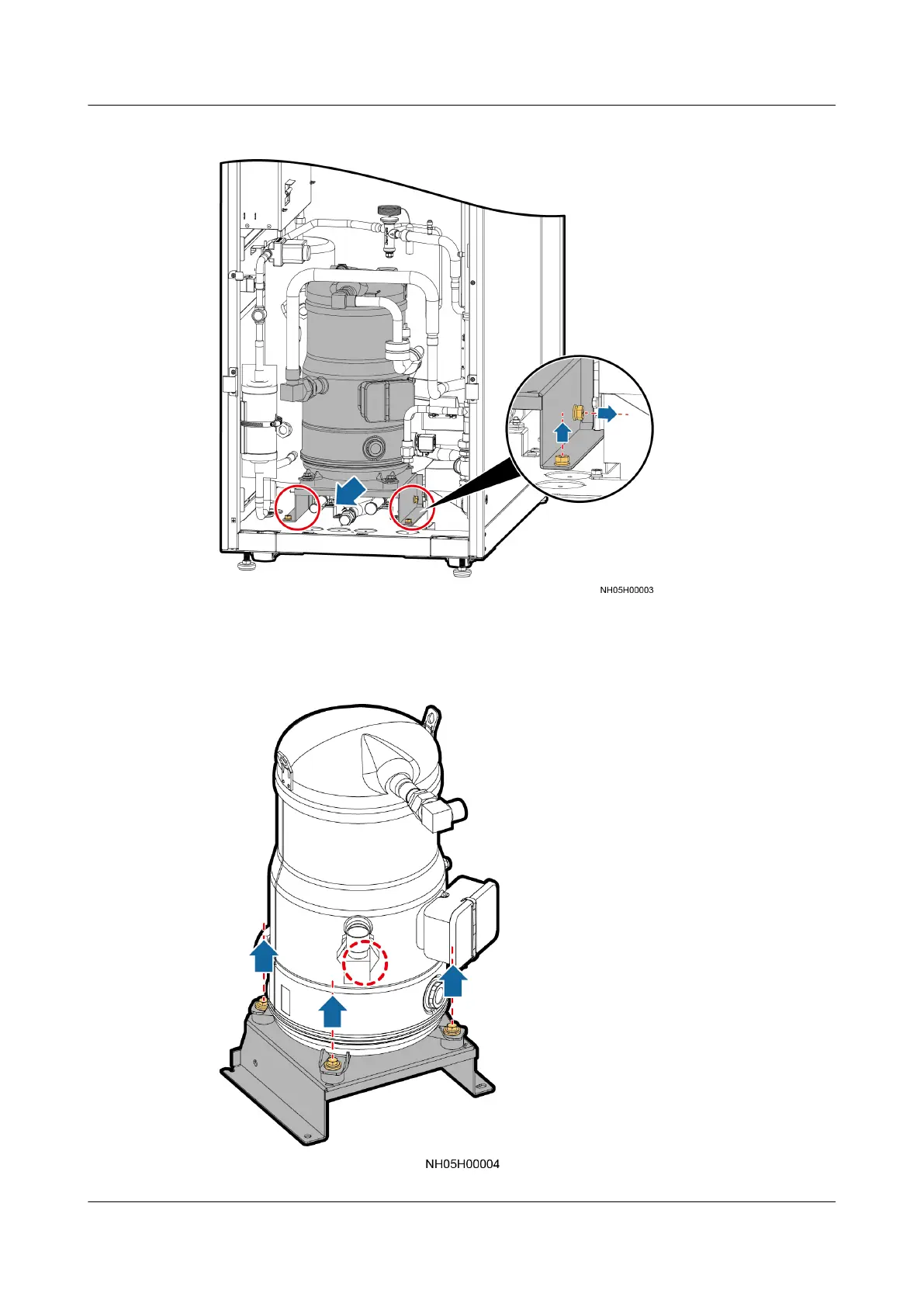

Figure 6-6 Removing the base and compressor
Step 8 Use a 13# solid wrench or socket wrench to remove the four bolts to separate the
compressor and its base, as shown in Figure 6-7.
Figure 6-7 Removing the compressor
NetCol5000-A(025, 035) In-row Air Cooled Smart
Cooling Product
User Manual (600 mm Width) 6 System Operation and Maintenance
Issue 17 (2020-10-22) Copyright © Huawei Technologies Co., Ltd. 209
