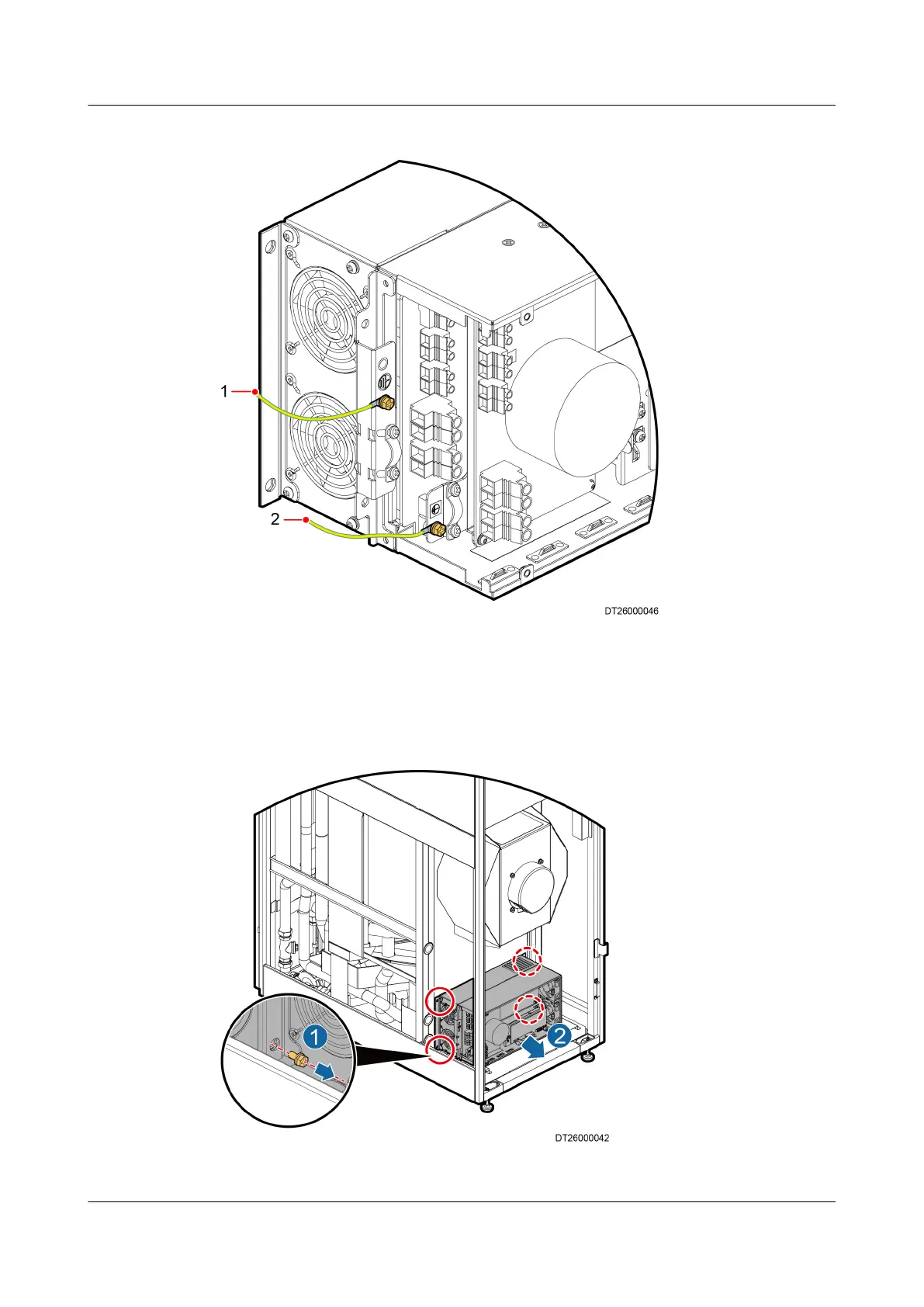

Figure 6-14 Removing ground cables on input and output sides
(1) Ground cables on the output side (2) Ground cables on the input side
Step 7 Remove the screws at the four angles of the drive using a Phillips screwdriver and
move the drive out, as shown in Figure 6-15.
Figure 6-15 Removing the drive
