Huawei S1720 Series Configuration Guide

l SwitchA, SwitchB, SwitchC, and SwitchD are interconnected by running the IS-IS
protocol.
l SwitchA, SwitchB, SwitchC, and SwitchD belong to Area 10.
l SwitchA and SwitchB are Level-1-2 switches. SwitchC is the Level-1 Switch. SwitchD is
the Level-2 Switch.
l It is required to change the DIS priority of the interface to configure SwitchA to a Level-1-2
DIS.

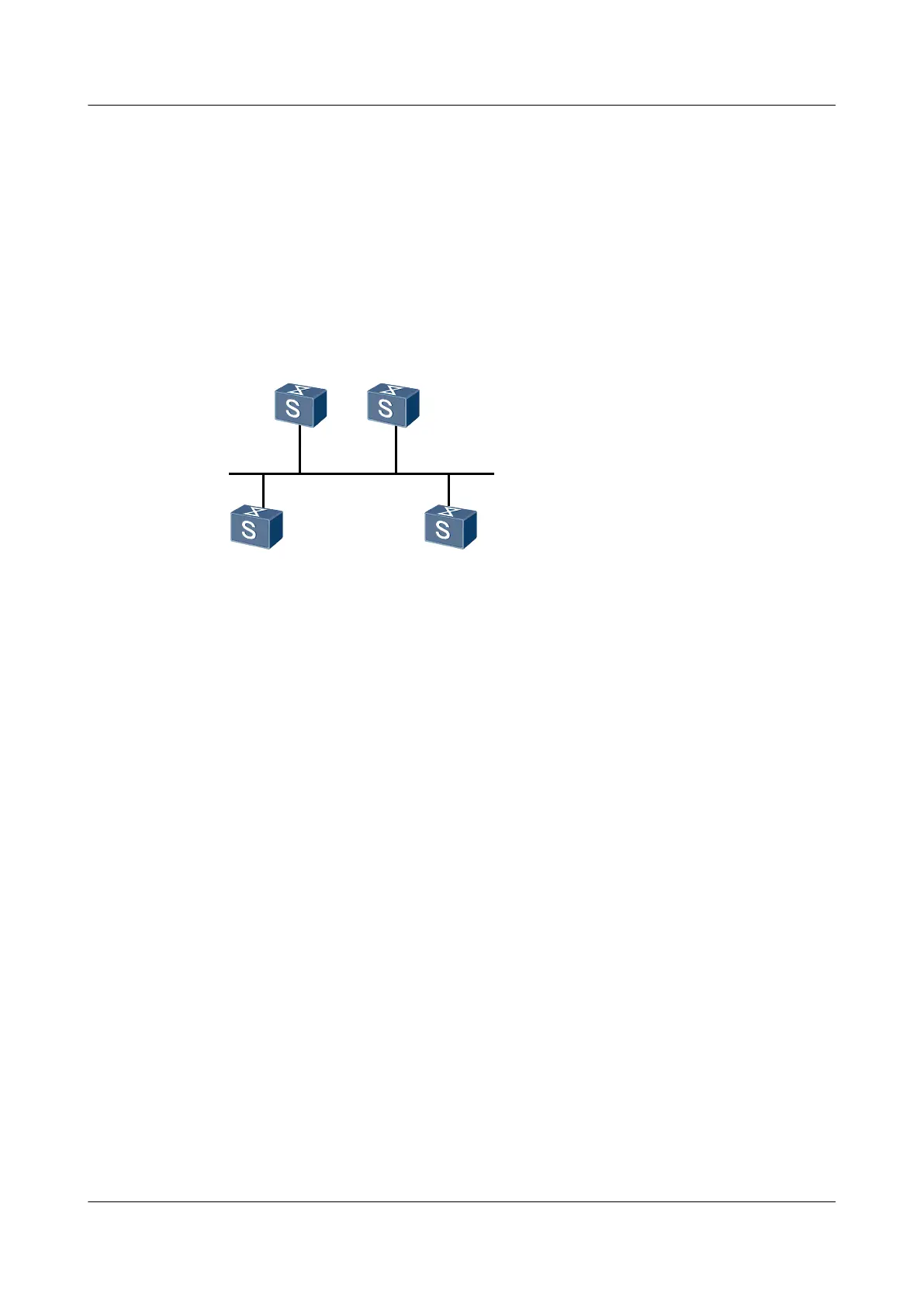

Figure 6-5 Networking diagram for configuring the DIS election of IS-IS
Switch A
Switch B
Switch C Switch D
XGE0/0/1
XGE0/0/1
XGE0/0/1XGE0/0/1
L1/L2
L1/L2
L1
L2
Switch Interface VLANIF Interface IP Address
SwitchA XGE 0/0/1 VLANIF 10 10.1.1.1/24
SwitchB XGE 0/0/1 VLANIF 10 10.1.1.2/24
SwitchC XGE 0/0/1 VLANIF 10 10.1.1.3/24
SwitchD XGE 0/0/1 VLANIF 10 10.1.1.4/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Enable basic IS-IS functions on each Switch so that the Switches can be interconnected.
2. Check information about the IS-IS interface on each Switch with the default priority.
3. Configure the DIS priority on the Switch.
Data Preparation
To complete the configuration, you need the following data:
l VLAN ID of each interface, as shown in Figure 6-5
l IP address of each VLANIF interface, as shown in Figure 6-5
l System ID, level, and area ID of each Switch
– SwitchA: The system ID is 0000.0000.0001; the area ID is 10; the DIS priority is 100;
the level is Level-1.
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 6 IS-IS Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
328
