Huawei S1720 Series Configuration Guide

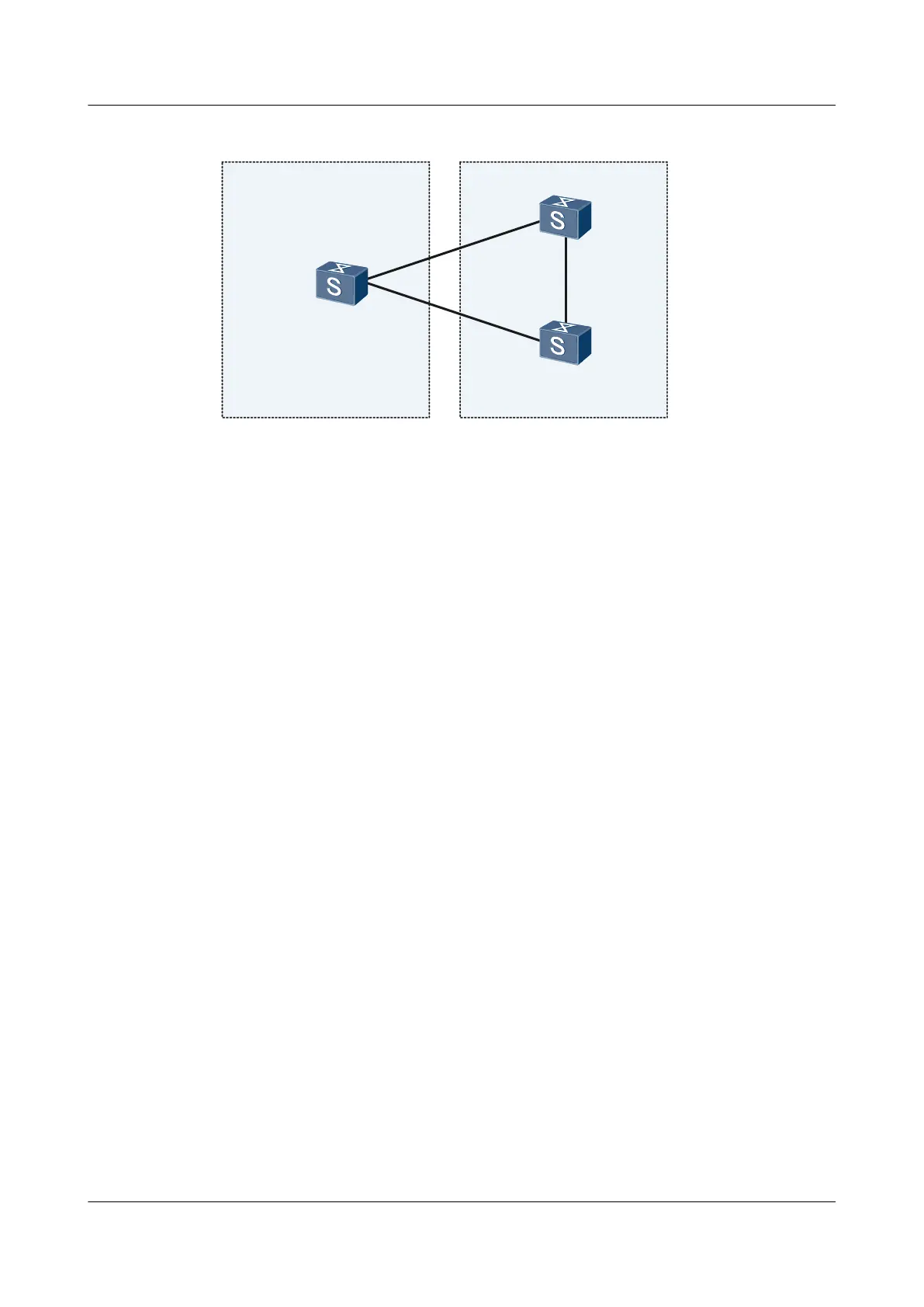

Figure 7-7 Networking diagram of BGP route selection
XGE0/0/2
Switch A
XGE0/0/1
XGE0/0/2
Switch B
AS65008 AS65009
Switch C
XGE0/0/1
XGE0/0/1
XGE0/0/2
Switch Interface VLANIF Interface IP Address
SwitchA XGE 0/0/1 VLANIF 10 200.1.1.2/24
SwitchA XGE 0/0/2 VLANIF 20 200.1.2.2/24
SwitchB XGE 0/0/1 VLANIF 10 200.1.1.1/24
SwitchB XGE 0/0/2 VLANIF 30 9.1.1.1/24
SwitchC XGE 0/0/1 VLANIF 20 200.1.2.1/24
SwitchC XGE 0/0/2 VLANIF 30 9.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Set up EBGP peer relationships between SwitchA and SwitchB, and between SwitchA and
SwitchC. Create an IBGP peer relationship between SwitchB and SwitchC.
2. Configure load balancing and the MED on SwitchA and check the routing table.
Data Preparation
To complete the configuration, you need the following data:
l The VLAN ID of each interface is shown in Figure 7-7.
l The IP address of each VLANIF interface is shown in Figure 7-7.
l The router IDs of SwitchA is 1.1.1.1, the number of the AS where it resides is 65008, and
the number of routes for load balancing is 2.
l The router IDs of SwitchB and SwitchC are 2.2.2.2 and 3.3.3.3, the number of the AS where
they reside is 65008, the default MED of SwitchB is 100.
Configuration Procedure
1. Create a VLAN to which each interface belongs.
The configuration details are not mentioned here.
S6700 Series Ethernet Switches
Configuration Guide - IP Routing 7 BGP Configuration
Issue 01 (2012-03-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
460

Huawei S1720 Series Specifications

General

Operating Humidity	5% to 95% (non-condensing)
Uplink Ports	4 x GE combo ports
VLANs	4094
Power Supply	AC 100-240V, 50/60Hz
Layer 2 Features	VLAN
Layer 3 Features	Static routing
Management	SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to +70°C
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
