NOTE

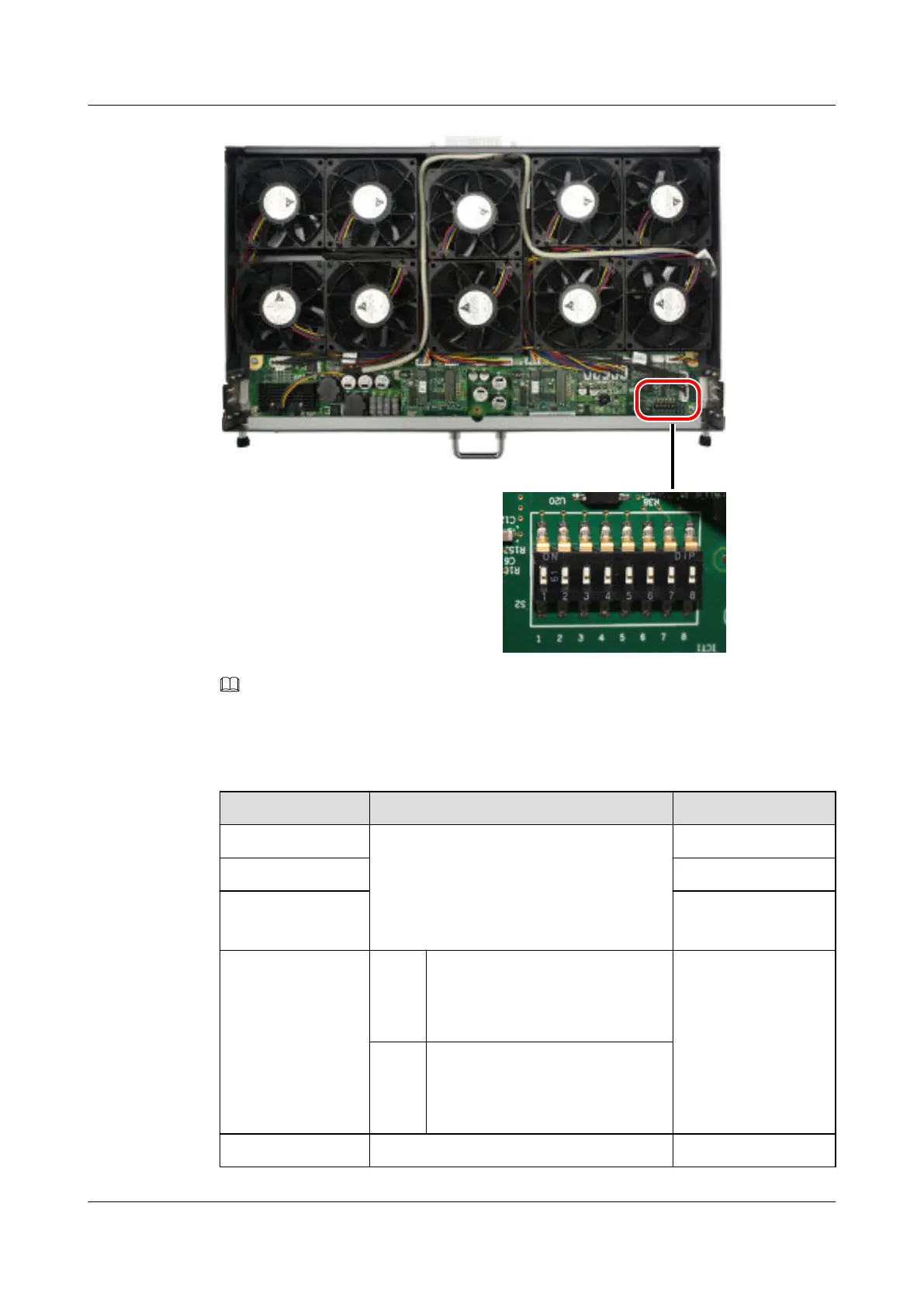

Table 2-22 describes the settings of SW2.

Table 2-22 Settings of SW2

DIP Switch

Indication Default Settings

SW2-1 It is used to set the subnode address of the

fan tray that maps the data configuration.

l ON: The address bit is 0.

l OFF: The address bit is 1.

By default, the address bit is 1.

OFF

SW2-2 ON

SW2-3 ON

SW2-4 ON The baud rate of the

communication between the fan

tray and the control board is 19200

bit/s.

OFF The baud rate of the

communication between the fan

tray and the control board is 9600

bit/s.

SW2-5 It is used to set the quantity of fans. ON

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Hardware Description

2 Subrack and Chassis

Issue 24 (2018-07-30) Huawei Proprietary and Confidential

102
