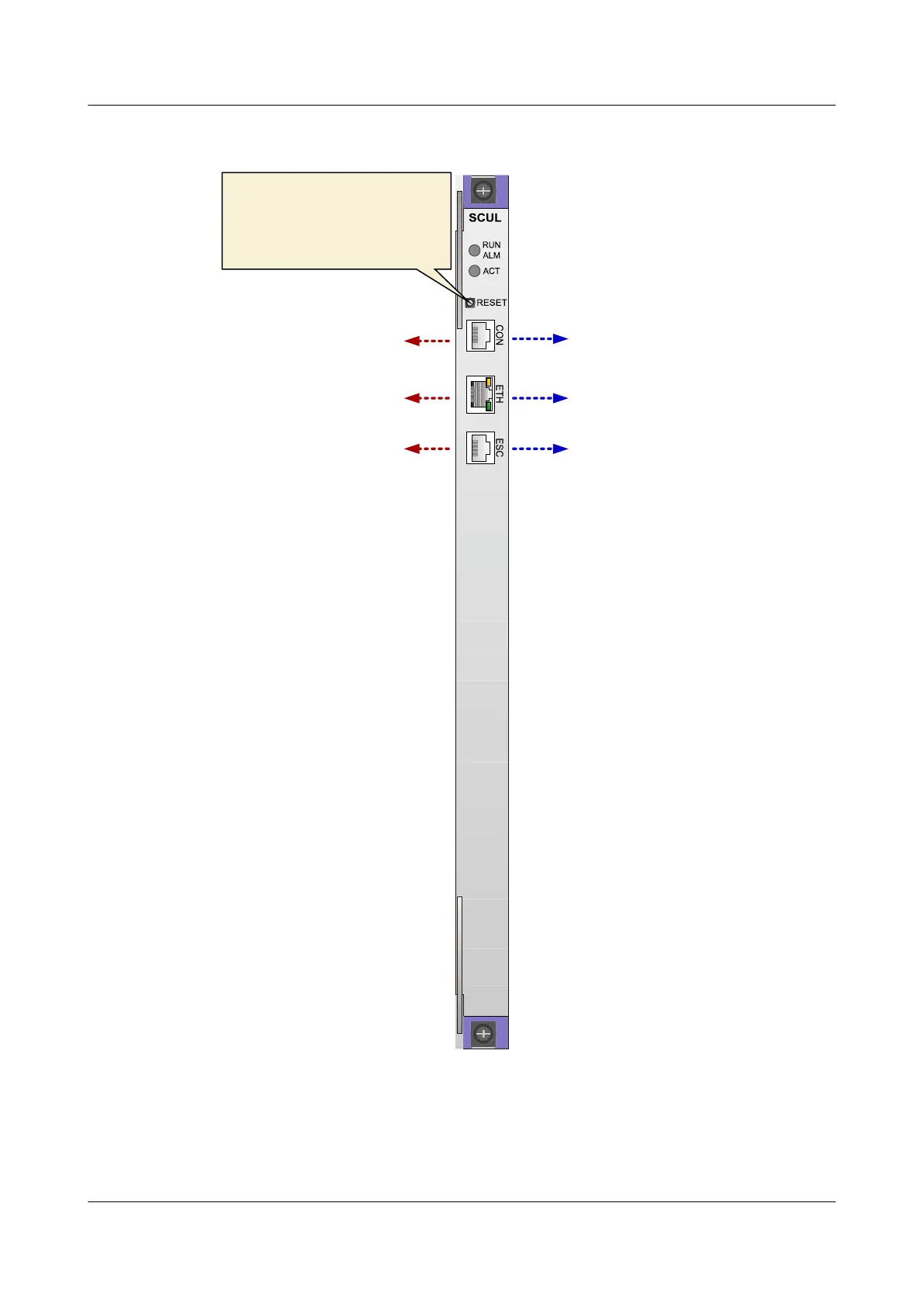

Front Panel Port
This button is used to reset the
board manually. Resetting the
board interrupts the services.
Hence, exercise caution when
using the reset button.
RS-232 serial port
10/100/1000M Base-T
maintenance network port
RS-485 monitoring
serial port
Connect to the Ethernet
port of the maintenance
terminal
Connect to the serial
port of the maintenance
terminal
Connect to the serial
port of the monitored
device
