Huawei SmartAX MA5608T Hardware Description

Functional Specifications
The H801BIUA board supports the following functions:
l Two standard BITS clock inputs and one standard BITS clock output
l Input and output of 2 MHz and E1 signals
l Tracing the input clock source of the two channels of BITS clock or tracing the output
clock source of the control board
l Multiple working modes, such as tracing, holdover, and free-run
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

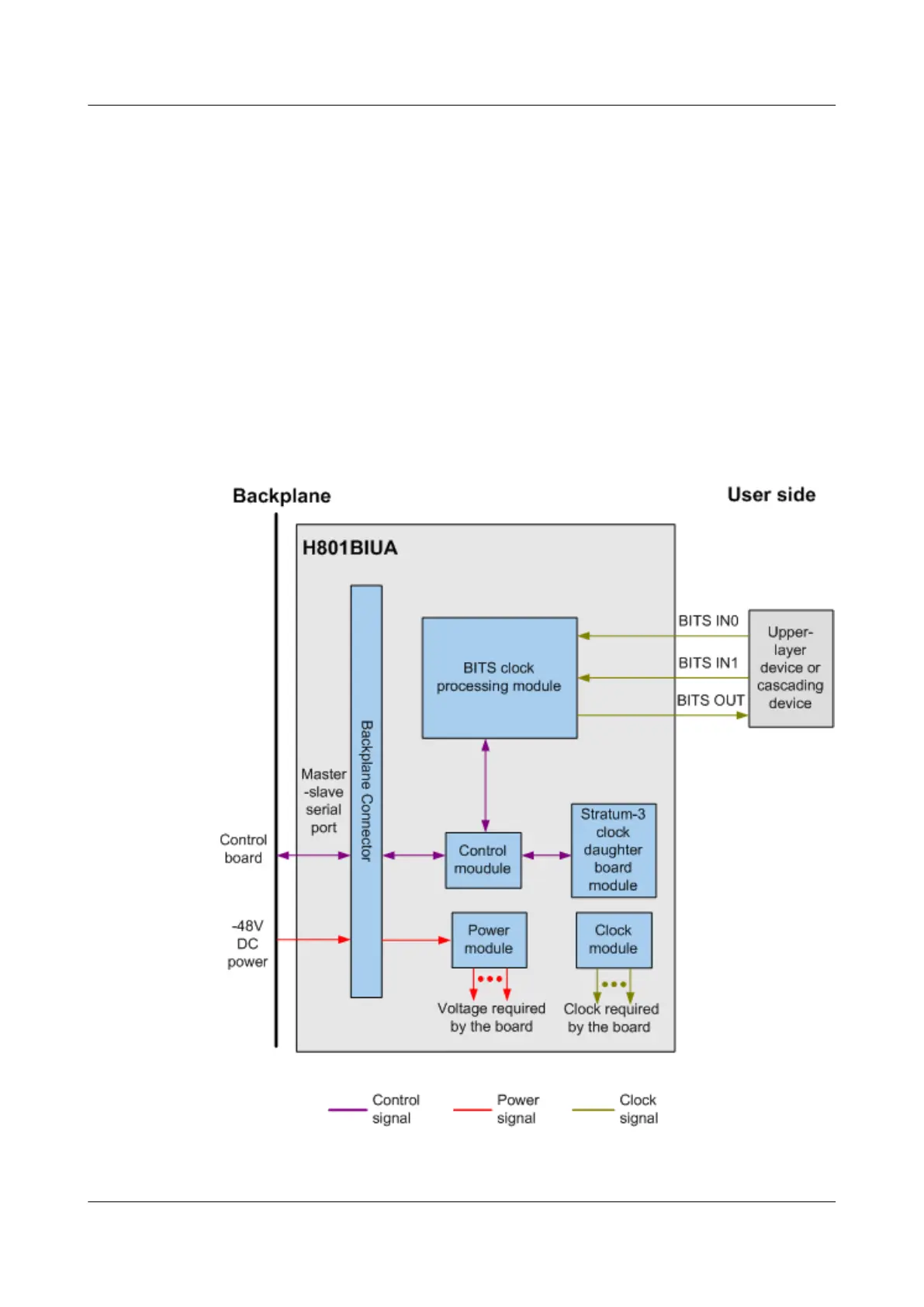

Figure 3-38 Working principle of the H801BIUA board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
297

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
