Huawei SmartAX MA5608T Hardware Description

Working Principle

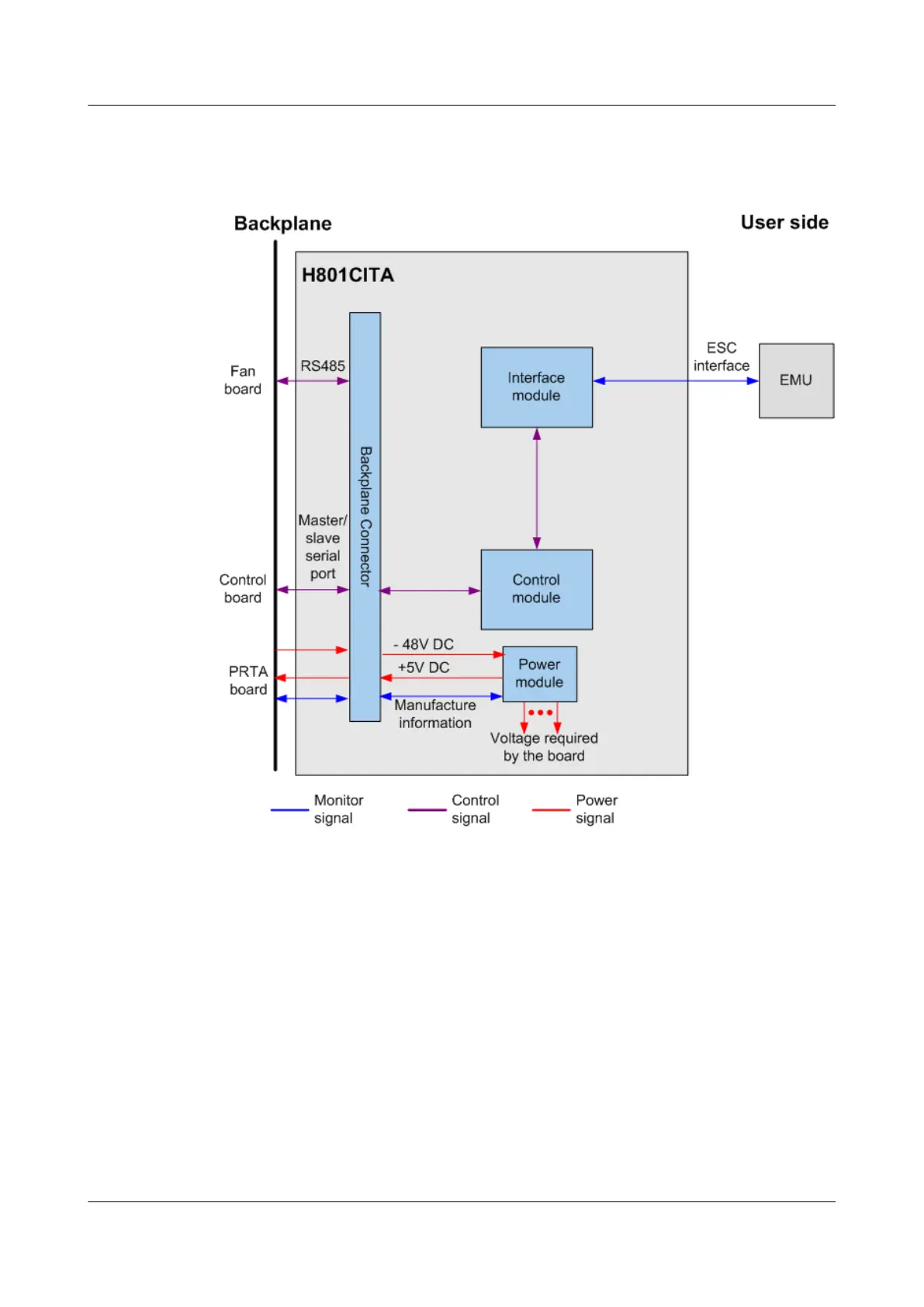

Figure 3-40 Working principle the H801CITA board
The H801CITA board consists of the control module, interface module, and power module.
The basic working principle of the H801CITA is as follows:
l The control module controls the collecting and reporting of signals.
l The interface module provides an ESC port.
l The power module supplies power to other function modules of the H801CITA board
and also provides +5 V DC to the backplane and power board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
301

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
