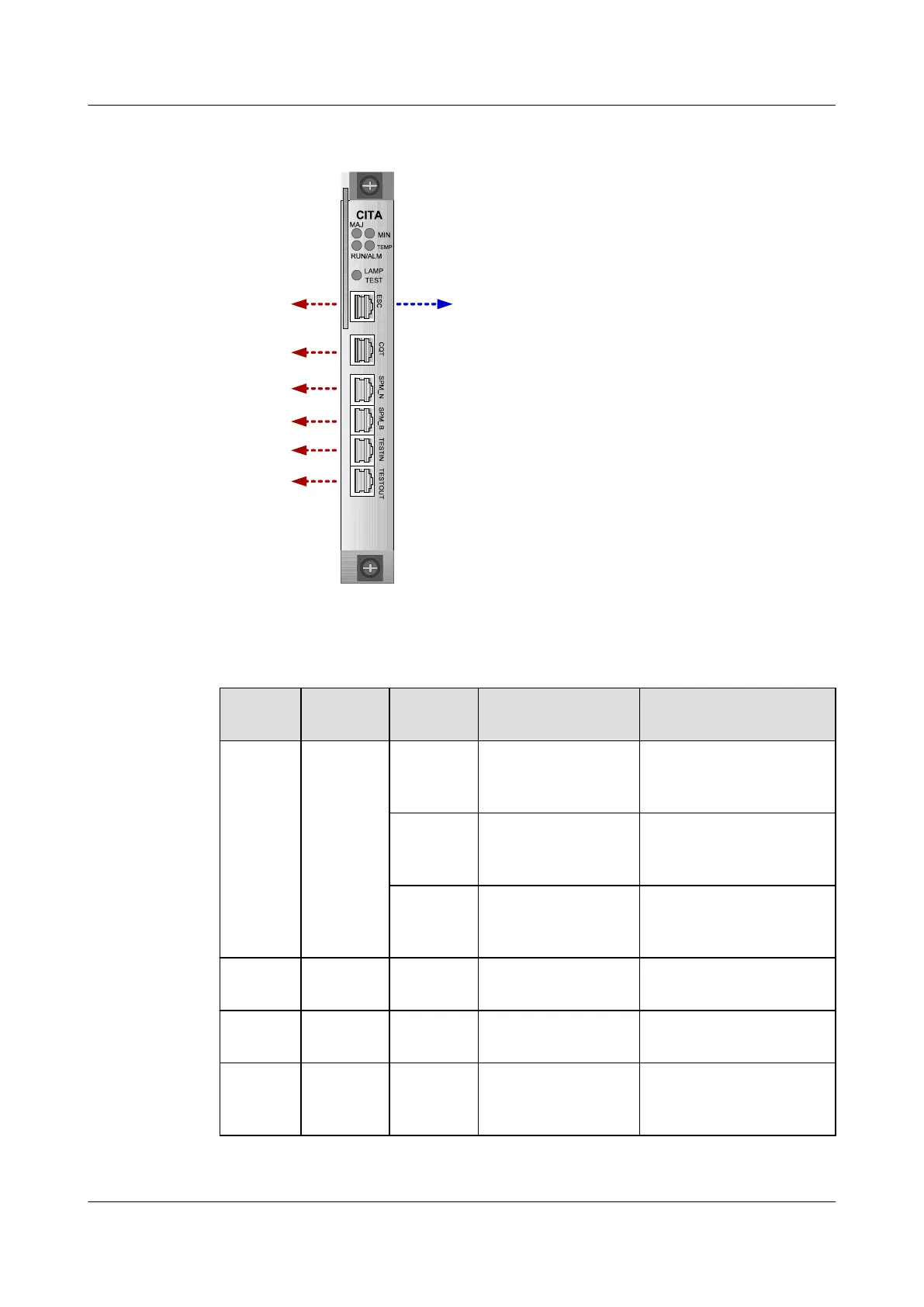

Front Panel Port
Monitored
serial port
Reserved
Connected to the
serial port of the
monitored device
Reserved
Reserved
Reserved
Reserved
Indicator
Indicato
r
Name Color Status Meaning
RUN
ALM
Running
status
indicator
Green Blinking slowly (on
for 1 s and off for 1 s
repeatedly)
The board functions
properly
Green Blinking quickly (on
for 0.25 s and off for
0.25 s repeatedly)
The board is starting up
Red On The board is faulty or its
CPLD software is being
updated
MAJ Alarm
indicators
Red On The system has a major
alarm
MIN Alarm
indicators
Red On The system has a minor
alarm
Temp Temperatu
re alarm
indicator
Red On The system temperature
exceeds the preset
threshold
