Huawei SmartAX MA5608T Hardware Description

l One -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
l Filtering and current-limiting for the power input port
l Under-voltage detection, detection of whether the input power exists, and fault detection
l Combined reporting of the protection alarm and board online signal
l ALARM indicator
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

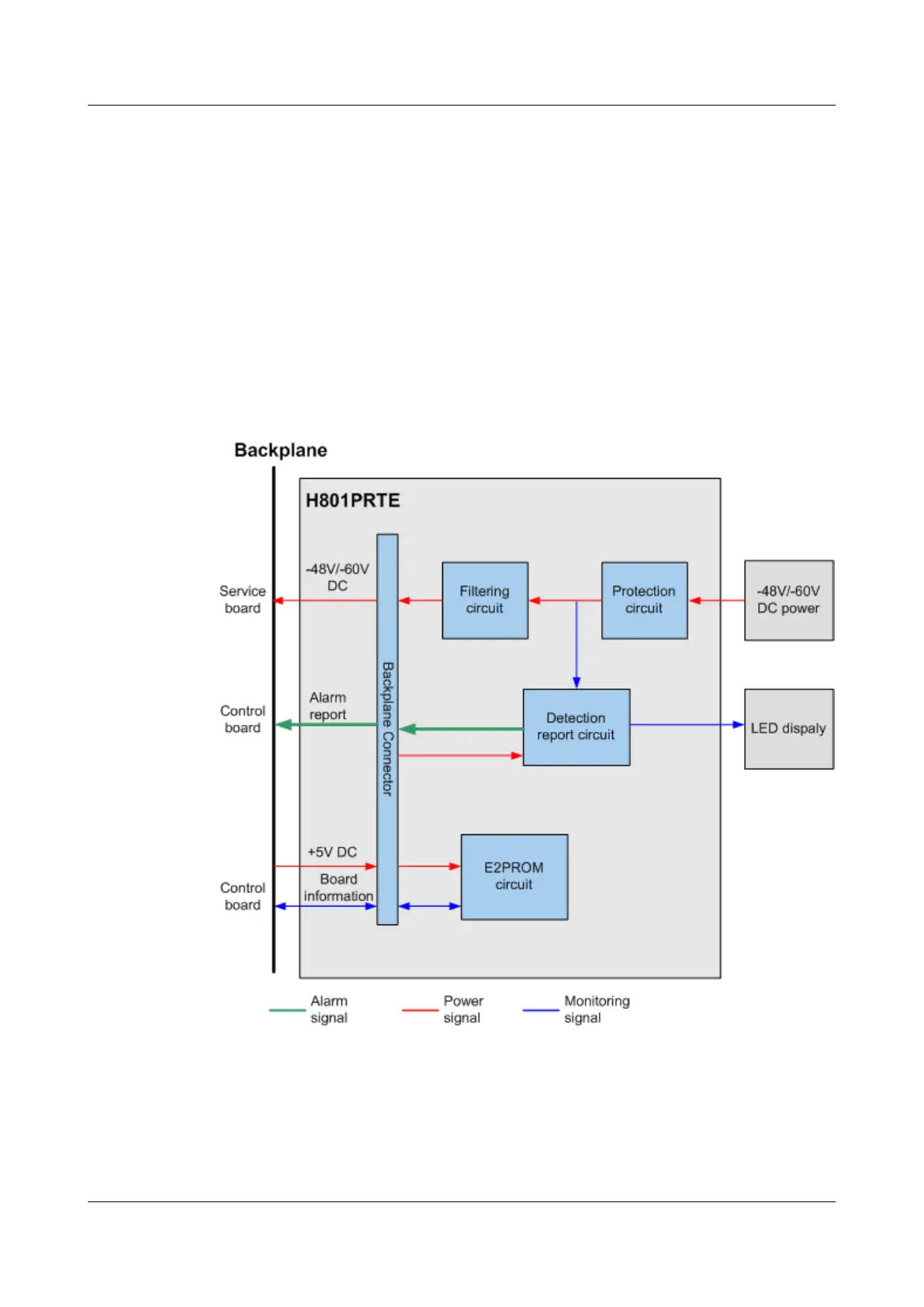

Figure 3-45 Working principle of the H801PRTE board
The basic working principle of the H801PRTE board is as follows:
l The H801PRTE board has a 3V3 power connector to lead a channel of -48 V or -60 V
power supply. After passing the protection circuit and the filtering circuit, the power
supply is output to the backplane and supplies power for other boards in the subrack.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
313

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
