Huawei SmartAX MA5608T Hardware Description

Functional Specifications
The H801MPWD board supports the following functions and specifications:
l Input AC voltage: -100 V to -240 V
l Input AC frequency: 50 Hz to 60 Hz
l Single-phase three-wire AC power input
l Connection to battery backup power (-48V DC)
l Rated output power: 400 W
l Alarm monitoring
l Battery low voltage disconnection; charge and discharge management of storage
batteries
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

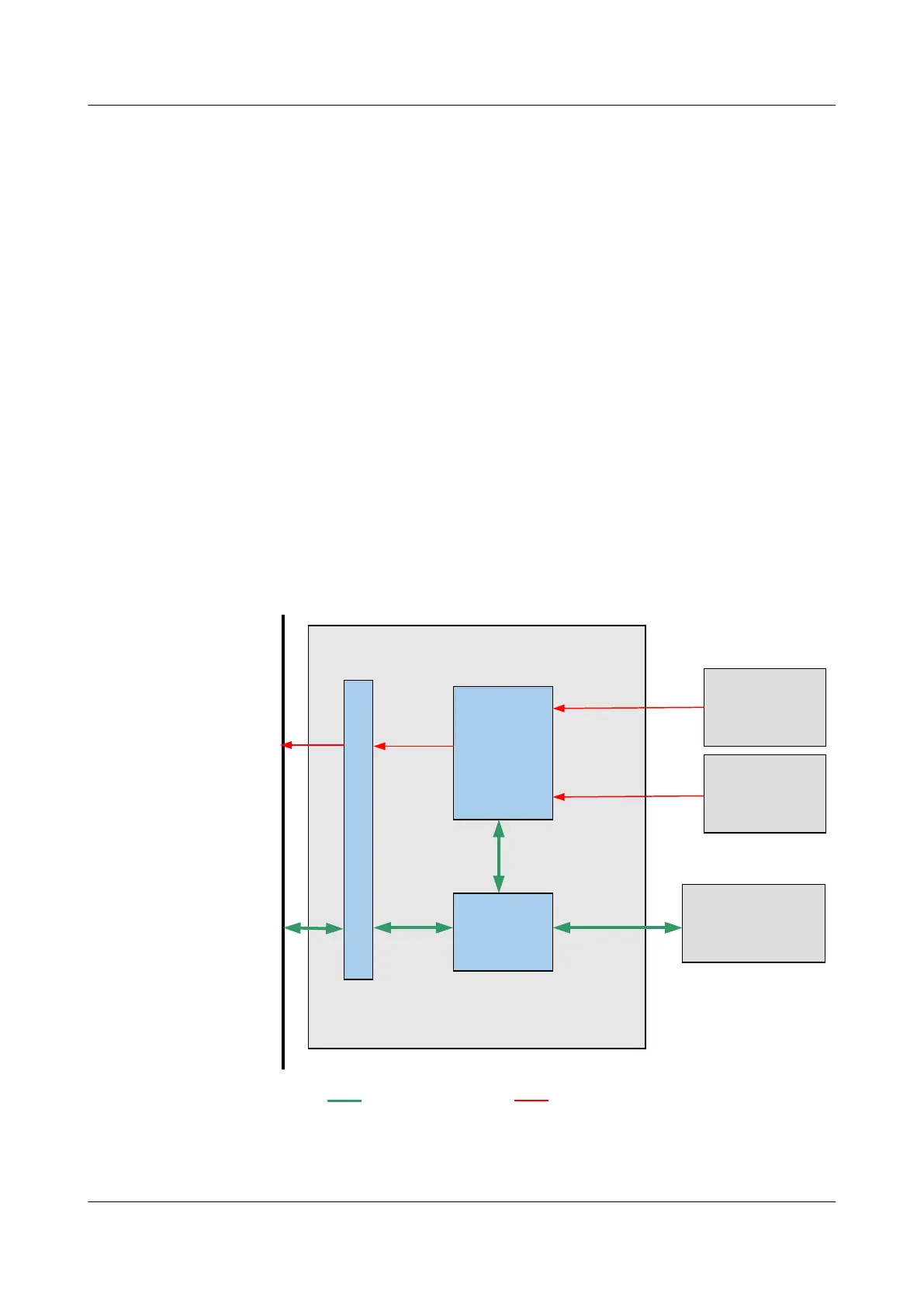

Figure 3-48 Working principle of the H801MPWD board
H801MPWD
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Control
board/
Service
board
AC input terminal
(-100 V to -240 V)
Backplane
User side
Power
signal
AC power and
battery input
board
Service
signal
Monitoring
unit
Battery input
terminal
(-48V DC)
Port for battery
temperature sensor
Control
board
-48V DC
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
319

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
